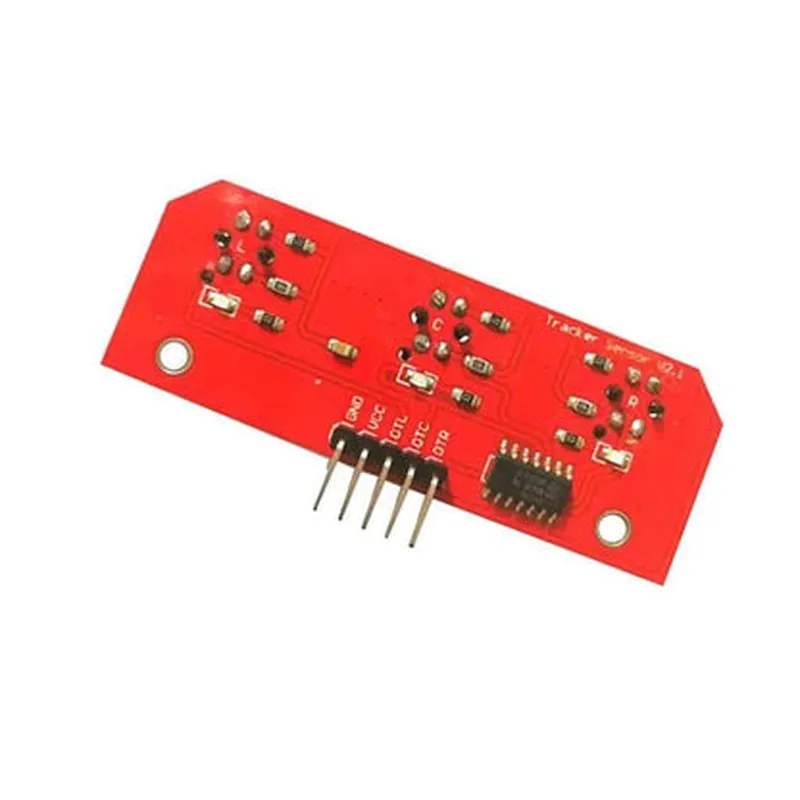

Description: 1. Component Overview: The 3 Channel IR Infrared CTRT5000 Line Detection Module is an advanced sensor designed to detect and follow infrared lines, making it suitable for various automation applications, robotic systems, and interactive installations. 2. Number of Channels: This module comes with three separate channels that can independently detect different lines, offering greater flexibility for complex setups. 3. Detecting Lines: The CTRT5000 employs a sophisticated infrared sensing technology to accurately and reliably identify black or white lines on various surfaces under diverse lighting conditions. 4. Connectivity & Power: The module includes a built-in voltage regulator, which supports input voltages ranging from 4V to 28V. It also offers multiple interfaces including TTL level outputs, UART communication, and I²C bus for easy integration with microcontrollers and other electronics. 5. Sensing Distance: With a sensing distance of up to 10 cm, this module can effectively
| Specification | Details |
|---|---|
| Operating Voltage | DC 5V (Typical) |
| Current Consumption | ≤30mA (Typical) |
| Output Type | Digital Output (TTL/CMOS compatible) |
| Detection Mode | Line Detection (3 channels) |
| Infrared LEDs | 3 x IR LEDs (Red or Clear depending on the module version) |
| IR Emission Angle | ±20° |
| Line Detection Distance | Up to 50cm (depending on the environment and line contrast) |
| Working Temperature | -10°C to +60°C (Operating temperature range) |
| Storage Temperature | -30°C to +80°C (Storage temperature range) |
| Dimensions | 40mm x 25mm x 15mm (Typical depending on the module version and PCB layout) |
| Weight | Approximately 20g (Typical) |
