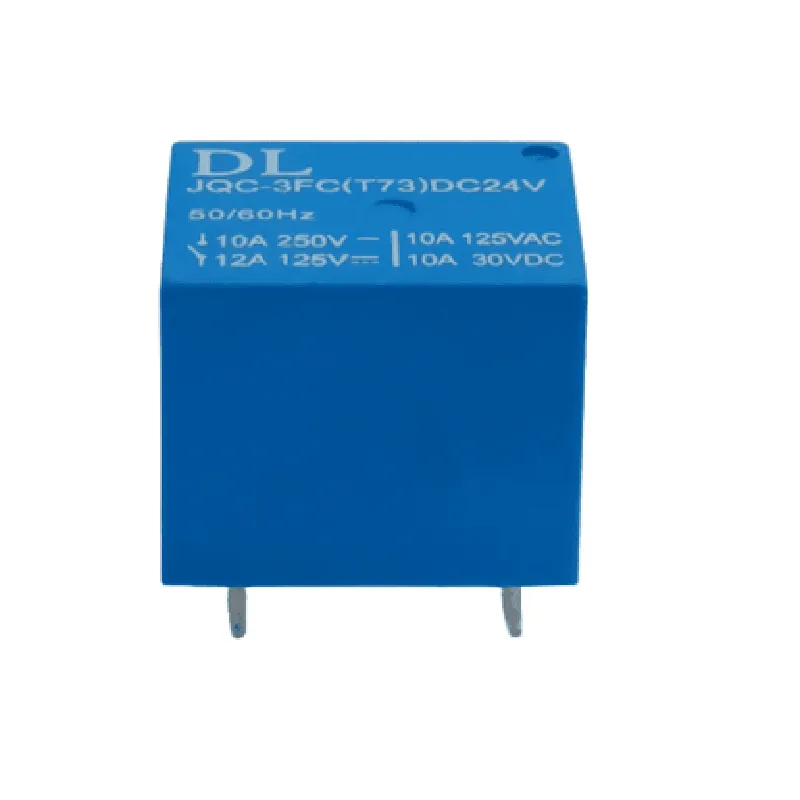

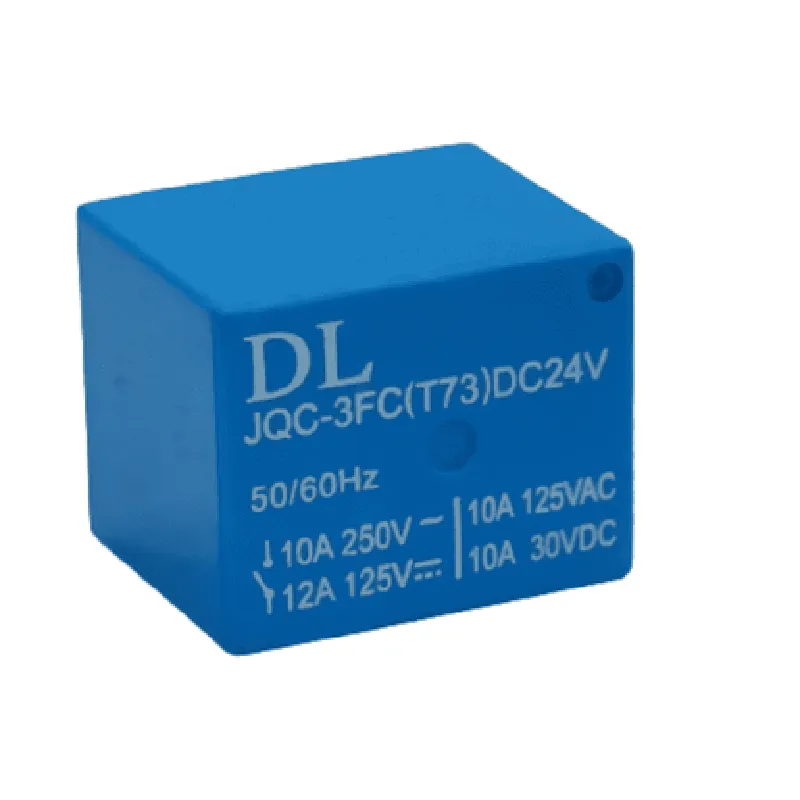

24V Relay Cube
24V Relay Cube
24V Relay Cube
24V Relay Cube

24V Relay Cube

This product is not available in your location yet

Description: 1. The 24V Relay Cube is a compact and versatile relay module designed for use in Internet of Things (IoT) projects and automation systems. It operates on a 24V DC power supply. 2. Relay Rating: Each relay can handle up to 10A at 24V, making it suitable for controlling various loads such as lights, pumps, motors, or heating elements. The Relay Cube features four independently controlled relays, expanding the number of controllable devices in a project. 3. Opto-isolated Design: This design ensures the safety of both the control circuit and the load circuit by maintaining electrical separation between them, preventing potential damage or interference from voltage spikes. 4. Quiet Operation: The 24V Relay Cube provides silent operation with no audible click sounds during switching, which is essential for stealthy automation projects and minimizes any disturbances in the environment. 5. Compact Size: Measuring just 68mm x 51mm x 30mm, this relay module is perfect for space-constrained

Specification Details
Operating Voltage 24 V DC compatible with 12-48 V DC
Relay Type SPDT (Single Pole Double Throw)
Number of Relays 8 x independent relays
Input Current 100 mA maximum
Switching Frequency Up to 10 kHz
Coil Power Consumption 0.5 W per relay
Contact Capacity 16 A @ 250 V AC 30 V DC
Isolation Voltage 3000 V DC between relays and inputs
Thermal Protection Automatic reset
Dimensions 100 x 60 x 20 mm (L x W x H)
Mounting Options DIN Rail or Panel Mount
Certifications UL CE RoHS compliant
