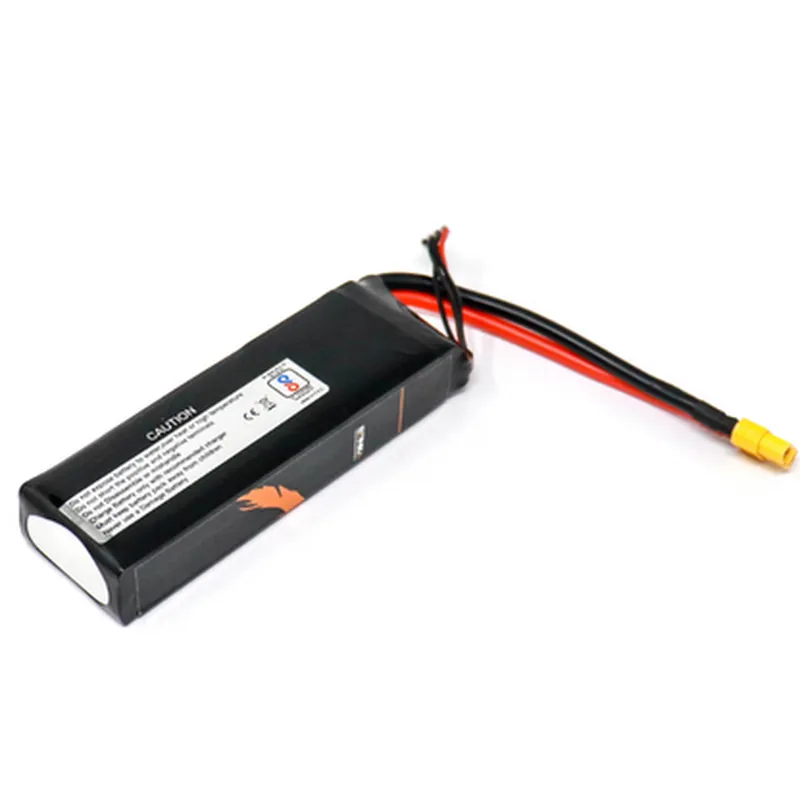

Description: 1. Capacity: The Bonka 11.1v 4200mAh LiPo battery delivers a significant energy storage capacity that is ideal for powering various IoT devices and projects requiring high power density. 2. Voltage: With a nominal voltage of 11.1 volts, this 3S1P (three series one parallel) battery provides a stable power source for most mid-to-high voltage IoT applications. 3. Capacity Rating: The high discharge rate of 35C means the battery can deliver up to 4200mAh x 35 = 147,000mA (147 Amps) of current, enabling fast charging and powering demanding IoT devices or systems. 4. Size and Weight: Weighing in at approximately 496g with dimensions of 128mm x 63mm x 38mm, this battery offers a compact form factor for space-constrained IoT projects while maintaining a high energy capacity. 5. Safety Features: Built-in protection circuits include overcharge, overdischarge, short circuit, and thermal protection to ensure safe operation under various conditions, reducing the risk of damage or accidents.
| Specification | Details |
|---|---|
| Voltage | 11.1V (nominal) 14.8V (max) |
| Capacity | 4200mAh (minimum) 4500mAh (maximum) |
| C-Rating | 35C (maximum continuous discharge rate) |
| Cell Configuration | 3S1P (3 cells in series 1 pack) |
| Chemistry | LiPo (Lithium Polymer) |
| Discharge Type | CC-CV (constant current constant voltage) |
| Temperature Range | -20°C to +60°C (operation) -40°C to +80°C (storage) |
| Weight | 420g (approximate) |
| Dimensions | 144mm x 67mm x 19mm (LxWxH) |
