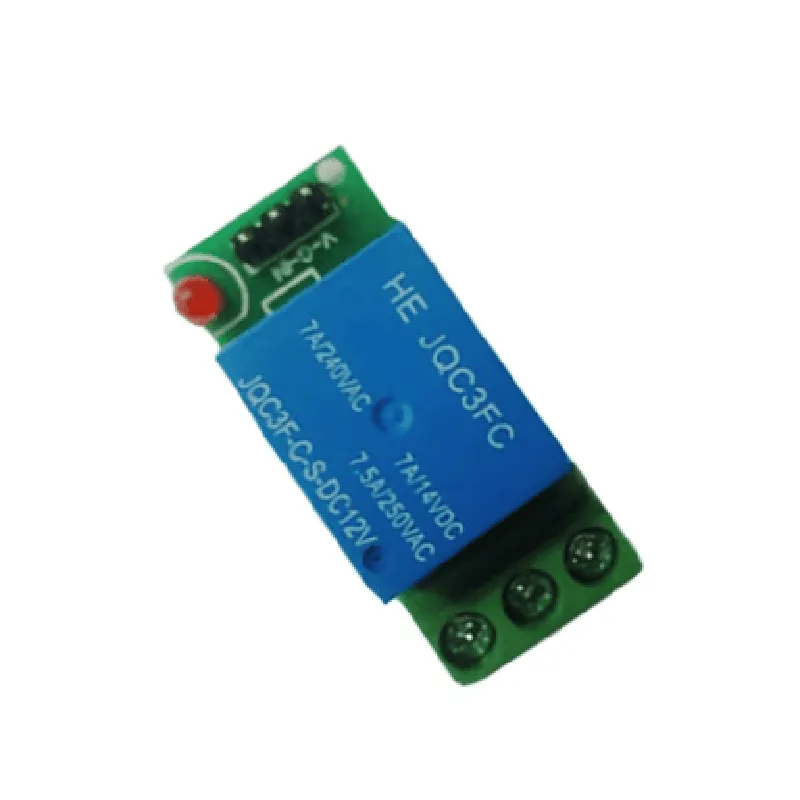

Description: 1. The 1-CH 12V Relay Board is a robust electronic component designed to switch high voltage and current circuits remotely using low voltage signals. 2. Key Feature: It includes one normally open (NO) relay with 12V coil voltage and can handle up to 10A contact current and 50VAC/250VAC maximum switching voltage. 3. Versatility: Suitable for a wide range of applications, such as controlling lights, appliances, pumps, solenoids, or other devices that require high power switching, either in industrial automation or home projects. 4. Relay Control: It can be operated manually or remotely using various methods like digital inputs from microcontrollers, transistors, or optocouplers. 5. Safety: The board features an LED indicator to show the status of the relay and includes a flyback diode to protect against inductive loads' back EMF. 6. Easy Integration: Offers multiple mounting options, including holes for PCB mounting or through-hole terminals, making it easy to integrate into variou
| Specification | Details |
|---|---|
| Voltage Input | 12V DC (recommended) |
| Relay Type | Single Pole Double Throw (SPDT) |
| Load Current | Up to 10A (AC) or 8A (DC) |
| Switching Time | ≤1ms (on/off cycle) |
| Power Consumption | ≤0.5W (standby mode) |
| Dimensions | 50mm x 30mm x 15mm |
| Material | High-quality FR4 PCB with gold plating |
| Operating Temp | -10°C to +60°C (storage: -20°C to +70°C) |
| Relay Contacts | Gold-plated silver-tin alloy |
| LED Indication | LED indicator for relay status |
