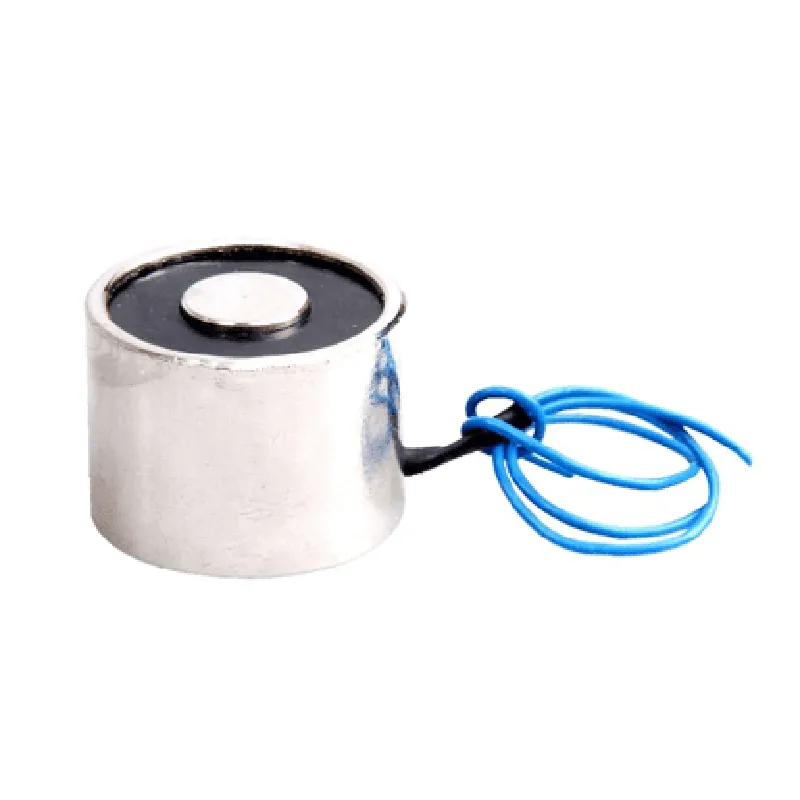

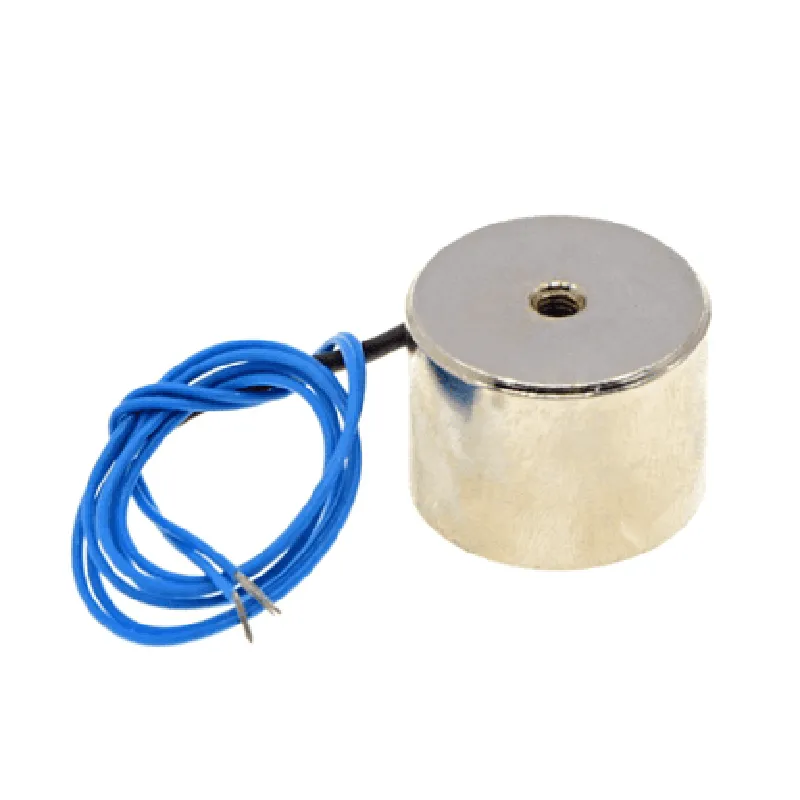

DC 12V KK-P25/20 8KG Lifting Solenoid Electromagnet

This product is not available in your location yet

Description: 1. DC 12V KK-P25/20 is a heavy-duty 8kg Lifting Solenoid Electromagnet designed for various automation, lifting, or actuating applications in industries and hobby projects. 2. Features: It operates on a 12V DC power source, features a KK-P25/20 solenoid valve with a coil resistance of 4.7 ohms, and comes with an IP67 rated housing that makes it waterproof and dust-resistant. 3. Construction: This electromagnet is made from high-quality materials, including a ferromagnetic core and a brass body, ensuring robustness and longevity in demanding environments. 4. Operation: The solenoid produces a magnetic field when powered on, attracting or lifting objects up to 8kg weight through the application of force. When de-energized, it releases its hold due to the lack of magnetic force. 5. Efficiency and Compatibility: DC 12V KK-P25/20 is an energy-efficient alternative to pneumatic or hydraulic systems, consuming less power while maintaining a reliable and consistent performance. It can be

View Technical Documentation

Specification	Details
DC Voltage	12 Volts
Power Consumption	30 Watts (approx.)
Pulling Force	8 Kilograms
Stroke Length	20 Millimeters
Operate Time	1.5 Seconds (approx.)
Coil Resistance	4 Ohms
Inductance	10 mH
Temperature Range	-20°C to +40°C
Humidity Range	0% to 90% relative humidity
Connection Type	Screw terminals (e.g. M5 x 16mm)
Weight	Approximately 1.2 Kilograms
