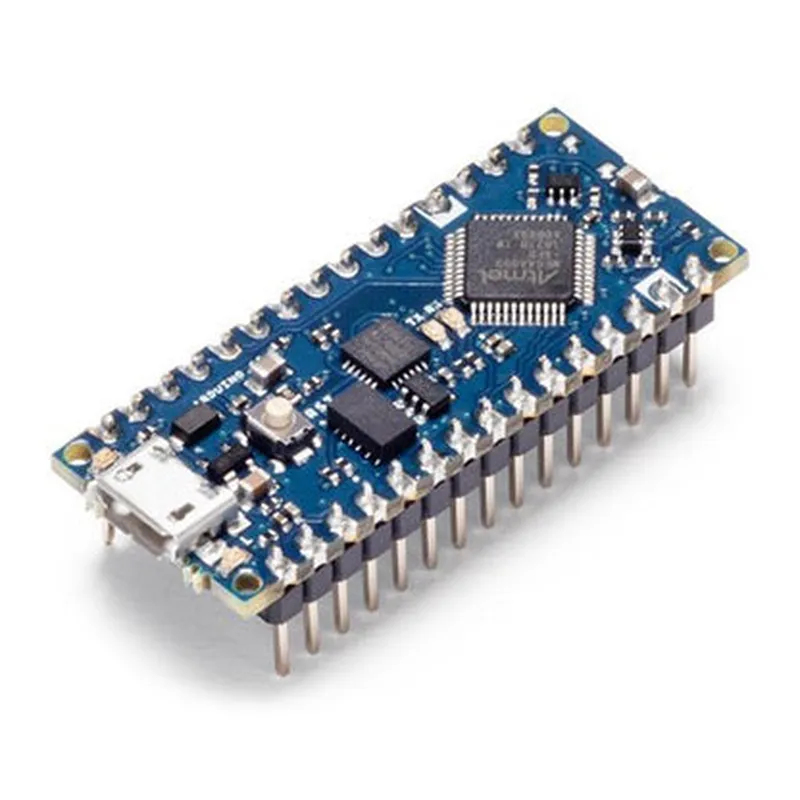

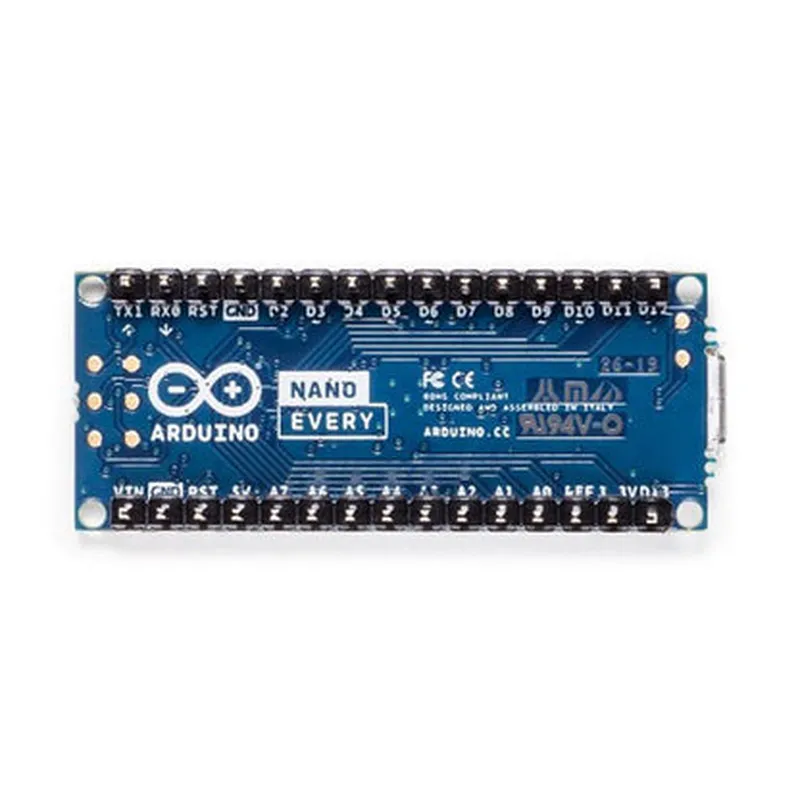

Arduino Nano Every with Headers

This product is not available in your location yet

Description: 1. Size and Compatibility: Arduino Nano Every is a compact microcontroller board based on the ATmega4809A chip, measuring 45mm x 20mm. It's compatible with the Arduino IDE and works with various shields using its integrated headers. 2. Pin Count: This board boasts 16 digital input/output pins (DINs) and 8 analog inputs, allowing for diverse projects that require multiple sensors or actuators. 3. Integrated USB Connection: Arduino Nano Every features a built-in USB connection for easy programming and data transfer without the need for external components like a USB-to-serial converter. 4. Flexible Inputs and Outputs: With 6 PWM outputs, servo motor support, and an ICSP header, Arduino Nano Every can be used in various projects requiring precise control over LEDs or motors. 5. Power Options: The board offers multiple power options including a DC jack, a power pin, or an external power source via the VIN pin, providing flexibility for different project configurations. 6. Onboard Vol

View Technical Documentation

Specification	Details
Microcontroller	ATmega4809 (8-bit AVR)
Clock Speed	20 MHz
Flash Memory	64 KB (up to 256 KB with external)
SRAM	6 KB
EEPROM	1 KB
Analog Input Pins	8
Analog Output Pins	4
Digital I/O Pins	14 (of which 7 can be used as PWM)
PWM Channels	9
Serial Communication	1 x UART (TTL) 1 x SPI 1 x I2C
Operating Voltage	3.0V - 5.5V
Current Rating	Up to 500 mA
Dimensions	45 mm x 18 mm
Weight	Approximately 8 grams
