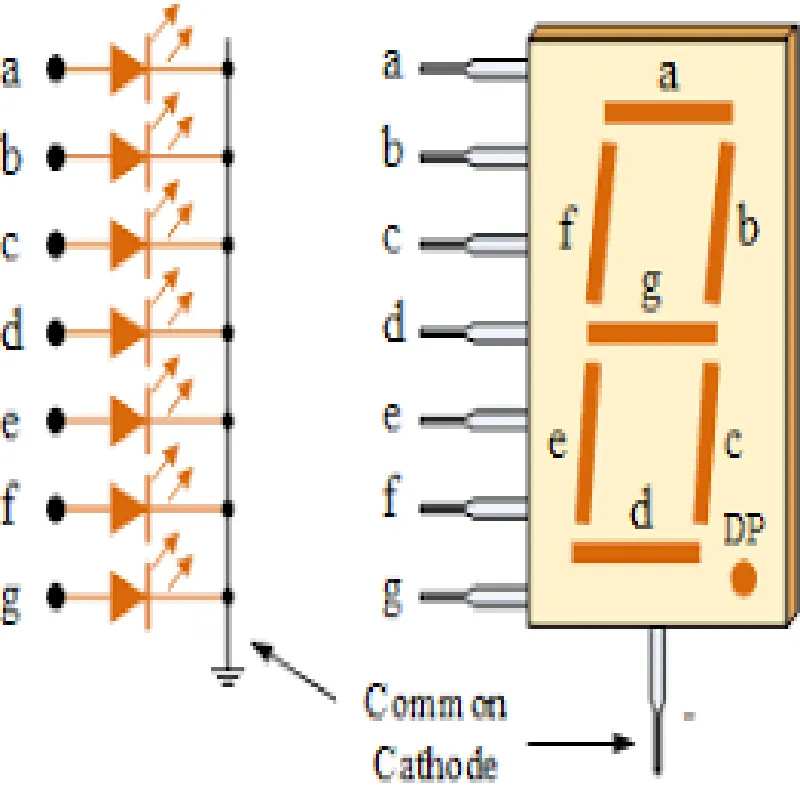

Description: 1. Description and Appearance: A 7-segment LED display is an electronic device made up of seven segments (a, b, c, d, e, f, and g) and two digits of decimal points, which are used to display numbers from 0 to 9 and some alphabets. The common cathode version has a single common electrode for all segments and the decimal points. 2. Versatile Usage: Common cathode 7-segment LED displays find extensive use in various applications, including digital clocks, calculators, counters, digital voltmeters, and odometers due to their simplicity, high brightness, low power consumption, and ease of operation. 3. Features and Characteristics: This display comes with 14 individual anodes for the seven segments and decimal points. It utilizes a common cathode for all segments and decimal points, ensuring the segments are turned off when no segment is lit up, which simplifies wiring and reduces component count. 4. Operation Principle: The LEDs in 7-segment displays emit light when a current flows thr
| Specification | Details |
|---|---|
| Type | Common Cathode 7 Segment Display |
| Number of Segments | 16 (0-9 digits A-F letters) |
| Segment Type | LED (Light Emitting Diode) |
| Power Consumption | Typically around 1.5 to 2.5mA per segment |
| Voltage Range | +2.8V to +15V |
| Current Range | Typically up to 20mA |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Dimensions (mm) | Typically around 36 x 12.5 mm |
| Mounting Type | Through-hole Surface Mountable |
| Package Style | Individual segments or in a single PCB |
