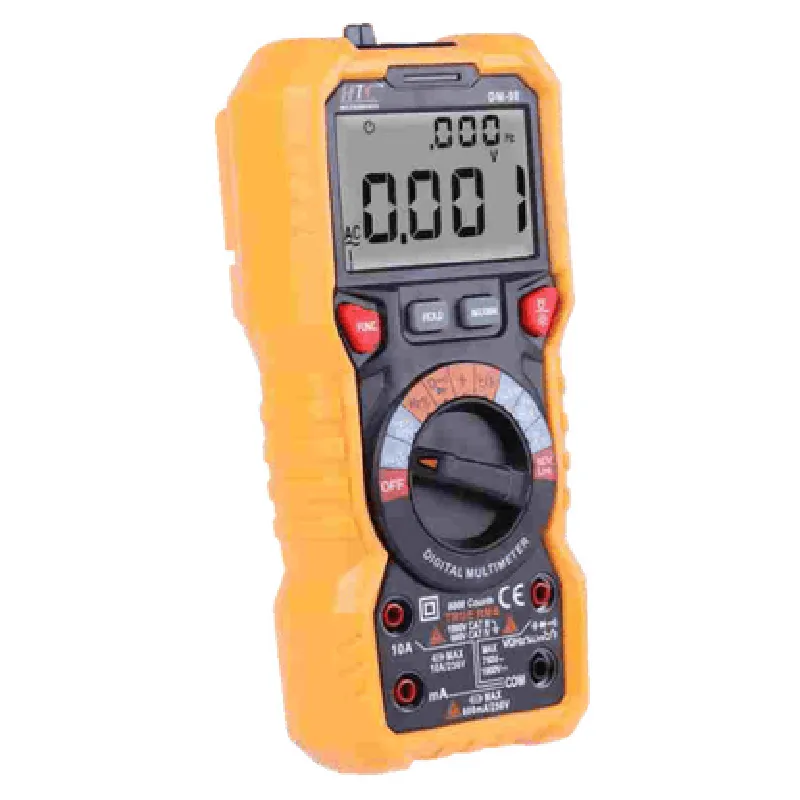

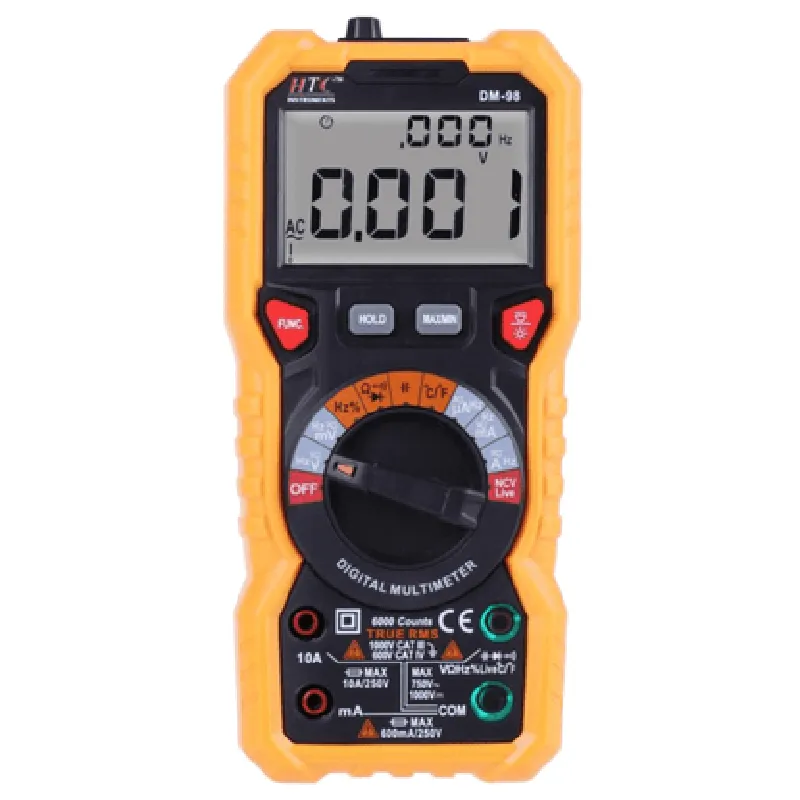

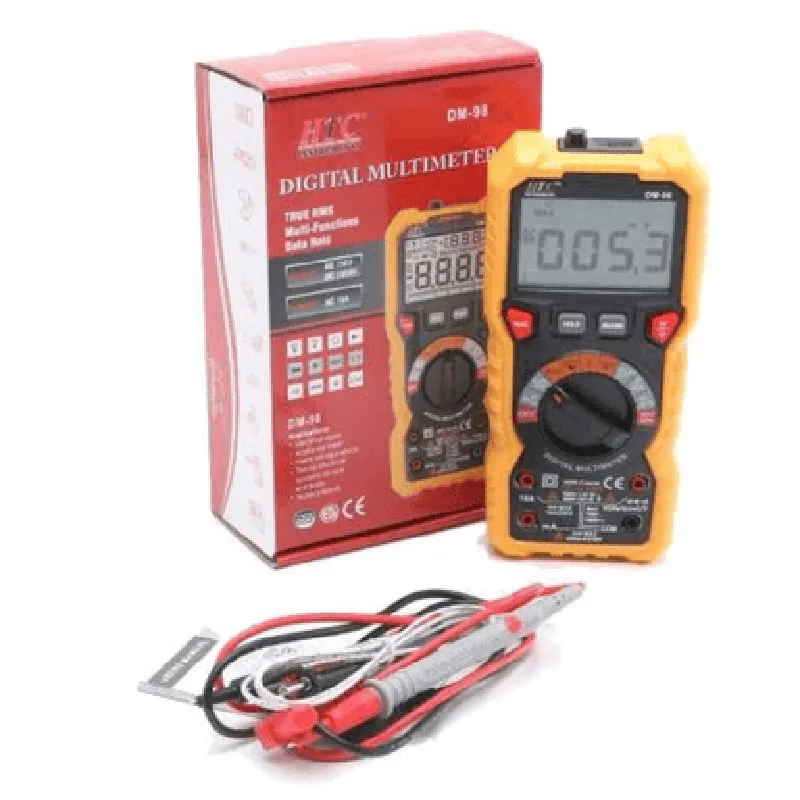

Description: 1. HTC DM-98 is a versatile Digital Multimeter (DMM) designed for measuring electrical current, voltage, resistance, capacitance, and diode continuity in various applications. 2. Features: It offers true RMS measurement for accurate reading of AC waveform volatility, an auto-ranging function that eliminates the need for manual setting adjustments, a backlit LCD screen for clear visibility, and a data hold function to save important readings. 3. Input Impedance: The DMM has a high input impedance of 10 Megohms which minimizes disturbance to sensitive circuits when measuring voltages or currents. 4. Diode Test Function: A dedicated diode test function allows for easy identification and analysis of diodes, helping users troubleshoot electronic components and systems. 5. Dual Power Source: The HTC DM-98 can be powered by both disposable batteries or through a USB connection, ensuring flexibility in power options. 6. Protection Features: It features overload protection to prevent dama
| Specification | Details |
|---|---|
| Measurement Functions | DC Voltage (DCV) AC Voltage (ACV) DC Current (DCC) AC Current (ACC) |
| Display Resolution | 6000 counts per measurement |
| Accuracy | ±(0.05%+2) for DCV ±(1.5%+2) for DCC ±(3%+1) for ACV and ACC |
| Measurement Ranges | DCV: 200mV to 1000V ACV: 50mV to 600V DCC: 60μA to 10A ACC: 20mA to 400A |
| Temperature Measurement | K-type thermocouple (–270°C to +1372°C) |
| Battery Life | 150 hours of continuous operation |
| Operating Temperature | –10°C to +40°C |
| Dimensions | 165mm x 75mm x 35mm |
| Weight | 320g |
| Display Type | LCD (Backlight) |
| Auto-Ranging | Yes |
1. The Mastech MS2001C is a c...

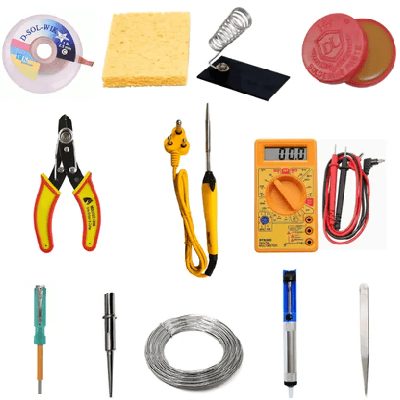

1. Comprehensive Soldering Ki...
1. Material: Made of high-qua...
1. Powerful Heating System: T...
1. The Black Glue Stick is a ...
1. A desoldering pump is a ha...

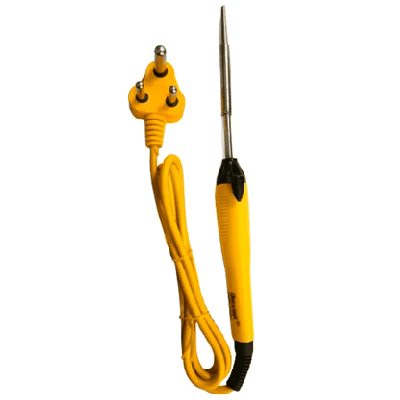

1. The AC230V 25W Soldering I...
