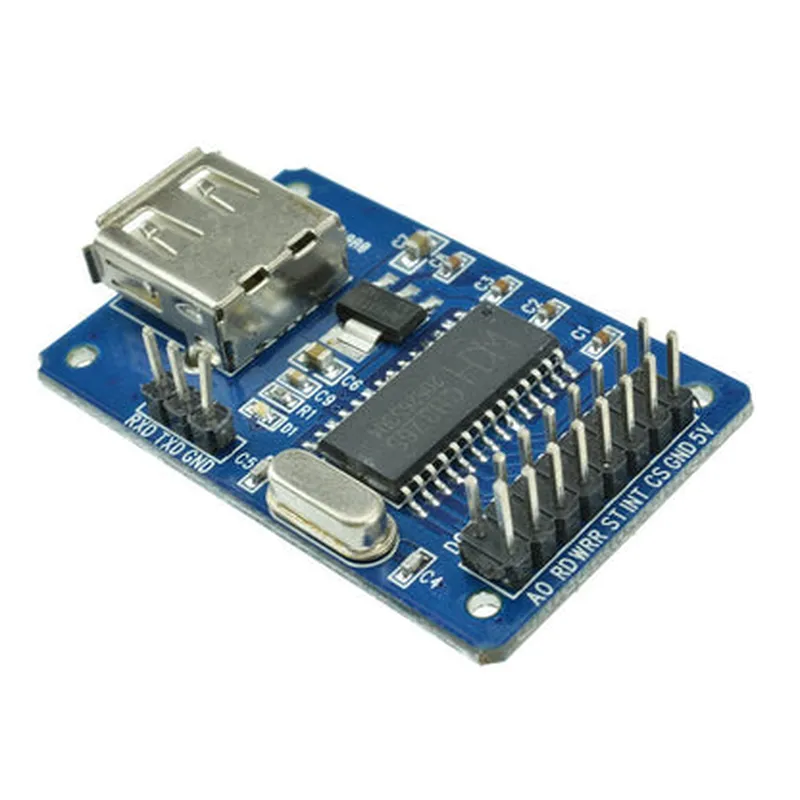

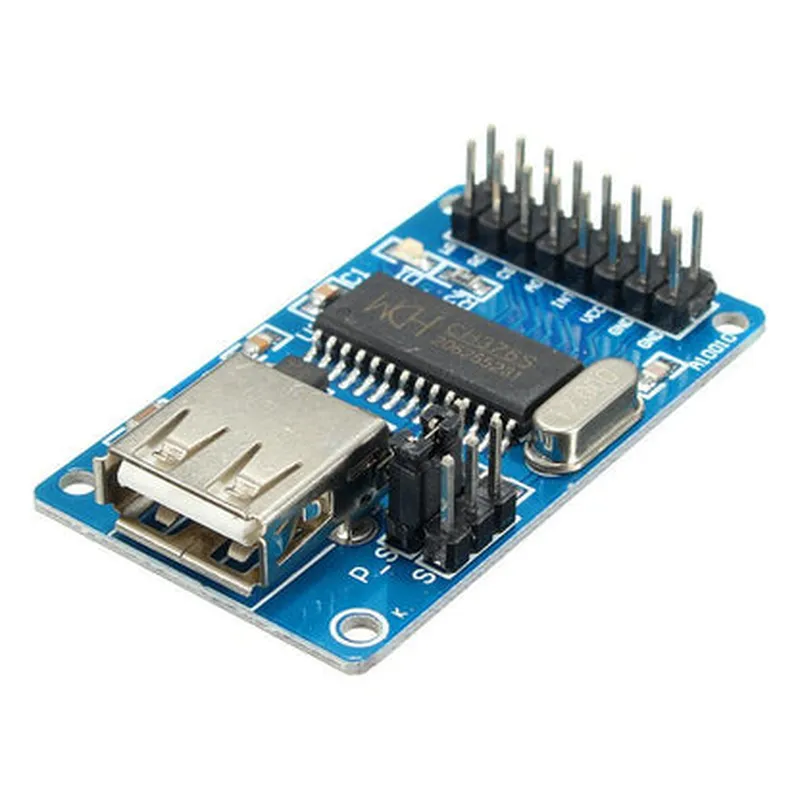

Description: 1. The CH376 USB Host Interface Module is a versatile flash disk drive read-write (RW) solution designed for IoT projects and other embedded systems. 2. It features the CH376S chipset, a high-performance USB host controller capable of managing multiple USB devices simultaneously. 3. The module supports various types of flash disks, including SD, TF, MMC, and MS cards (up to 32GB), making it a universal storage solution. 4. It offers bi-directional communication between the microcontroller unit (MCU) and the connected flash disk, allowing for both read and write operations. 5. The CH376 USB Host Interface Module comes with an onboard 12MHz quartz crystal oscillator and a USB Type-B connector for easy integration into your project. 6. It features overcurrent protection and low power consumption, ensuring reliable data transfer and extended battery life in portable applications. 7. The module's user-friendly API simplifies the process of working with flash disks, making it an excel
| Specification | Details |
|---|---|
| Chipset | CH376S 8-bit MCU |
| USB Version | USB 1.1 Full-Speed (12 Mbps) |
| Flash Memory Type | SPI NOR Flash (e.g. Winbond W25Q64) |
| Flash Memory Size | Up to 64 MB |
| EEPROM Storage | Built-in EEPROM for data storage |
| Operating Voltage | 3.3V with internal voltage regulator |
| Power Consumption | Typical: 30mA (max: 60mA) |
| Dimension | 18mm x 15mm x 5.2mm |
| Interface | USB Host Interface |
| Operating Temperature | -20°C to +85°C |
| Support File Systems | FAT16 FAT32 and Symbian OS |
