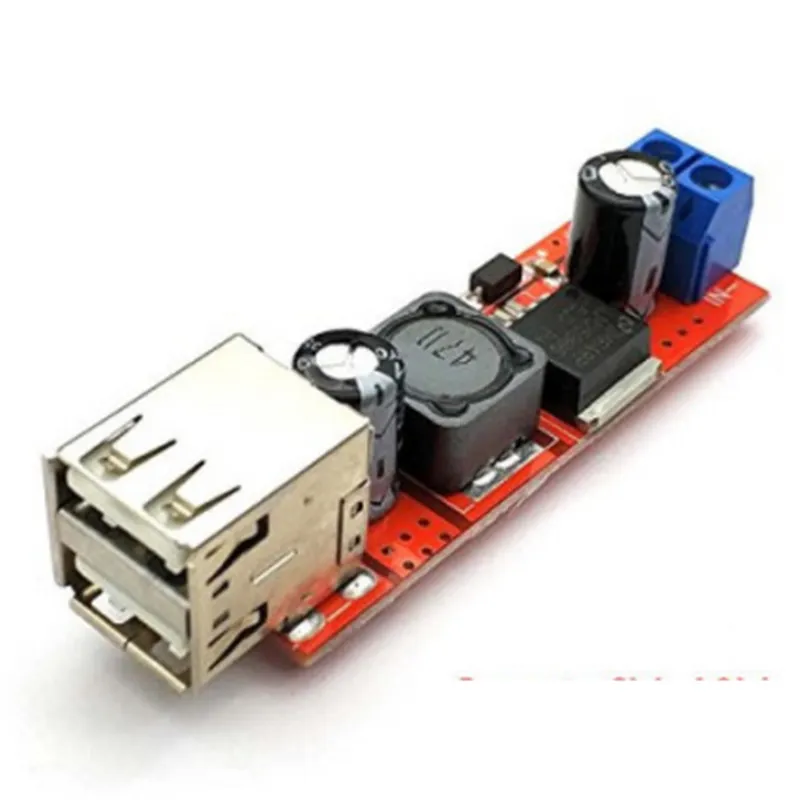

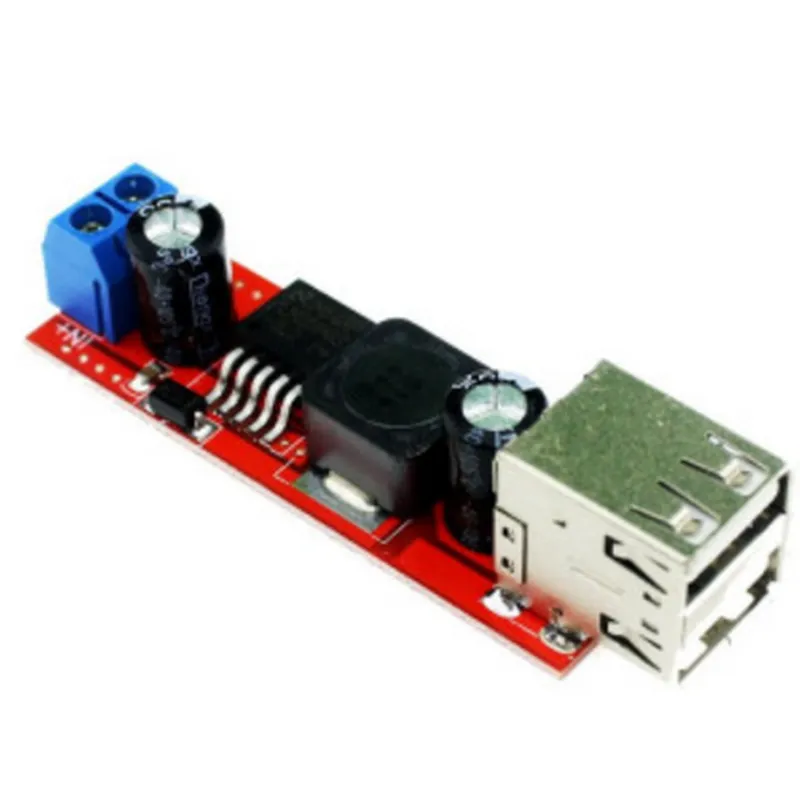

6V-40V to 5V 3A Double Usb Charger Step Down Convertor

Stufin

6V-40V to 5V 3A Double Usb Charger Step Down Convertor

This product is not available in your location yet

Description: 1. A 6V-40V to 5V 3A Double USB Charger Step Down Convertor is an efficient power adapter designed to convert voltage and regulate current for charging two USB devices simultaneously. 2. Input Voltage Range: It can handle a wide input voltage range of 6V to 40V, making it suitable for various power sources like solar panels, vehicle batteries, or industrial applications. 3. Output Voltage and Current: This step-down converter delivers a stable output voltage of 5V with a maximum current capacity of 3A per USB port. 4. Overcharging Protection: Integrated overcharging protection prevents damage to connected devices by automatically stopping the charging process once batteries are fully charged. 5. Short Circuit and Surge Protection: This charger features robust short-circuit and surge protection mechanisms, ensuring safety for both the device and users. 6. Compact Design: With a sleek and compact design, this charger is portable and convenient to use, making it an excellent choice

View Technical Documentation

Specification	Details
Specification	Detail
Input Voltage Range	6V - 40V
Output Voltage	5V
Output Current	Up to 3A (per port)
Dual USB Ports	Yes with independent output control
Conversion Efficiency	> 90% (typical)
Switching Frequency	≥ 50 kHz
Protection Features	Over-temperature protection Short-circuit protection Over-voltage protection Reverse polarity protection
Size and Weight	Compact design (dimension: TBD) Light weight (approx. TBD g)
Operating Temperature	-20°C to +80°C
Certifications	ETL CE RoHS compliant
