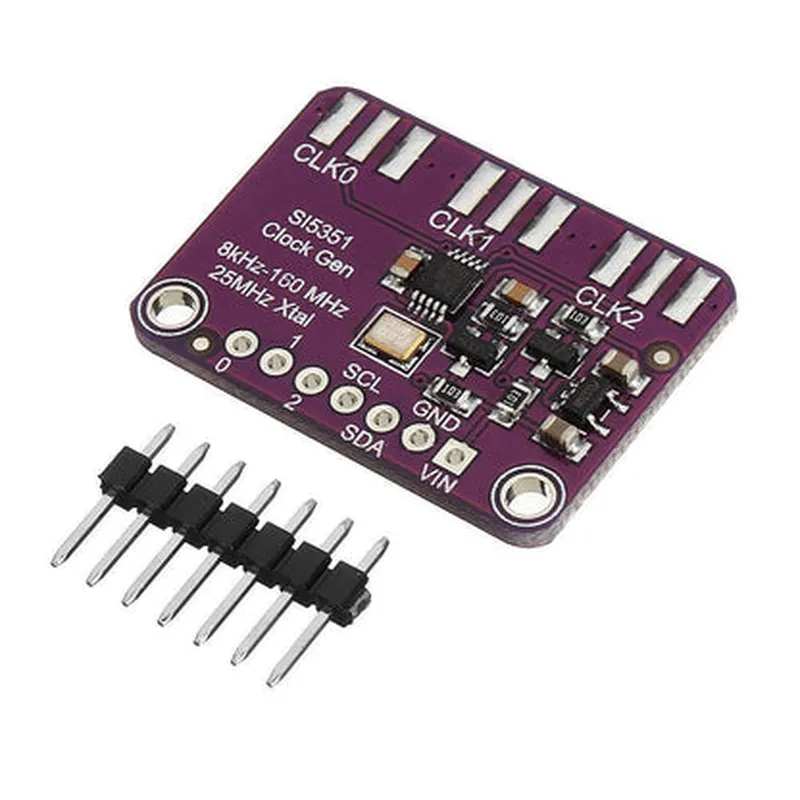

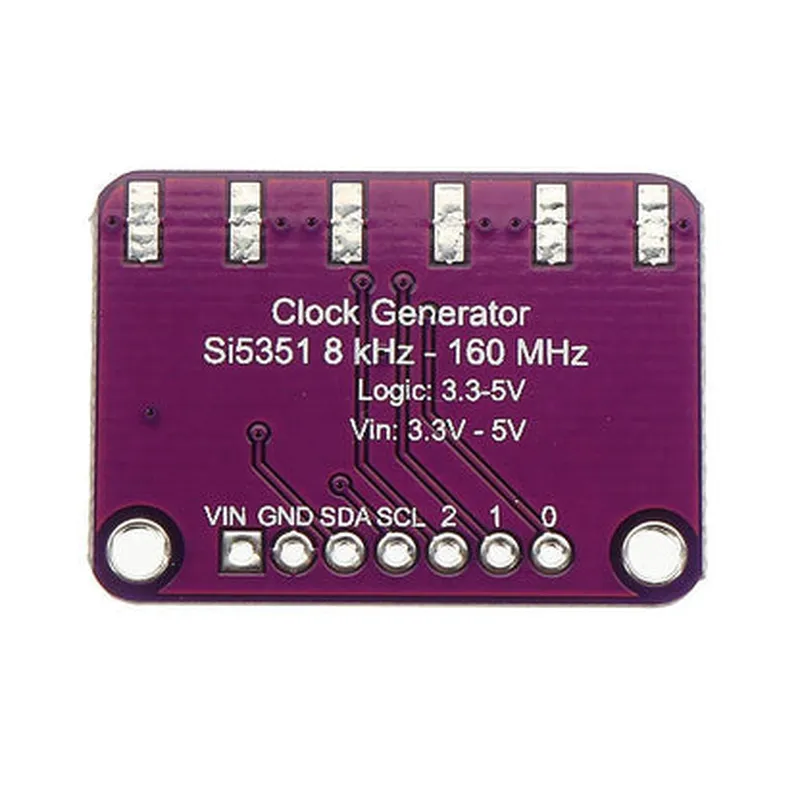

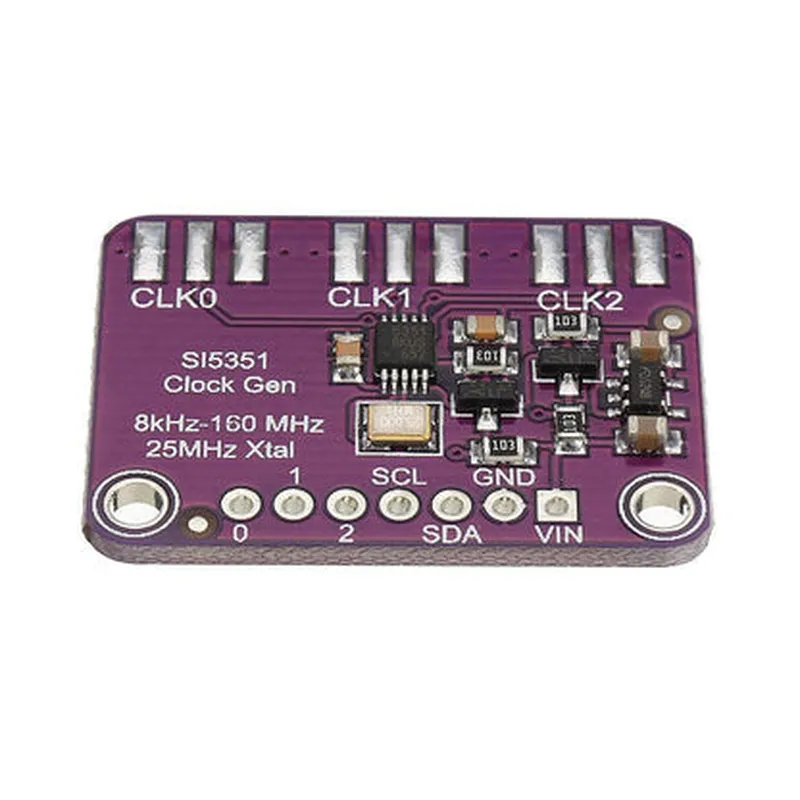

Description: 1. The Si5351A Clock Signal Generator Module is a versatile and high-performance clock generator that can generate up to seven independent, low-phase-noise clocks in the frequency range of 0.1 Hz to 80 MHz. 2. It utilizes a synthesized phase-locked loop (PLL) design, which provides excellent frequency stability and accuracy. This makes it suitable for various applications, including precise timekeeping, frequency translation, and testing in the IoT, radio communication, and test equipment industries. 3. The module offers an adjustable fractional-N synthesis mode, which enables generating frequencies with fractional values between two integer multiples of the reference input. This feature ensures fine tuning capability for applications requiring high precision frequency generation. 4. Featuring a low power consumption and compact size (17 mm x 25 mm), it is an ideal choice for battery-powered projects, portable test equipment, or IoT devices with limited space constraints. 5. The m
| Specification | Details |
|---|---|
| Specification | Detail |
| Manufacturer | Silicon Labs |
| Part Number | Si5351A-I/M8 |
| Frequency Range | 200 kHz to 160 MHz (software-selectable) |
| Resolution | 2.4 Hz (0.002%) or better (depending on frequency) |
| Phase Noise (typical) | -140 dBc/Hz @ 10 kHz offset from carrier |
| Output Power (typical) | 7 dBm into 50 ohms |
| Supply Voltage | 2.5 V to 3.6 V |
| Current Consumption | 1.4 mA (typical) 3.2 mA (max) |
| Package | 16-pin SMD-8 (WLCSP) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| Pinout | 16 pins including VCC GND REF and more |
