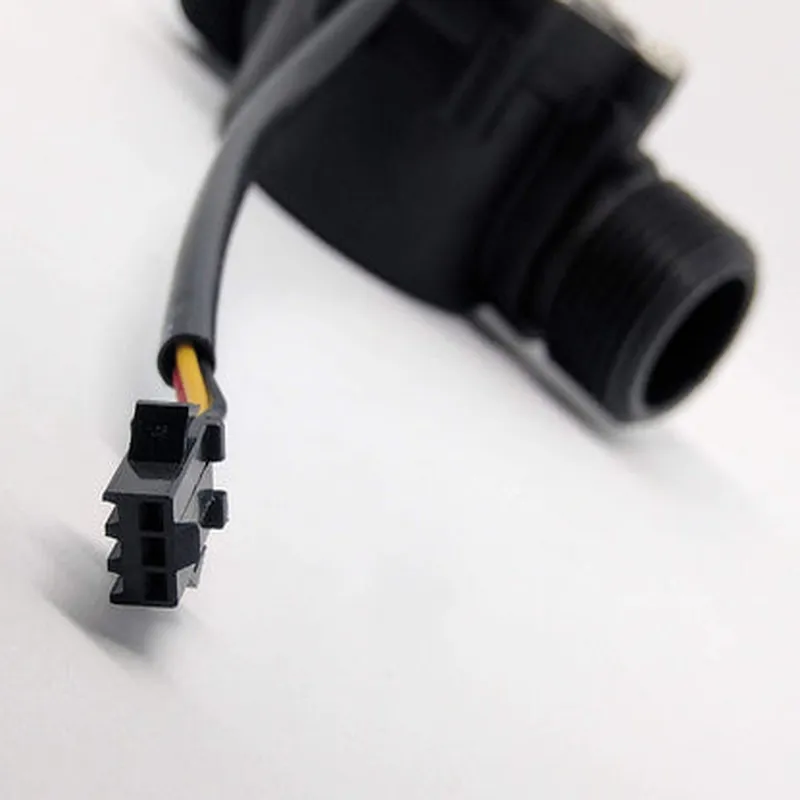

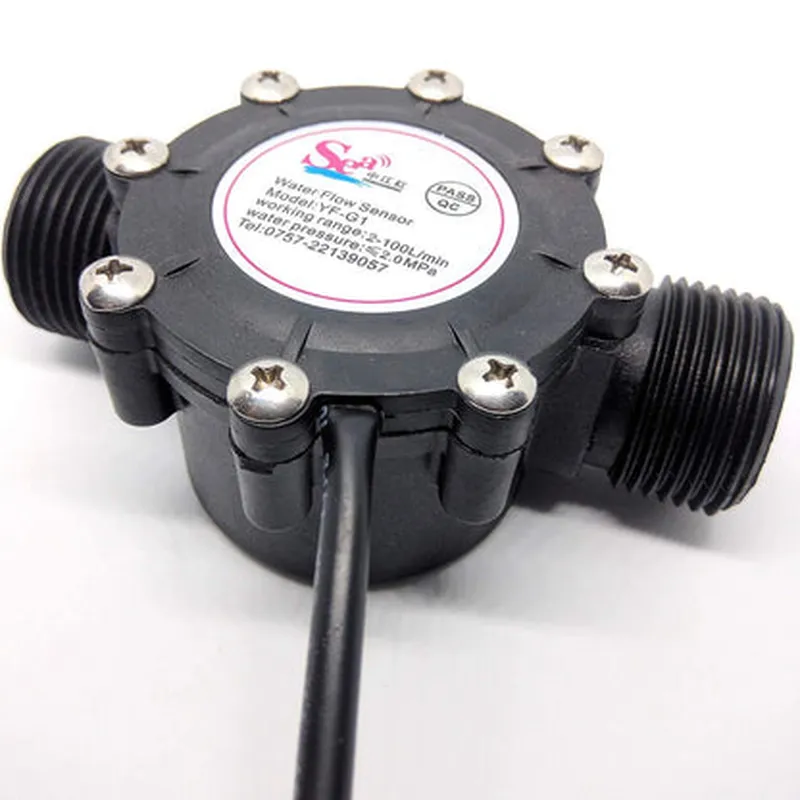

1 Inch Water Flow Sensor YF-G1 DN25

This product is not available in your location yet

Description: 1. The YF-G1 DN25 is a 1-inch water flow sensor designed for applications that require monitoring and measurement of water flow in pipes with a DN25 (50mm) connector. 2. Functionality: This sensor uses ultrasonic technology to measure the volume of water flowing through it by emitting sound waves that bounce off the water surface and are then measured to determine flow rate. 3. Features: The YF-G1 DN25 offers high accuracy (±3%), a large measuring range (0–5 m/s), a temperature compensation function, and is resistant to corrosion due to its stainless steel housing. 4. Integration: This sensor can be easily integrated with various IoT platforms and control systems through a 4-20mA current loop output or a pulse output (pulse quantity per liter). 5. Installation: The sensor has a simple installation process: simply connect it to the water pipe and power source, calibrate it if necessary, and it is ready to use. No additional tools are required for installation. 6. Applications: Ide

View Technical Documentation

Specification	Details
Model Number	YF-G1 DN25
Flow Range	0.06 - 200 L/min (0.016 - 52.8 gal/min)
Accuracy	±2% FS
Resolution	0.01 mL
Repeatability	±1% FS
Pressure Range	Up to 10 bar (145 psi)
Temperature Range	-20°C ~ +100°C
Power Supply	DC 3V - 24V
Current Consumption	<2mA
Signal Output	Pulse Analog 0-5V
Flow Units	L/min (gal/min) mL/s
Connection Type	G1 Threaded
Material	Stainless Steel
Size	Φ25mm x 120mm
Weight	≈180g
