This product is not available in your location yet

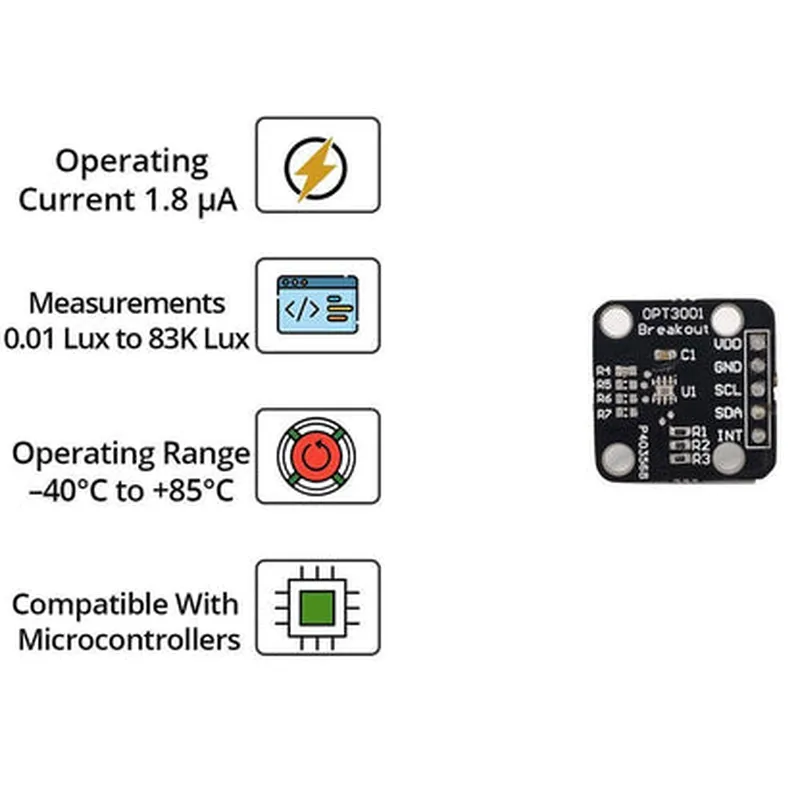

Description: Witty Fox OPT3001 Digital Ambient Light Sensor: 1. High Precision LUX Meter: The OPT3001 is a high-precision digital ambient light sensor designed to accurately measure light intensity in lux units (lx), ideal for applications requiring precise light level monitoring. 2. Wide Dynamic Range: Featuring a wide dynamic range, the sensor can effectively measure light levels from dimly lit environments up to brightly lit conditions with high sensitivity and accuracy. 3. Versatile Applications: This sensor is suitable for various IoT projects, including smart lighting systems, agricultural applications, home automation, and security systems that rely on light level detection or measurement. 4. Digital Output: The OPT3001 provides a digital output (I2C interface) that simplifies communication and integration with microcontrollers, single-board computers, and other IoT devices. 5. Easy Integration: With its I2C interface, the sensor can be easily integrated into a wide range of microcontrolle
| Specification | Details |
|---|---|
| Model | OPT3001 |
| Sensor Type | Digital Ambient Light Sensor |
| Lux Measurement Range | 0.01 lux to 125000 lux |
| Resolution | 16-bit (65536 counts) |
| Accuracy | ±5% (over 10000 lux to 125000 lux) |
| Conversion Time | <1ms |
| Operating Temperature | -40°C to 85°C |
| Supply Voltage | 2.6V to 3.8V |
| Current Consumption | 0.9mA (typical) |
| Package Type | 16-pin QFN (0.5mm pitch) |
| Interface | I2C (SMBus) |
