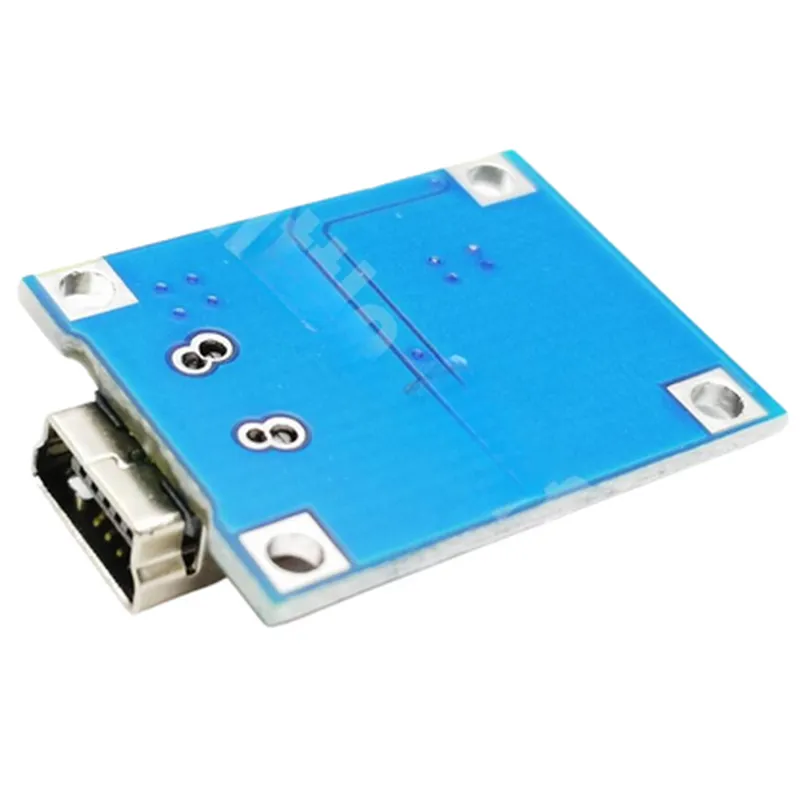

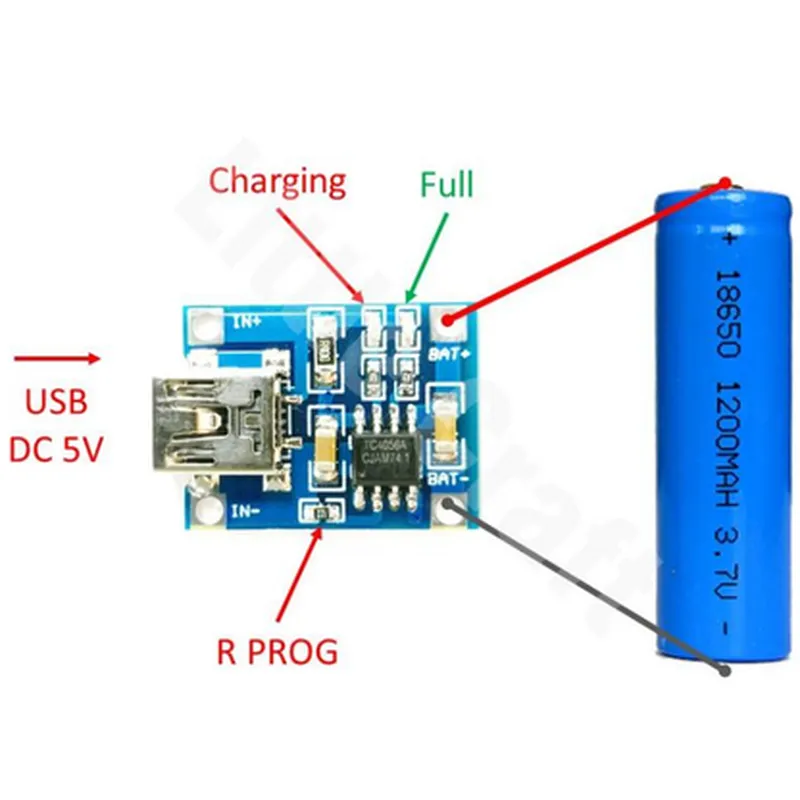

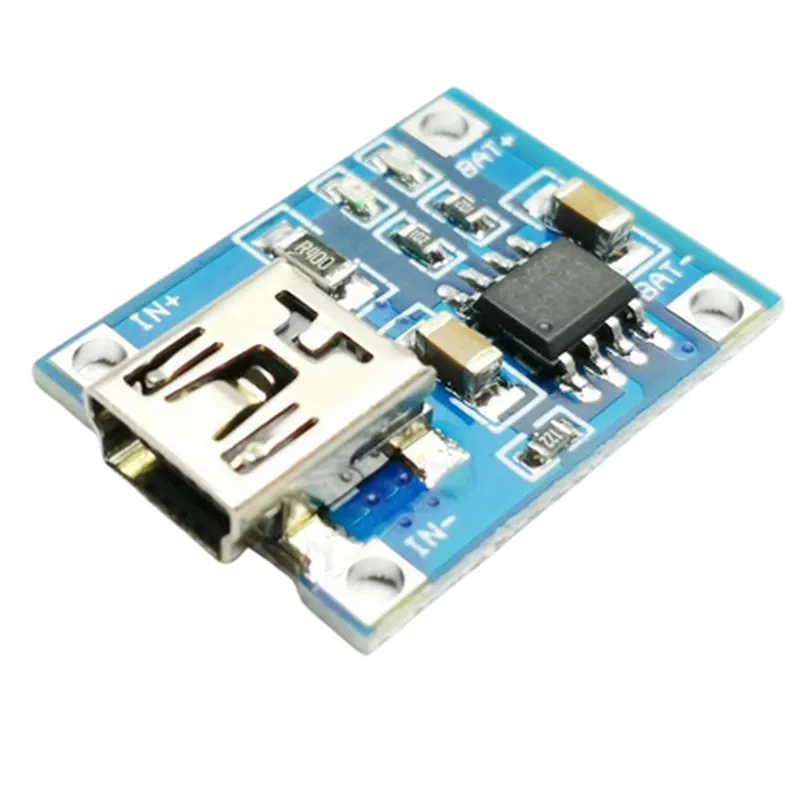

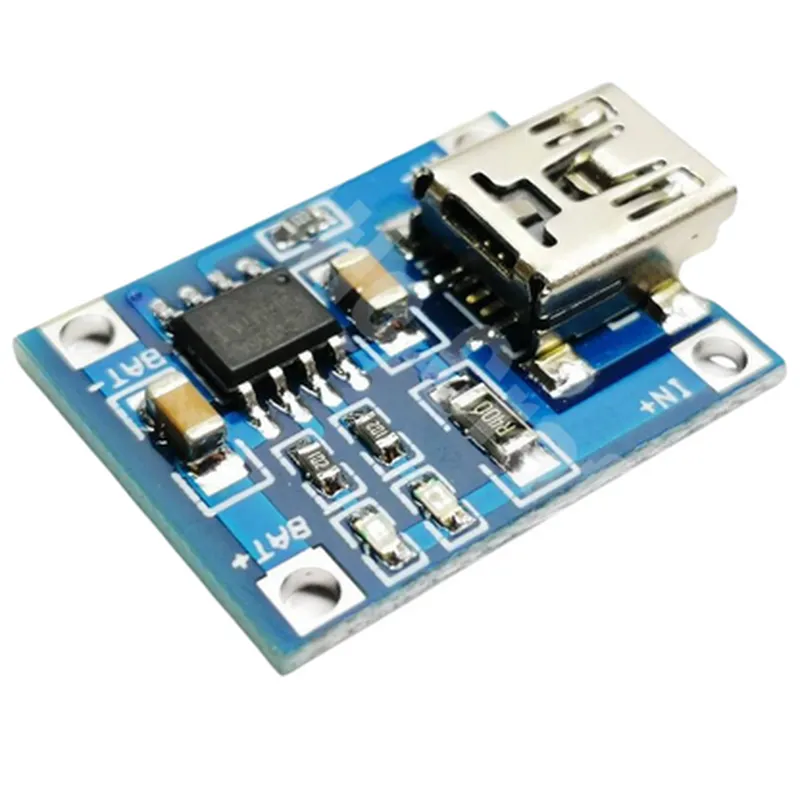

Description: 1. Features: TP4056 is a microcontroller-based universal Li-ion/LiPo charging module with over-charge and over-discharge protection, enabling safe battery charging and discharging. 2. Versatility: This charging module supports batteries with various capacities (up to 4200mAh) and voltages (3.7V – 4.2V). It can be used in numerous projects, from model cars to solar power systems. 3. Efficiency: The TP4056 module employs constant voltage and current charge algorithm for optimal battery charging efficiency and longer battery lifespan. 4. Flexibility: It comes with a built-in charging indicator LED, but the user can easily replace it with an external one if desired. The charging module also supports parallel charging of multiple batteries by using proper wiring connections. 5. Safety: The TP4056 ensures battery safety by providing overcharge protection (up to 4.35V), short circuit protection, reverse polarity protection, and thermal runaway protection. 6. Ease of use: This module is
| Specification | Details |
|---|---|
| Chipset | TP4056 USB-CDC protocol |
| Input Voltage Range | 3.5V to 12V (USB output: 5V) |
| Output Current Limit | Up to 1A |
| Charging Mode | Constant current/constant voltage |
| Voltage Regulation | Linear regulator |
| Protection Features | Overcharge over-discharge protection |
| Battery Types | Li-ion (e.g. 18650 26650) |
| Operating Temperature | -20°C to +70°C |
| Size | Approximately 3.5 x 1.2 cm |
