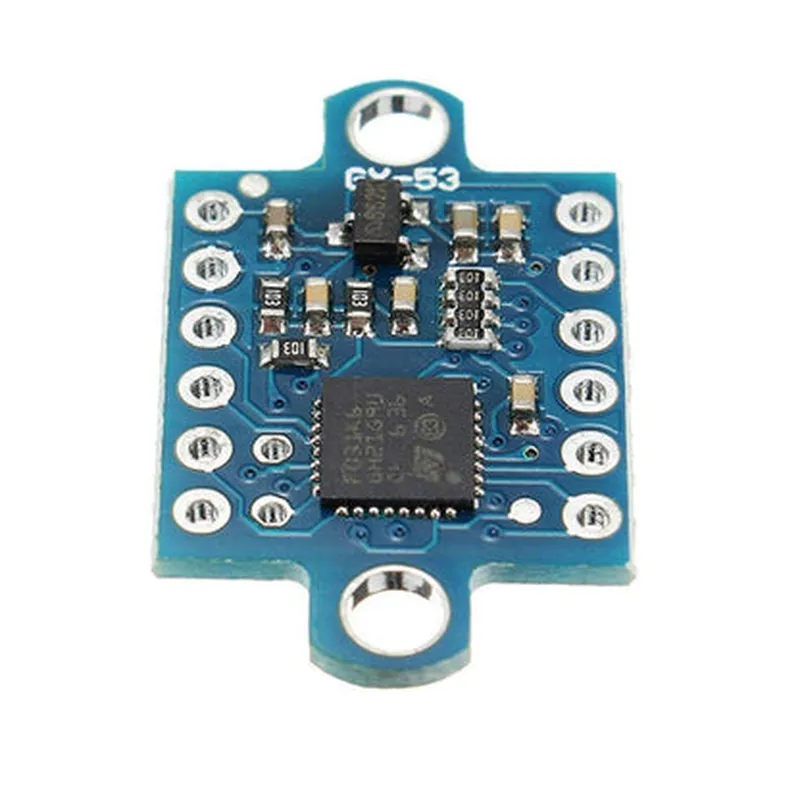

GY-53 VL53L0X Laser ToF Flight Time Range Sensor

This product is not available in your location yet

Description: 1. GY-53 VL53L0X is a Laser Time-of-Flight (ToF) sensor by STMicroelectronics, providing accurate distance measurements up to 5 meters with a resolution of 0.3mm. 2. Technology: This sensor emits a modulated near-infrared laser beam and measures the time taken for the beam to bounce back after hitting an object or surface. The flight time is converted into distance, providing high precision and reliability. 3. Ranging: GY-53 VL53L0X supports one- and two-line ranging modes, which can be used for single target measurement or multiple target detection in a 2D plane. It also features a digital filter to reject noise and ensure accurate distance measurements. 4. Interface: The sensor is I²C bus-enabled and includes an onboard data processing unit with internal memory, simplifying communication between the sensor and host microcontroller. A configurable serial interface is also available for advanced applications. 5. Integrated Ambient Light Sensor: This unique feature allows the senso

View Technical Documentation

Specification	Details
Sensor Type	Time-of-Flight (ToF) laser range finder
Operating Voltage	3.3V or 5V with a recommended voltage regulator for stable operation
Distance Measuring Range	4 cm to 12 m (4.8 meters maximum range) with an accuracy of ±3%
Measuring Resolution	Up to 1 mm in standard mode and up to 0.2 mm in high-resolution mode
Operating Temperature	-40°C to +85°C with a recommended operating temperature between 0°C to 60°C
Interface	I²C interface (SCL/SDA) for communication with a microcontroller or other host device
Power Consumption	Typically around 2.5 mA at 3.3V and approximately 4.8 mA at 5V
Dimensions	18 mm × 13 mm × 6.5 mm (length width height)
Weight	Approximately 1 gram
