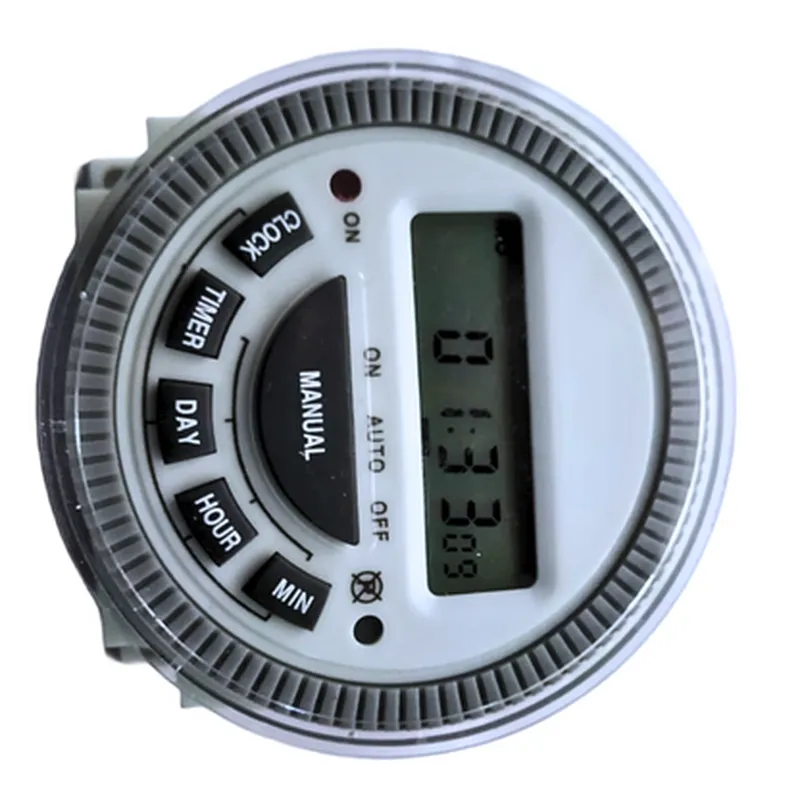

Programmable Digital Timer Module

Stufin

Programmable Digital Timer Module

This product is not available in your location yet

Description: 1. A Programmable Digital Timer Module is an electronic device used to control electrical appliances or lights based on predetermined time intervals. 2. Features: It comes with a user-friendly digital interface for setting the timer, which can range from seconds to hours. The module usually has multiple outputs and can handle various power ratings. 3. Functionality: The timer module is often used in home automation projects, gardening applications (e.g., watering systems), or industrial processes where precise time-controlled switching of loads is required. 4. Programming Interface: Users can set the on and off times for each output individually using the simple interface, making it versatile for various applications. 5. Unique Benefits: Enables energy savings by automating tasks like turning lights or appliances off when not needed. Provides convenience through scheduled control of devices, such as automatic watering or security systems. 6. Safety Measures: Many timer modules ha

View Technical Documentation

Specification	Details
Specification	Detail
Timing Modes	24-Hour Mode Countdown Timer Mode Alarm Timer Mode
Display	2-Line LCD Display (4-digit)
Resolution	Time and Date Resolution: 1-second 1-minute
Power Supply	3.0V to 5.5V DC Power Source
Operating Voltage	3.0V to 5.5V (Typical: 4.2V)
Current Consumption	Typical: 10mA Max: 20mA
Memory Storage	Stores up to 100 Events in Non-Volatile Memory
Communication	UART (Serial Communication Port)
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Dimensions	56mm x 38mm x 13.5mm
