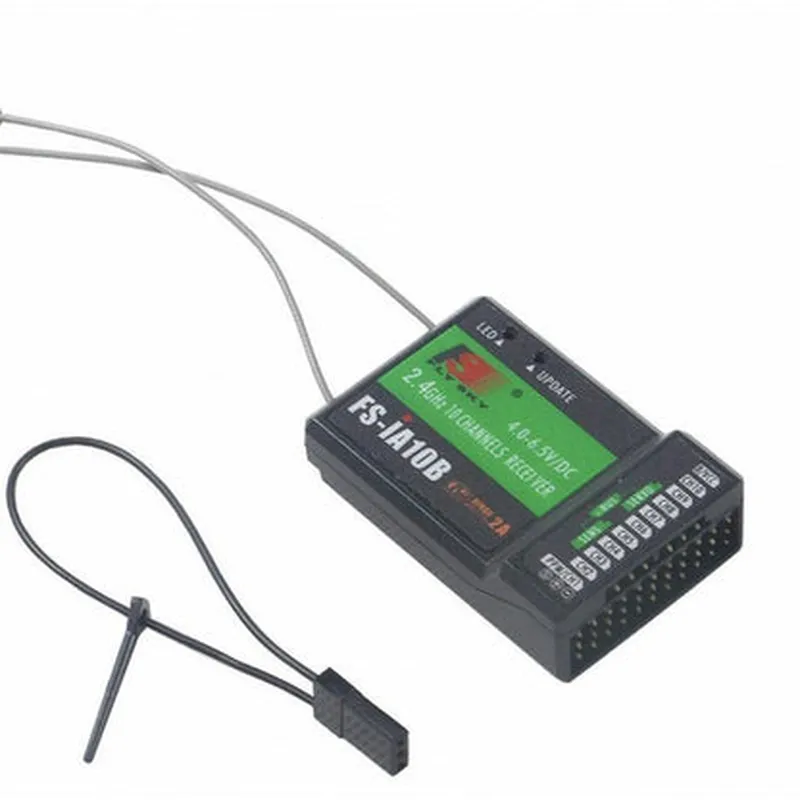

Description: 1. Overview: The FlySky FS-iA10B is a 2.4GHz 10-channel radio receiver designed for model airplanes, helicopters, and multirotors, offering high precision and reliability in wireless control. 2. Compatibility: This receiver works with Flysky's FT series transmitters (such as FS-i6X or FS-i6X 10A), allowing users to upgrade their RC systems while ensuring compatibility between the receiver, transmitter, and models. 3. Frequency: The FS-iA10B operates on a 2.4GHz frequency band with a high-sensitivity antenna for secure and stable radio control transmission, reducing interference from other devices and maintaining responsiveness in crowded environments. 4. Channels: This 10-channel receiver supports up to ten servos or ESCs for controlling various functions such as ailerons, elevators, rudder, throttle, flaps, retracts, motor rotations (for helicopters), and more, enabling users to create complex and sophisticated RC models. 5. Low Latency: With a low latency design, the FS-iA10B en
| Specification | Details |
|---|---|
| Type | 2.4GHz 10 Channel Radio Receiver |
| Frequency Band | 2.4 GHz ISM band (Industrial Scientific and Medical) |
| Number of Channels | 10 Channel Support |
| Data Rate | Up to 50 kHz (depending on mode used) |
| Modulation Type | GFSK (Gaussian Frequency Shift Keying) |
| Operating Range | Up to 1 km (optimal range may vary due to interference and environment) |
| Power Consumption | 100 mA (Typical) 150 mA (Max) |
| Dimensions | 4.5 x 2.5 cm (approximately) |
| Weight | Approximately 25 grams |
| Compatibility | Compatible with FlySky i6 i8 and other compatible transmitters |
| Operating Voltage | 3.6V - 6.0V (via JST-XH connector) |
| Antenna Type | Built-in antenna |
