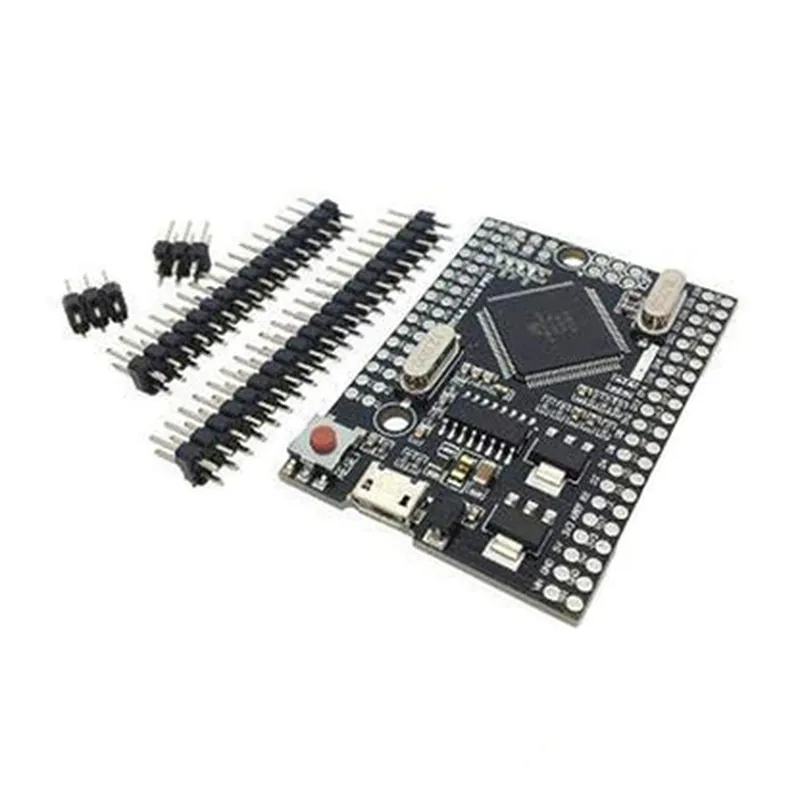

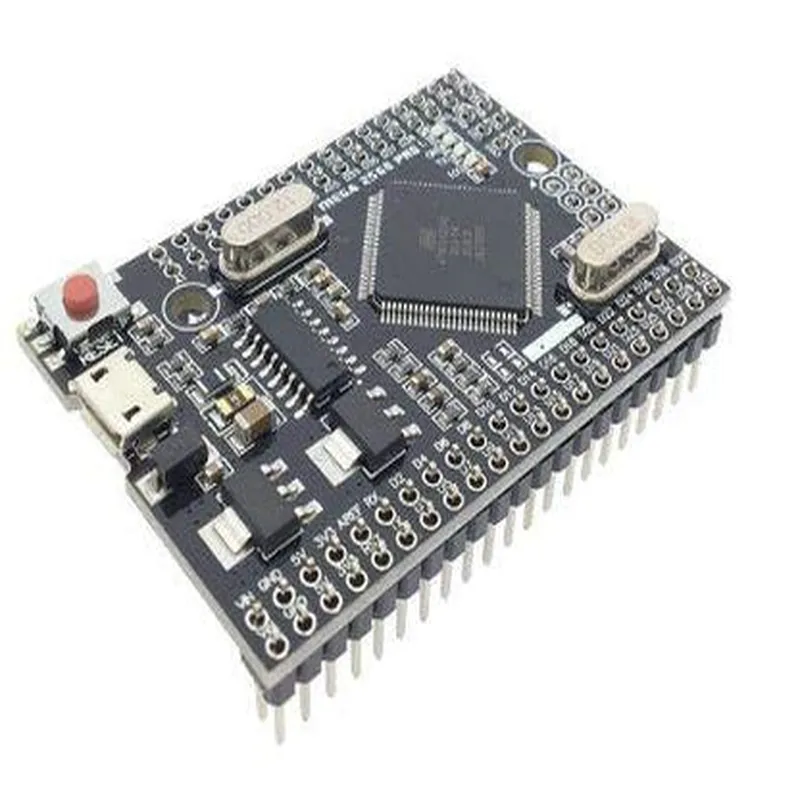

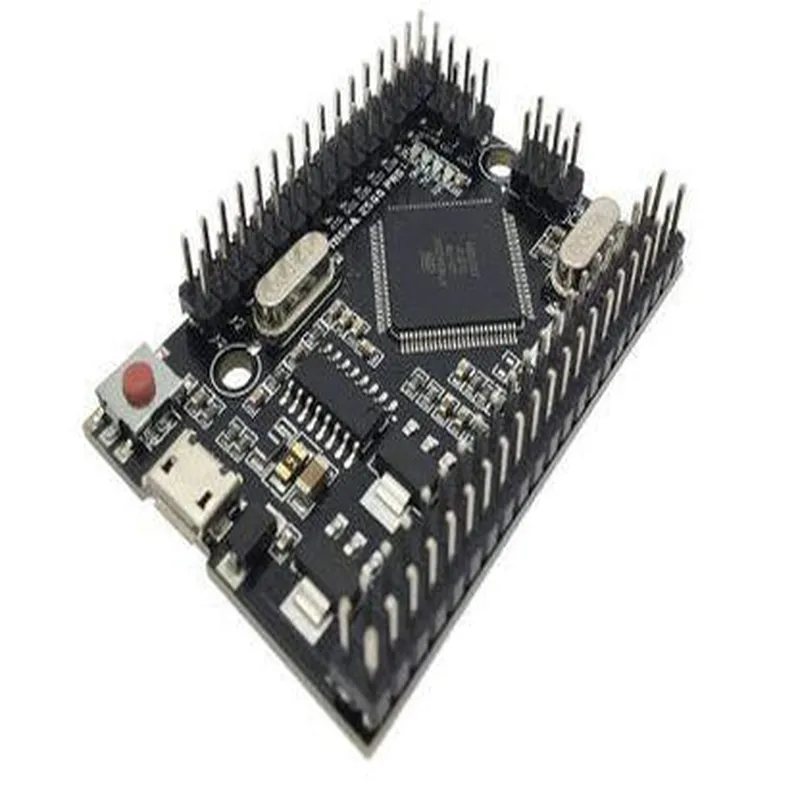

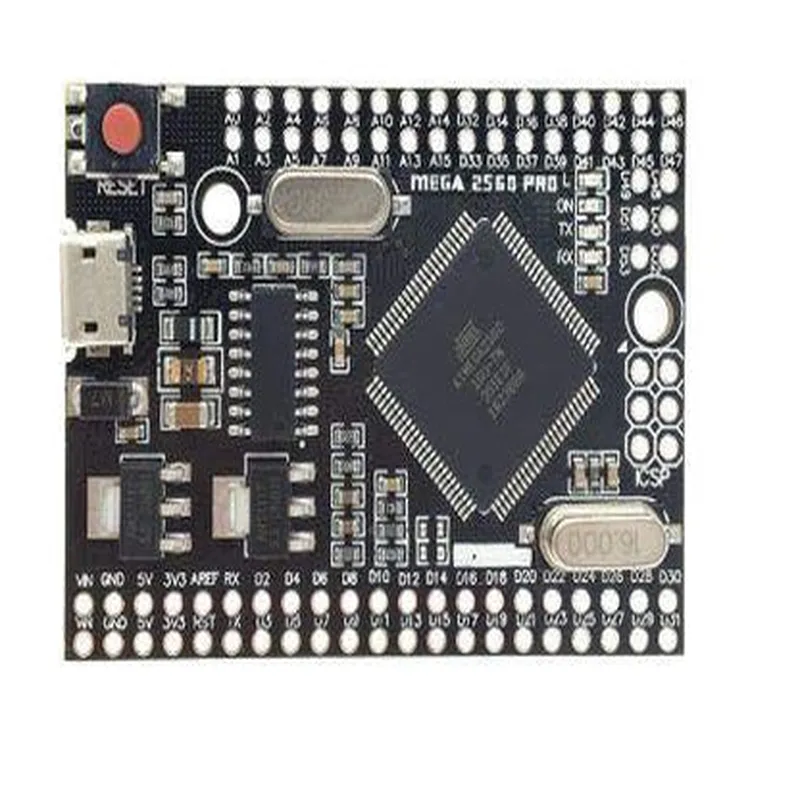

Arduino Mega 2560 Pro ATmega2560 compatible Board

This product is not available in your location yet

Description: 1. The Arduino Mega 2560 is a microcontroller board based on the ATmega2560 chip, providing 256 KB Flash memory and 256 KB SRAM. 2. This board features 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 serial ports, a 16 MHz quartz crystal, a USB connection, an ICSP header, and a power jack. 3. Arduino Mega 2560 is suitable for more complex projects due to its larger memory capacity compared to other Arduino boards. 4. Its extensive input/output capabilities make it ideal for interfacing with various sensors, actuators, and communication modules in IoT applications. 5. The board can be powered by an external power source, providing flexibility when working on projects that require more power or complex setups. 6. It comes pre-loaded with the Arduino Bootloader, simplifying the process of uploading and programming code through USB using the Arduino IDE software. 7. The Mega 2560's extensive connectivity options include Ethernet, WiFi, Blue

View Technical Documentation

Specification	Details
Microcontroller	ATmega2560 (ATmega328P-compatible)
CPU Speed	16 MHz
Flash Memory	256 KB (4KB used for bootloader)
SRAM	8 KB
EEPROM	4 KB (1KB used by Arduino Bootloader)
I/O Pins	54 digital I/O pins (14 PWM 12 analog input)
Analog Inputs	16 (6 of which can be used as pulse-width modulation outputs)
USB	USB 2.0 with integrated FTDI chip
Serial Communication	TX/RX LED indicators dedicated UART pins
Operating System	Arduino IDE compatible
Power Supply	7-35V DC (via barrel jack or USB)
Dimensions	53mm x 101mm x 20mm
