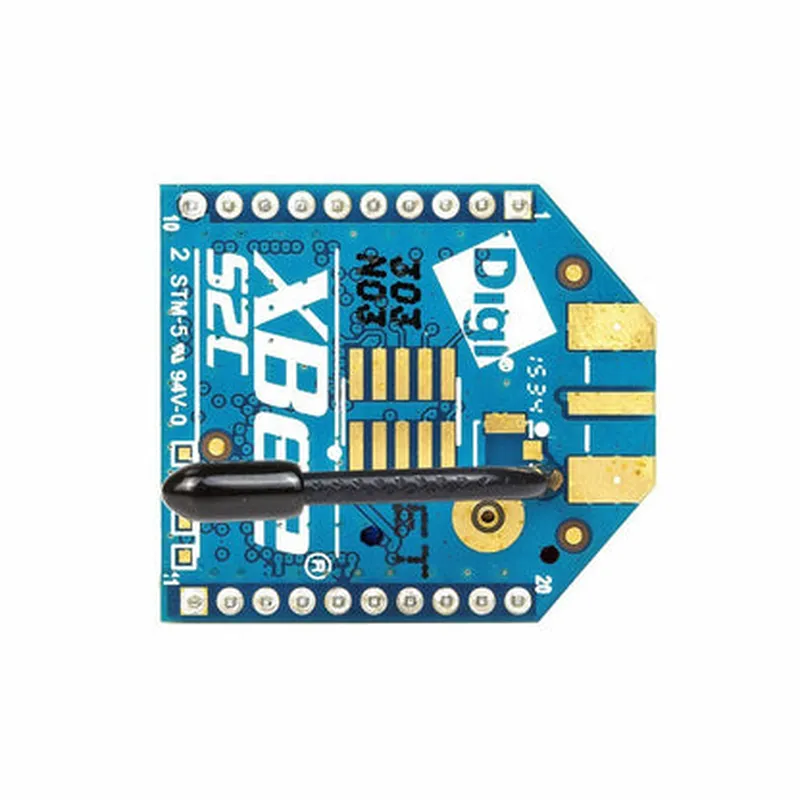

Xbee S2C 2mW Wireless Module with Antenna

Stufin

Xbee S2C 2mW Wireless Module with Antenna

This product is not available in your location yet

Description: Xbee S2C 2mW Wireless Module with Antenna: 1. Low Power Consumption: This Xbee module operates at a low power of 13mA in sleep mode, making it ideal for battery-powered IoT applications. 2. 2.4GHz ISM Band: It communicates in the globally available Industrial, Scientific and Medical (ISM) band at 2.4GHz frequency, ensuring minimal interference from other wireless devices. 3. Digital Encryption: The module supports AES-128 encryption for secure data transmission between IoT components. 4. IEEE 802.15.4 Standard: This Xbee module adheres to the IEEE 802.15.4 standard, making it compatible with various Zigbee and other IoT networks. 5. Integrated Antenna: The module includes a built-in omni-directional antenna that enhances the wireless signal coverage for up to approximately 30 feet (line of sight). 6. UART Interface: It offers a Universal Asynchronous Receiver/Transmitter (UART) interface, enabling simple integration with microcontrollers and other devices. 7. Easily Configurabl

View Technical Documentation

Specification	Details
Module Type	XBee Series 2 (S2C)
Frequency Range	2.4 GHz
Power Output	2 mW
Data Rate	Up to 250 kbps
Range	Up to 1 km in open environment
Modulation Type	GFSK (Gaussian Frequency-Shift Keying)
Communication Protocol	Zigbee API (AT Command Set)
Antenna Gain	Built-in antenna with gain of 2 dBi
Operating Voltage	3.0 to 3.6 VDC
Current Consumption	15 mA at 3V
Dimensions	17 x 16 x 5 mm
Weight	4 grams
Temperature Range	-40°C to +85°C
Humidity Range	0% to 95% RH
