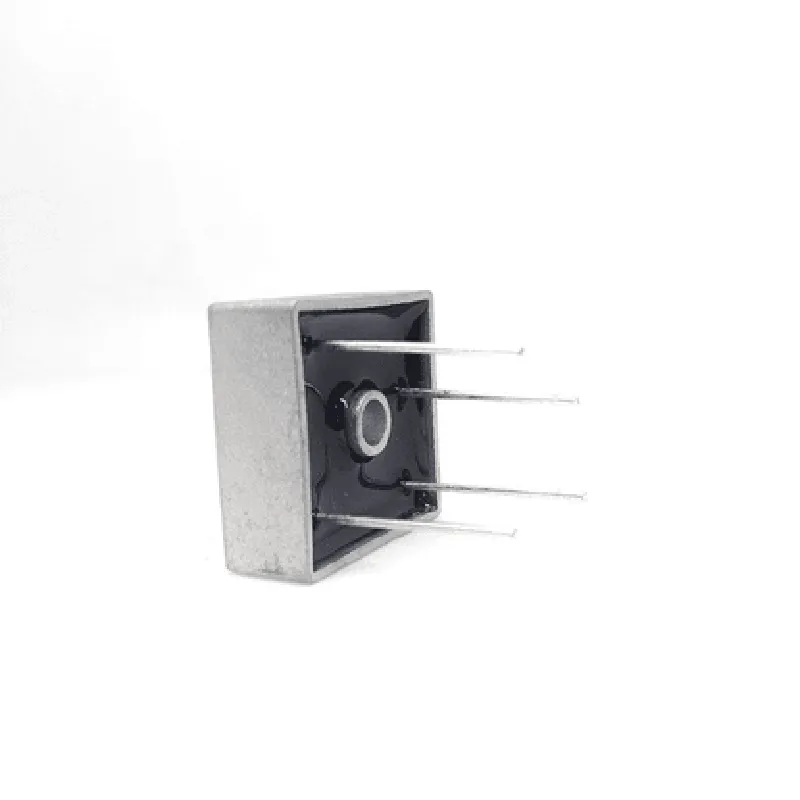

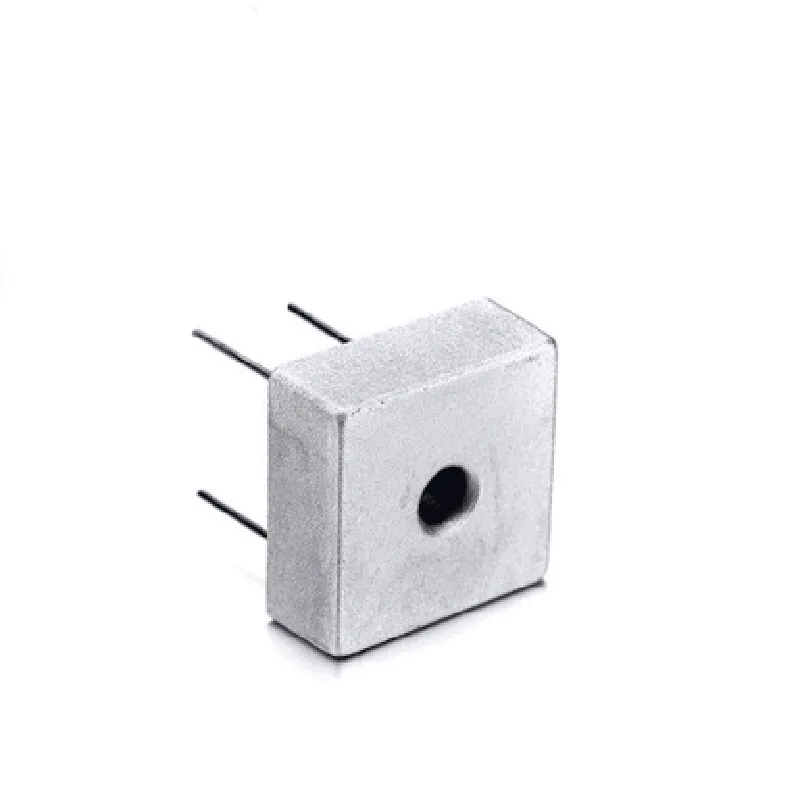

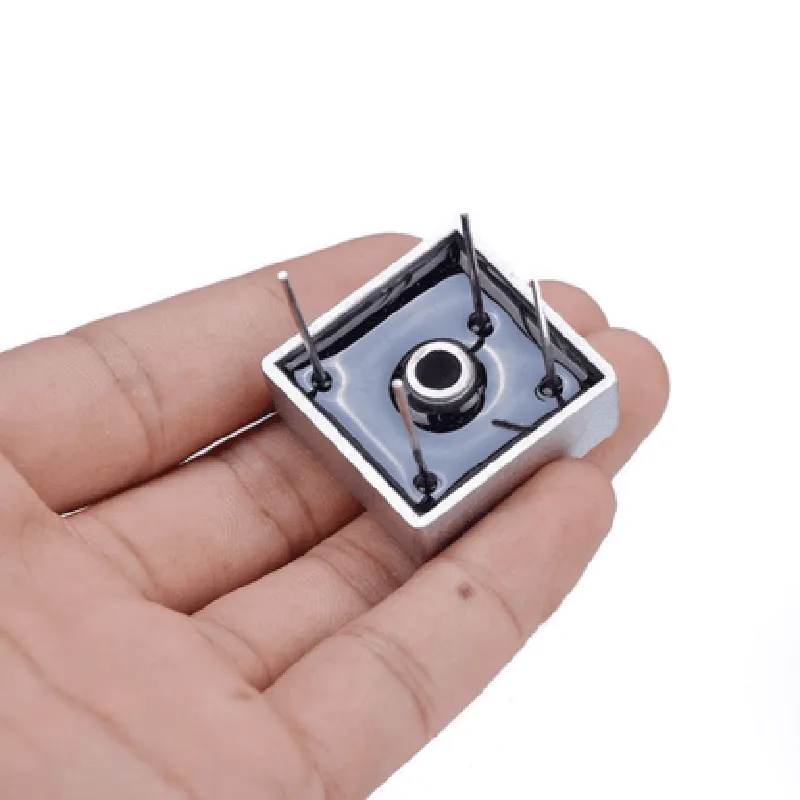

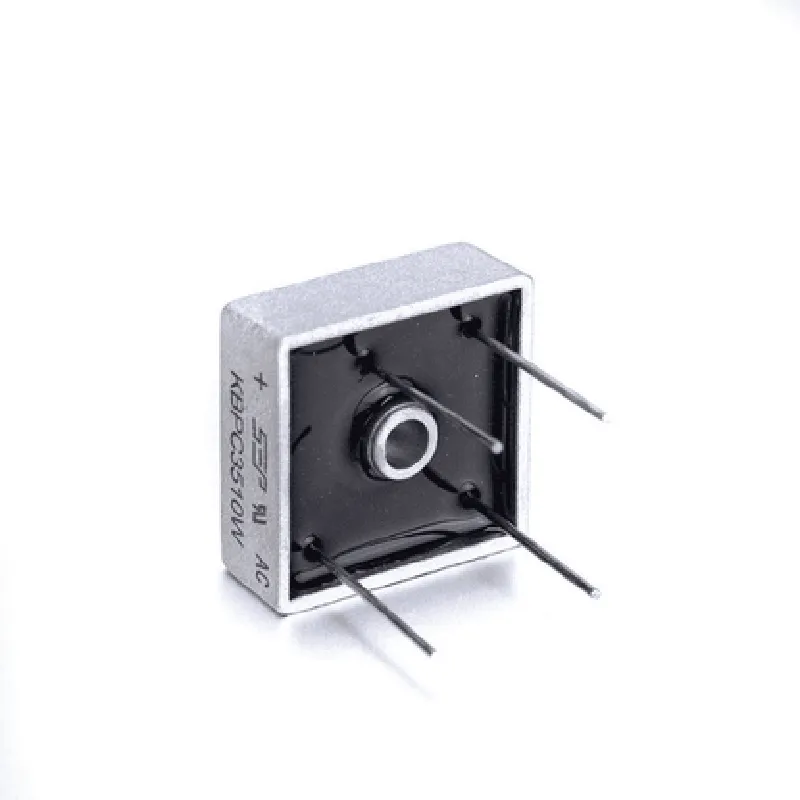

KBPC3510W Rectifier Bridge To Convert Ac Into Dc

This product is not available in your location yet

Description: 1. Overview: The KBPC3510W is a rectifier bridge designed to convert Alternating Current (AC) into Direct Current (DC). It is a crucial component in various power conversion applications, particularly in IoT projects and electrical systems. 2. Design: This bridge rectifier features four diodes arranged symmetrically to allow current flow in one direction only during the rectification process, ensuring DC output. Its compact size (35 x 10 mm) makes it ideal for space-constrained applications. 3. Rated Voltage and Current: With a maximum voltage rating of 1000V AC and a current capacity of 30A, this rectifier bridge can handle heavy electrical loads, making it suitable for industrial IoT projects and power supplies in large-scale systems. 4. Efficiency: The KBPC3510W boasts high efficiency, converting most of the input AC energy into output DC, reducing heat generation and improving overall system performance. 5. Versatile Applications: This rectifier bridge is widely used in variou

View Technical Documentation

Specification	Details
Part Number	KBPC3510W
Description	Full Wave Rectifier Bridge Diode
Voltage Rating	1000V
Current Rating	35A
Package Type	TO-247
Diode Configuration	Single (Bridge)
Forward Voltage Drop	1.05V
Reverse Recovery Time	150ns
Junction Temperature	-55°C to +175°C
Storage Temperature	-65°C to +150°C
Mounting Type	Through Hole
Operating Frequency	Up to 100 kHz
Peak Inverse Voltage	1200V (at 35A)
