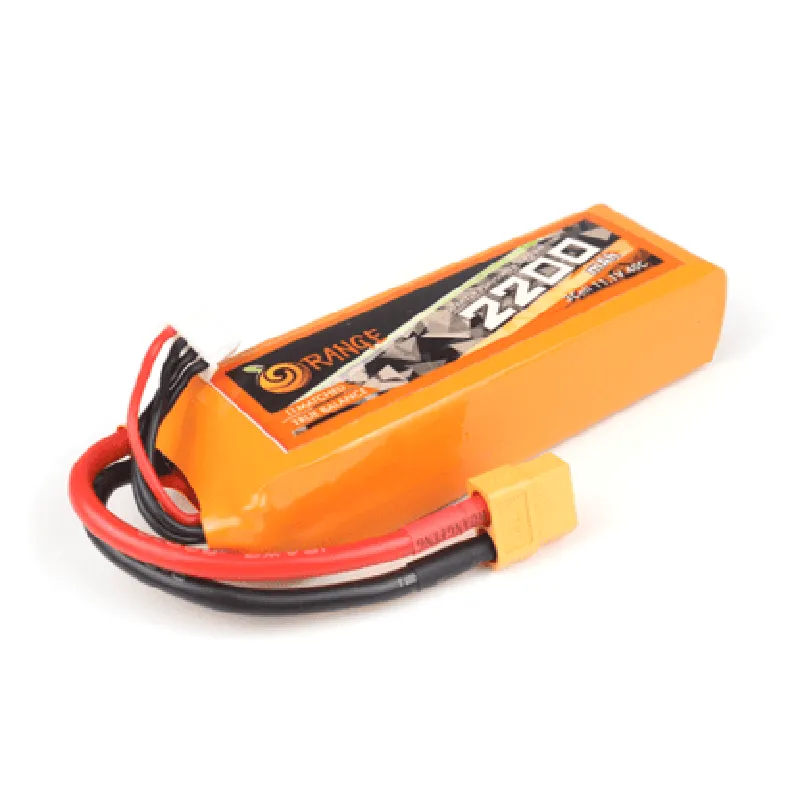

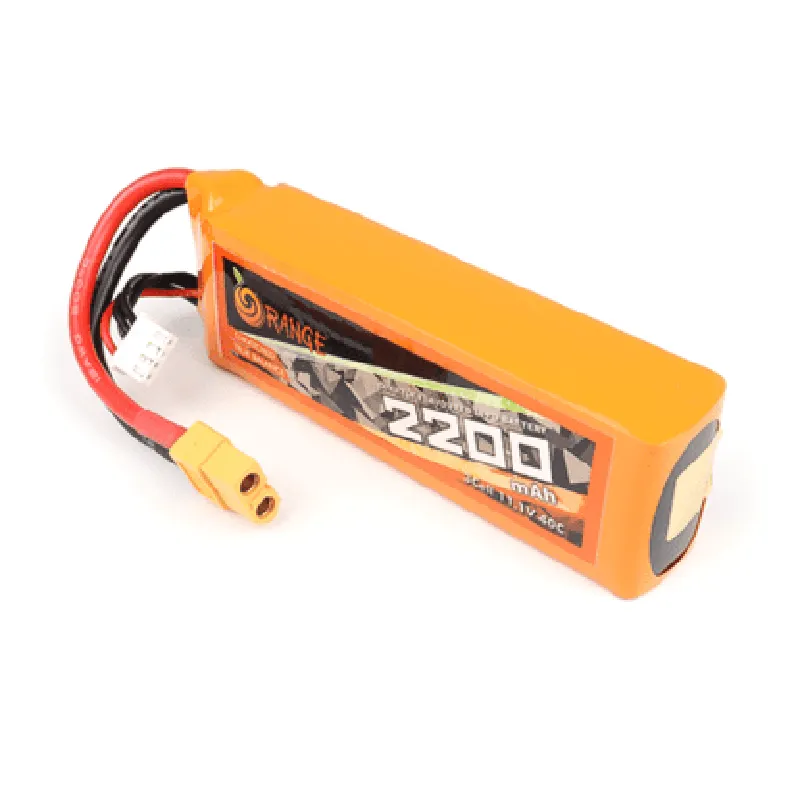

11.1V 2200mAh 3S 40C/80C Lithium polymer battery

Stufin

11.1V 2200mAh 3S 40C/80C Lithium polymer battery

This product is not available in your location yet

Description: 1. Voltage & Capacity: This 11.1V lithium polymer battery provides a nominal voltage of 11.1V with a total energy capacity of 2200mAh, suitable for powering 3S systems. 2. Discharge Rate: Offers high discharge rates of up to 40C or 80C, allowing for quick battery discharge in power-intensive applications without compromising performance. 3. Dimensions & Weight: Measuring approximately 146mm x 50mm x 25mm (LxWxH) and weighing around 190g, the compact size makes it ideal for portable devices or space-constrained projects. 4. Construction Materials: High-quality lithium polymer cells ensure long cycle life, excellent charge/discharge efficiency, and a high degree of safety compared to traditional lead-acid batteries. 5. Safe Charging & Discharging: Features overcharge, overvoltage, and short circuit protection to prevent battery damage during charging or discharging processes. 6. Operating Temperature Range: Operates efficiently between 0°C to 60°C, making it suitable for a wide ran

View Technical Documentation

Specification	Details
Nominal Voltage	11.1V
Nominal Capacity	2200mAh
Cell Type	Lithium Polymer (LiPo)
Number of Cells	3S
Discharge Rate	40C (Continuous) 80C (Peak)
Cycle Life	400-500 cycles
Self-Discharge Rate	<0.5% per month
Operating Temperature	-20°C to +60°C (Storage: -30°C to +45°C)
Chemistry	Lithium Cobalt Oxide (LiCoO2)
Maximum Charge Current	4.4A (40C)
Maximum Discharge Current	8.8A (80C)
