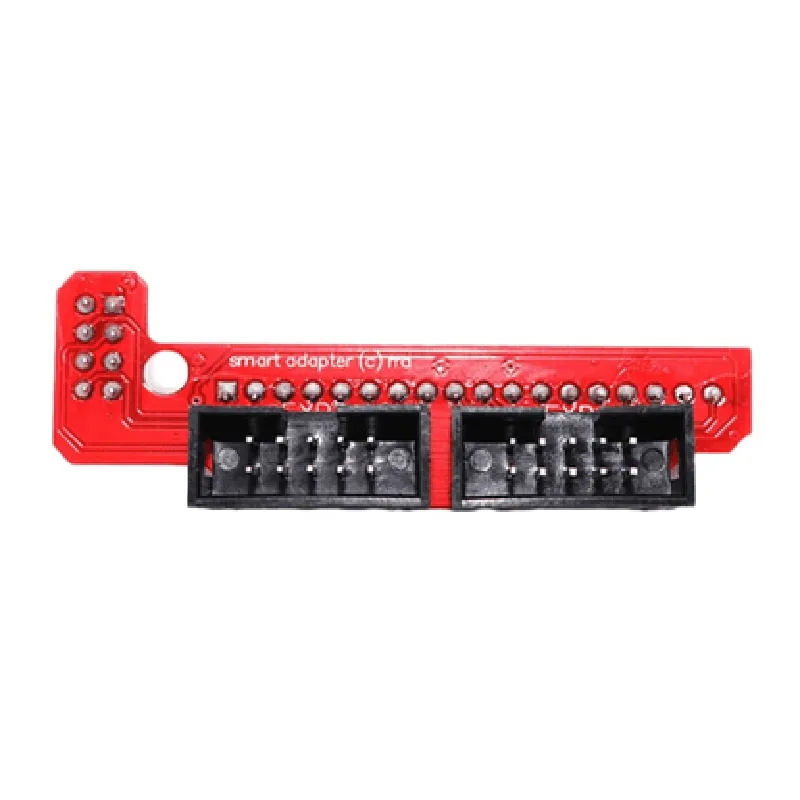

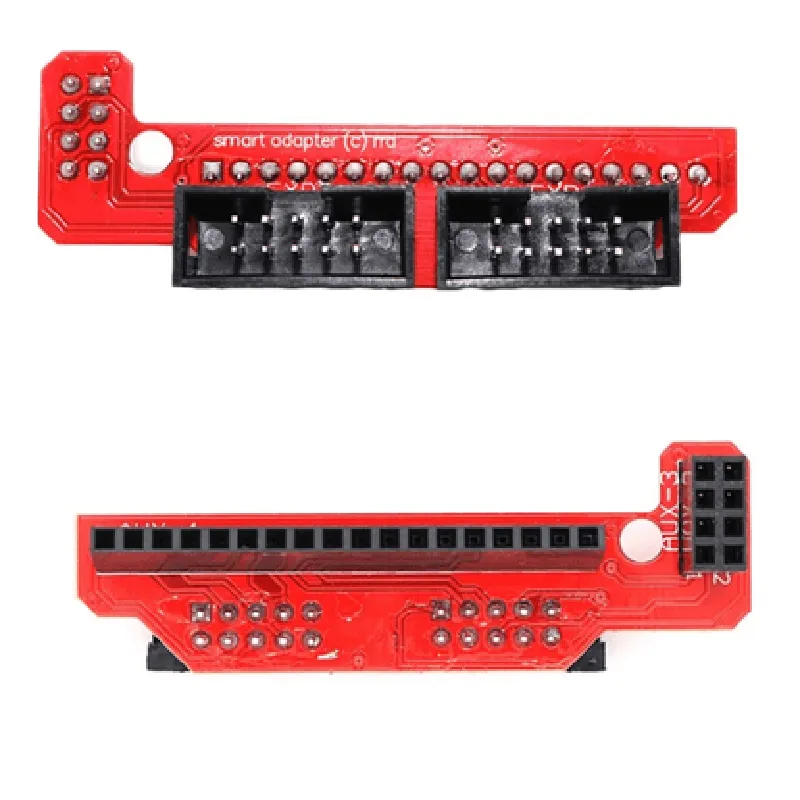

Description: 1. The 3D Printer Ramps 1.4 Adapter LCD2004 Module is a versatile add-on designed to upgrade the control system of various 3D printers. It's specifically engineered for use with RAMPS 1.4 controller boards. 2. This adapter features an integrated 12864 Control Panel Adapter Display, which provides an intuitive and large graphical LCD interface, enhancing the user experience by making operation more accessible and visual. 3. The module supports a wide range of advanced printer functions, such as temperature control for hot ends and bed, filament selection, and printing parameters customization. 4. It features an SD card reader, enabling users to store and easily access multiple 3D print files remotely without the need for constant computer connection during the printing process. 5. The LCD2004 display is backlit, ensuring clear visibility of the interface even in dimly lit environments or late-night prints. 6. This adapter utilizes a robust and reliable communication protocol betwe
| Specification | Details |
|---|---|
| Display Type | 20x4 Graphic LCD display |
| Resolution | 128x64 pixels |
| Contrast Ratio | 10:1 (adjustable) |
| Viewing Angle | 160° (horiz.) 120° (vert.) |
| Backlight | LED adjustable brightness |
| Interface | UART (2x TTL serial) I2C |
| Communication Speed | Up to 9600 bps (configurable) |
| Power Supply | +5VDC via USB or external power |
| Dimensions | 145 x 55 x 15 mm |
| Weight | Approximately 150g |
| Operating Temperature | -20°C to 70°C (with proper ventilation) |
| Humidity Range | 10% to 80% relative humidity |
