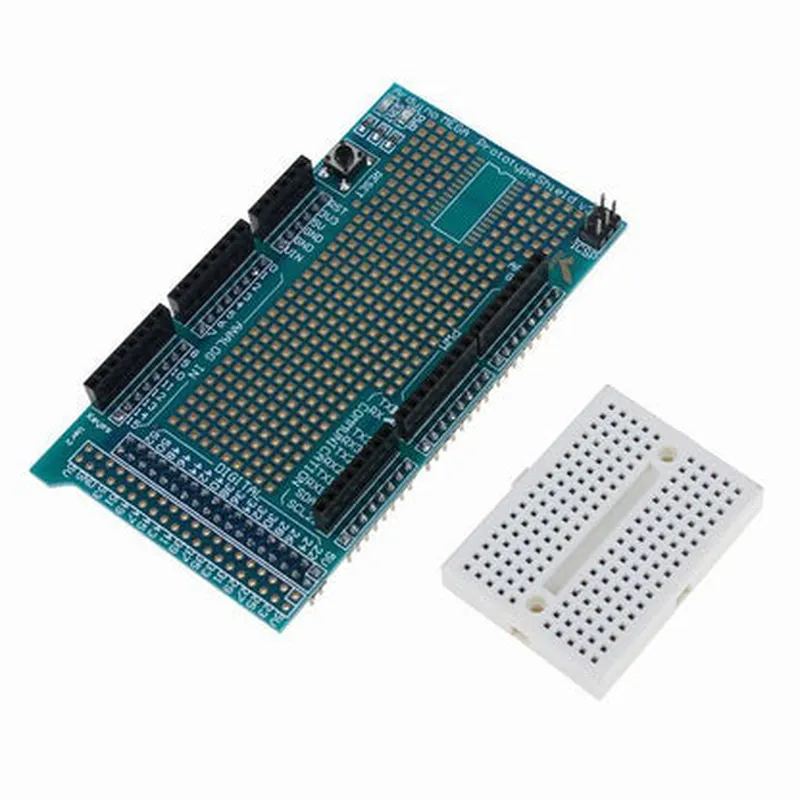

Arduino MEGA Prototype Shield V3

This product is not available in your location yet

Description: 1. Arduino Mega Prototype Shield V3 is an add-on board designed for the Arduino Mega platform, enabling easy and efficient prototyping of complex projects. 2. It features a large prototyping area with 56.72 square inches (365 quadrature holes) for through-hole components and 109 solderless breadboard-compatible header pins for SMT components. 3. Unique benefits include an integrated power distribution system with voltage regulators, fuse protection, and a 16-channel relay controller. 4. The shield comes with two 2x16 LCD text screens (HD44780), allowing easy monitoring and control of your project's data. 5. It includes an integrated real-time clock module for maintaining accurate time and date information, even when the Arduino is powered off. 6. The shield also features an SD card reader, providing 1GB of onboard storage for saving and loading large amounts of data. 7. It has a USB connection for easy programming and powering your project, as well as two 3-pin headers to connec

View Technical Documentation

Specification	Details
Product Name	Arduino MEGA Prototype Shield V3
Board Type	Prototyping shield for Arduino Mega
Compatibility	Arduino Mega (ATmega2560) board
Dimensions	2.1 x 3.4 inches (5.3 x 8.6 cm)
Material	FR-4 ( Flame Retardant High Tg)
Connectors	40-pin header for Arduino Mega
Through-Hole	Available for easy component access
Power Supply	External power supply required
Voltage Rating	+5V DC (Arduino board)
Current Rating	1A (per USB and VIN pins)
Operating Temp	-20°C to 85°C
