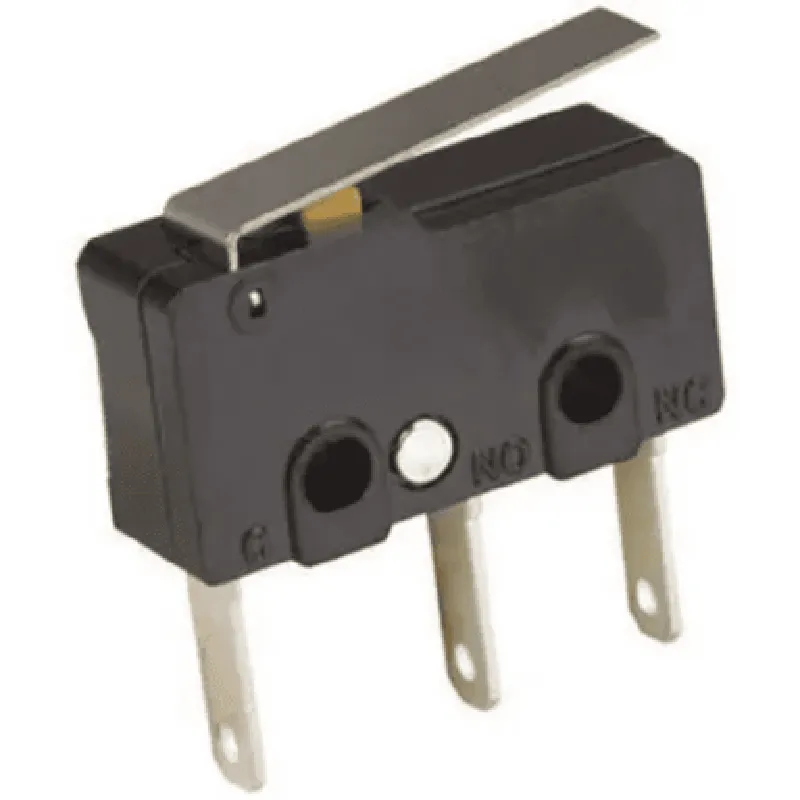

Description: 1. An Arm Lever 15mm switch is a compact SPDT (Single Pole Double Throw) momentary micro limit switch with a 3-pin configuration, designed to operate at a voltage of up to 250V and a current of max 6A. 2. Functionality: This micro switch operates based on the principle of a mechanical lever actuator, where the arm is pressed to complete an electrical circuit momentarily, making it ideal for applications requiring instantaneous response. 3. Size & Ergonomics: With dimensions of approximately 15mm x 20mm x 18mm and a lightweight plastic construction, this switch offers a compact yet robust design that can easily be integrated into various projects. 4. Versatility: The SPDT configuration allows for two separate output circuits to be controlled by one input (switch), providing versatility and convenience in various applications such as automation, security systems, or control panels. 5. Momentary Contact: This switch provides momentary contact, meaning the circuit is only closed while
| Specification | Details |
|---|---|
| Switch Type | SPDT (Single Pole Double Throw) |
| Voltage Rating | 250V AC DC |
| Current Rating | 6A AC DC |
| Actuation Method | Momentary (Push-Button) |
| Pole Configuration | Single Pole with 2 Throws |
| Number of Poles | 3 (3-Pin) |
| Mounting Type | Micro Limit Switch |
| Material | Plastic |
| Operating Temp. | (-20°C to +60°C) |
