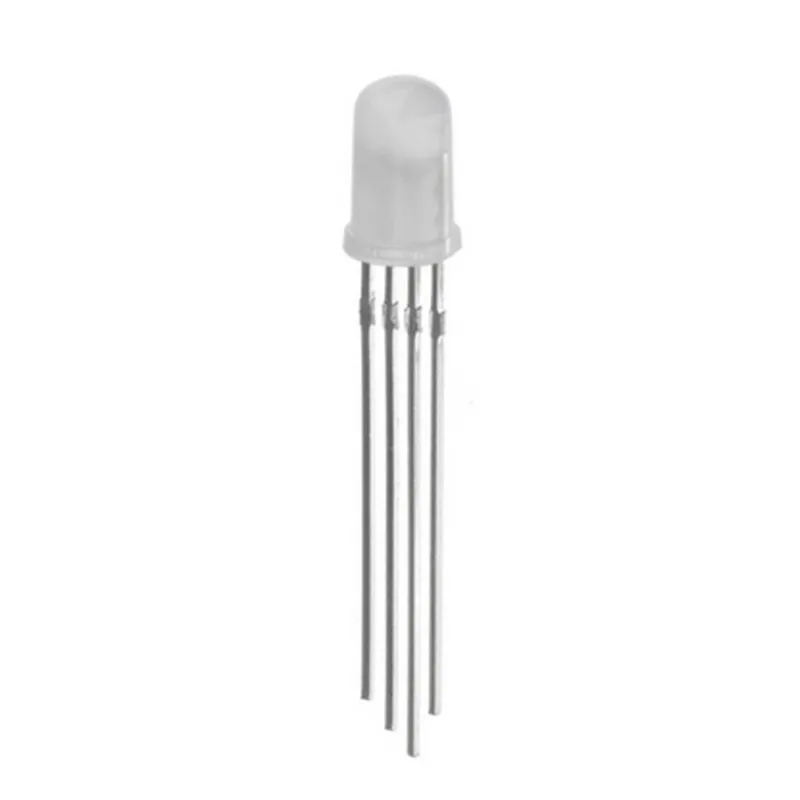

5mm Common Anode RGB LED 4Pin Through Hole White Diffused LED (Pack of 10)

Stufin

5mm Common Anode RGB LED 4Pin Through Hole White Diffused LED (Pack of 10)

This product is not available in your location yet

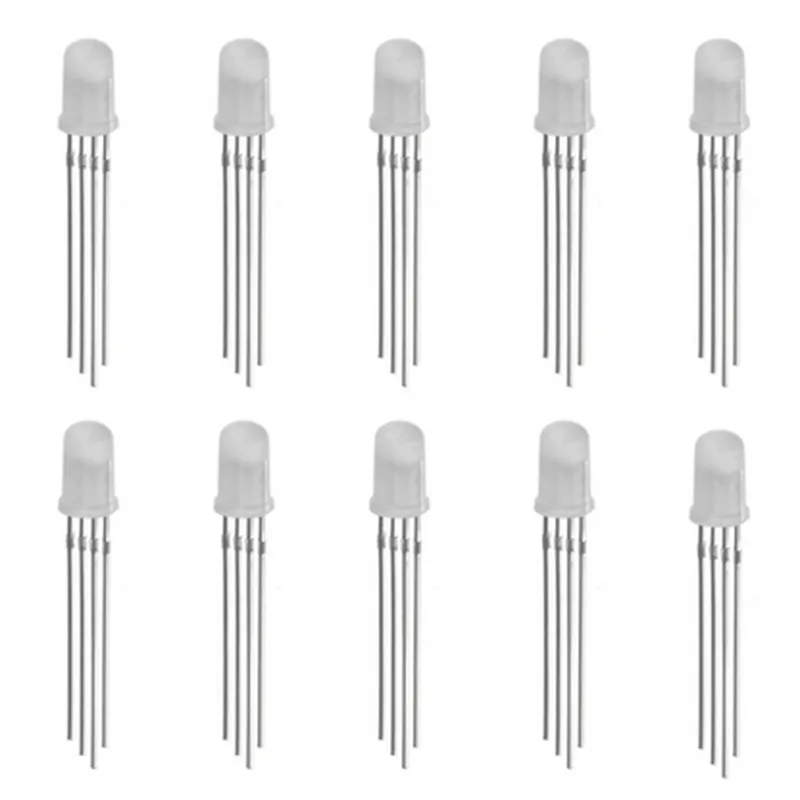

Description: 1. This pack contains 10 pieces of 5mm Common Anode RGB LEDs with a 4-pin through-hole design, featuring white diffused lens. 2. Size & Design: Each LED measures 5mm in diameter and is designed with a common anode configuration, allowing for simpler wiring and control of multiple LEDs using a single cathode. 3. Versatile Applications: RGB LEDs are widely used in various projects like multicolor lighting, indicator lamps, digital signage, and decorative purposes due to their ability to emit multiple colors. 4. Color Control: Using an external constant voltage power source or a microcontroller, these RGB LEDs can be controlled individually to display various colors (red, green, blue), as well as color transitions like fading or flashing. 5. Improved Efficiency: These LEDs have enhanced energy efficiency compared to traditional incandescent and fluorescent lamps, reducing overall power consumption and prolonging their lifespan. 6. Waterproof & Robust: The through-hole design and whi

View Technical Documentation

Specification	Details
Color Temperature	White diffused
LED Type	RGB (Red Green Blue)
Emitter Size	5mm
Anode Type	Common Anode
Pin Configuration	4-pin through hole
Packaging	Pack of 10
Material	Plastic
Operating Voltage	DC 1.8V to 3.6V
Forward Current	up to 20mA per color
Viewing Angle	120°
Luminous Intensity	typ. 500mcd (Red Green) 300mcd (Blue)
