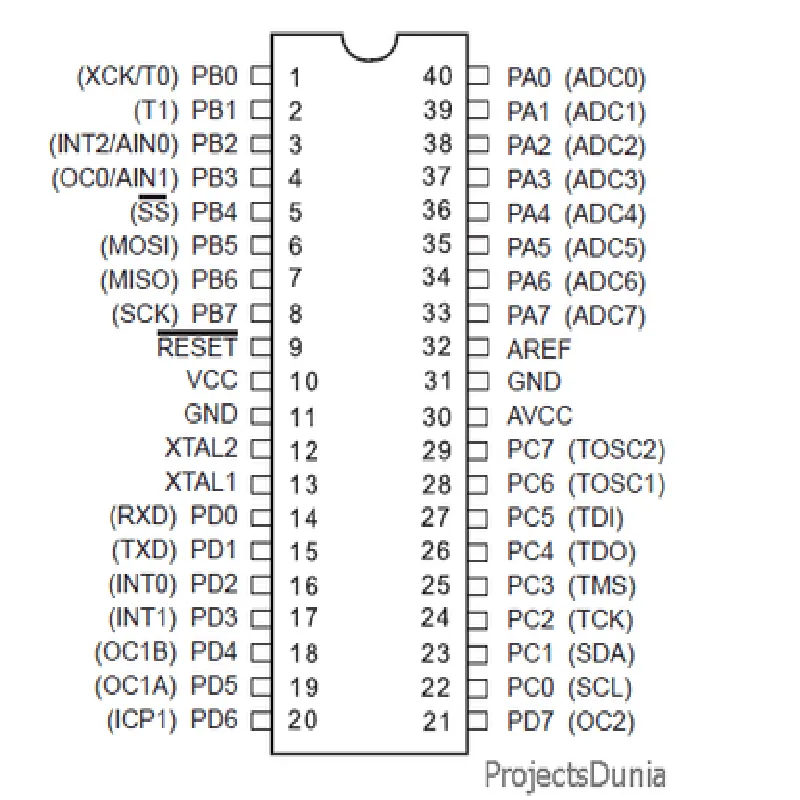

ATmega16

Stufin

This product is not available in your location yet

Description: 1. The ATmega16 is a microcontroller based on the AVR (Atmel Microcontroller RISC) architecture, featuring 16KB ISP flash program memory and 512B SRAM. 2. It operates at a clock speed of up to 20MHz and includes 32 input/output lines for various digital I/O applications. 3. The device integrates several peripherals, such as USART, TWI (I²C), SPI, timers/counters, pulse width modulation (PWM) outputs, analog comparators, and an 8-channel ADC. 4. The ATmega16 supports both C and Assembly language programming via the AVR Studio Integrated Development Environment or other compatible tools. 5. Its low power consumption and small form factor make it ideal for battery-powered applications and space-constrained projects, such as remote sensors and control systems. 6. The microcontroller's extensive I/O lines allow for versatile connections to various IoT devices, including temperature sensors, humidity sensors, light sensors, relays, motors, and more. 7. Its built-in Brown-Out Detector

View Technical Documentation

Specification	Details
Specification	Detail
Microcontroller Type	8-bit RISC AVR (Harvard Architecture)
CPU Speed	Up to 16 MHz (Internal Oscillator) up to 20 MHz (External Clock)
Program Memory (Flash)	16 KB (In-System Programmable)
Data Memory (SRAM)	1 KB (In-SRAM Programmable)
EEPROM	512 bytes (In-System Programmable)
Clock Speed	Up to 20 MHz (External Clock) up to 16 MHz (Internal Oscillator)
Pins	32 pins (Digital I/O Analog I/O and other peripherals)
Operating Voltage	1.8V to 6.0V (with External Regulator) 4.5V to 5.5V (Internal Regulator)
Temperature Range	-40°C to 85°C (Industrial Grade) -55°C to 125°C (AEC-Q100 Grade)
Packages	DIP-28 SOIC-28 TQFP-32 QFN-32
Analog-to-Digital Converter (ADC)	10-bit resolution up to 1 MS/s conversion rate
Timers	8-bit Timer/Counter0 (Prescaler and Compare Match) 16-bit Timer/Counter1 (Prescaler)
Communication Interfaces	UART SPI I2C USART (with 2xUART)
Interrupts	23 interrupts including External Interrupt Request (EIMSK) Timer Overflow and others
