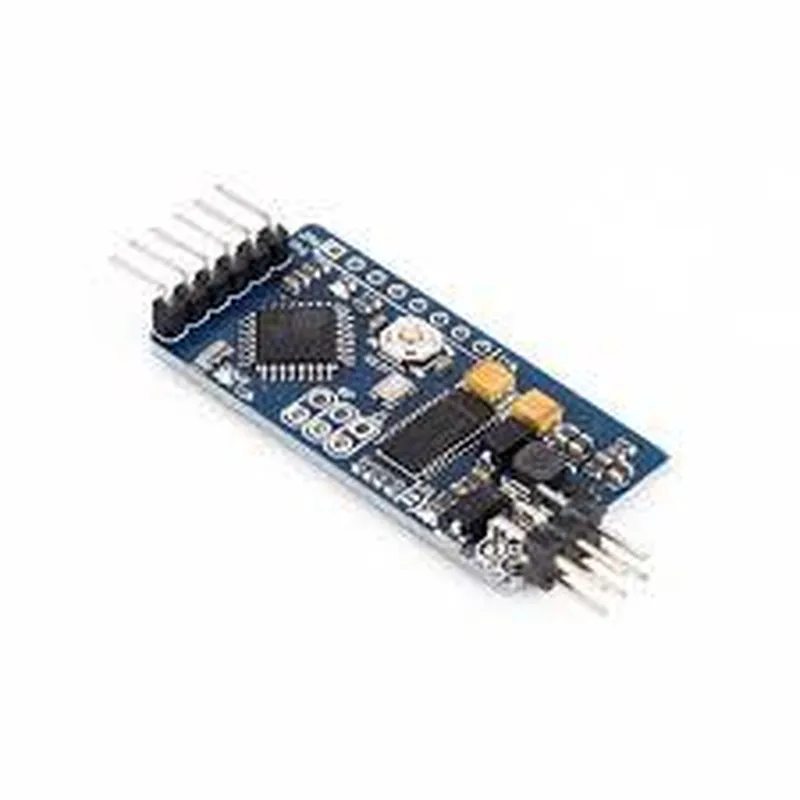

Description: 1. Mini OSD Module is a compact Over-The-Sensor Display (OSD) solution designed specifically for 2.6 inch screens, ideal for use with the APM (AutopilotMega), PIX, and Pixhawk Flight Control Boards. 2. This lightweight component measures only 31mm x 30mm x 7mm, making it an excellent choice for drones and quadcopters where size and weight are crucial factors. 3. The Mini OSD Module offers various customizable display options, including flight data such as altitude, airspeed, GPS coordinates, battery voltage, and more. 4. It features a built-in backlight, allowing for clear visibility of the displayed information in various lighting conditions, ensuring safer and more effective flights. 5. The OSD can be configured via ground control software or through an onboard settings menu, providing flexibility to tailor the display according to individual preferences. 6. This module supports multiple communication protocols like I2C and UART, ensuring compatibility with a wide range of flig
| Specification | Details |
|---|---|
| Power Supply | 3.3V - 5V via USB or power pin |
| Operating Voltage | 4.75V to 5.25V |
| Current Consumption | < 50mA (typical) |
| OSD Resolution | 320x240 (QVGA) 18-bit color |
| Display Mode | Configurable: compass speed altitude etc. |
| Data Interface | I2C via Pixhawk Flight Control Board |
| Temperature Range | -20°C to +70°C |
| Weight | Approximately 10g |
| Dimensions | Approximately 50mm x 30mm x 15mm |
| Certification | CE (Conformité Européene) compliant |
