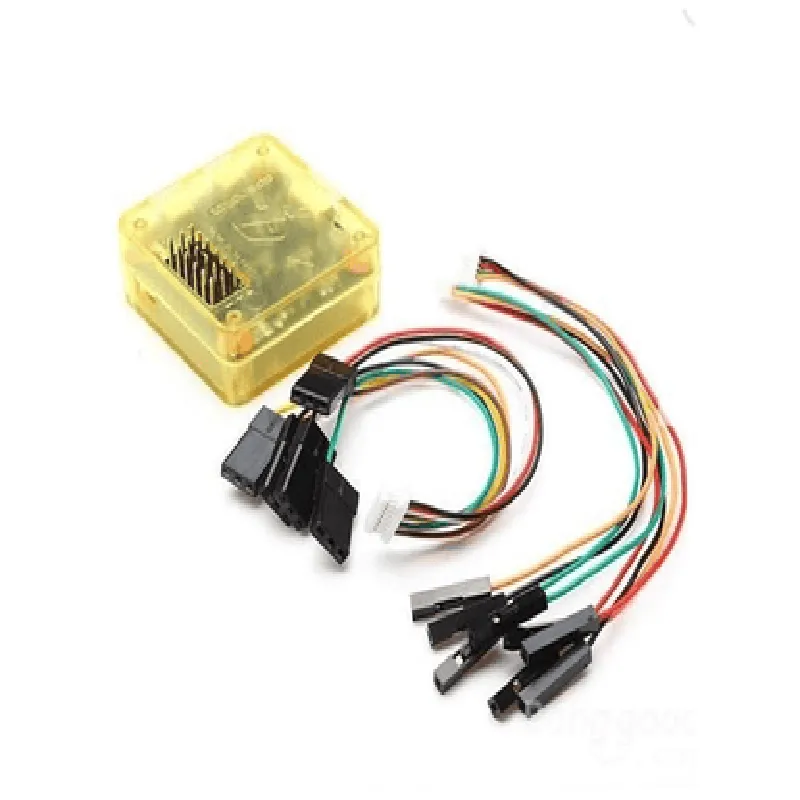

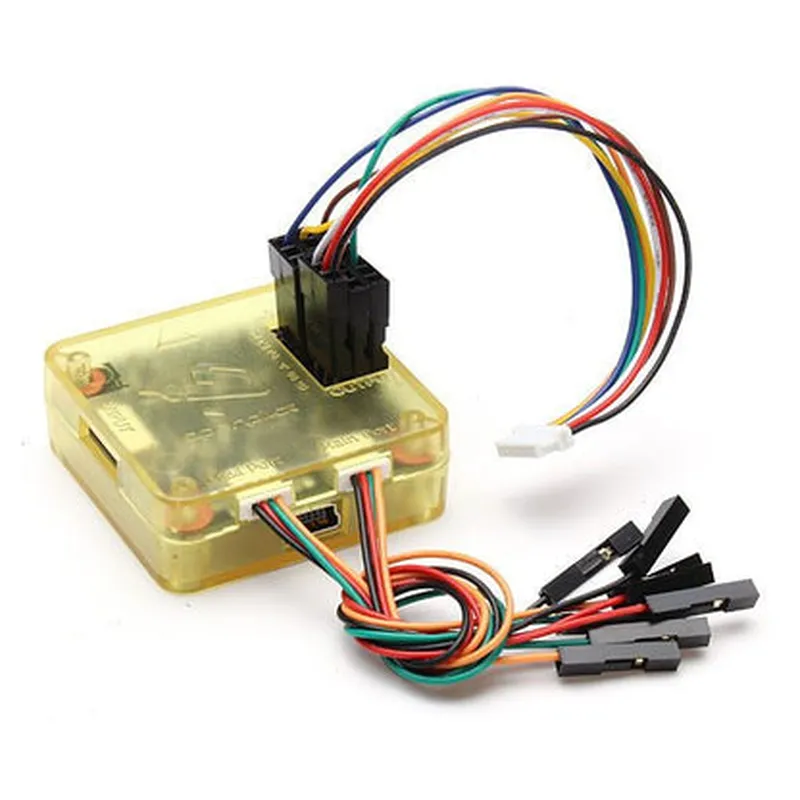

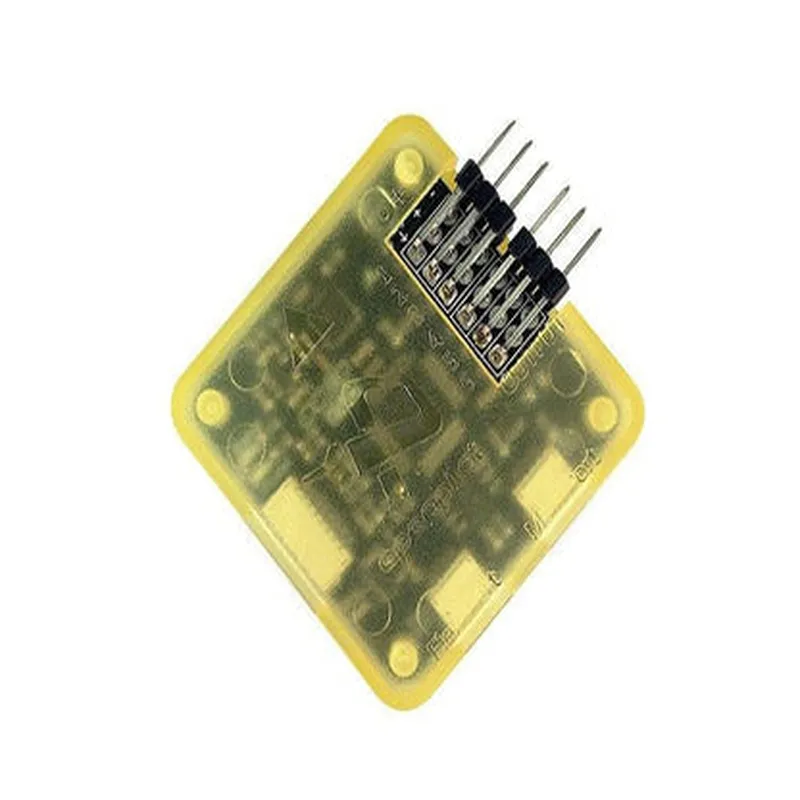

Description: 1. OpenPilot CC3D is a versatile microcontroller-based Flight Controller designed for multi-rotor drones and fixed-wing aircraft, renowned for its open-source autopilot software platform, OpenPilot. 2. Features a powerful 32-bit Cortex-M4 processor that ensures stable flight performance, real-time processing, and enhanced functionality through advanced algorithms and features. 3. Supports various sensors like GPS, barometer, magnetometer, and accelerometer, providing precise attitude estimation, altitude hold, and autonomous navigation capabilities. 4. Offers a wide range of communication interfaces like UART, I²C, SPI, and CAN bus for easy integration with other systems such as receivers, cameras, and sensors. 5. Open-source design allows users to customize firmware, modify code, and create unique features tailored to specific applications and preferences. 6. Provides an extensive library of pre-configured modes (like Manual, Stabilized, Altitude Hold, Loitering, Return Home, Wa
Specification | Details |
---|---|
Processor | F4 series 72 MHz ARM Cortex-M4 |
Memory | 256 KB Flash 32 KB RAM |
Communication | USB (Micro-USB) UART I2C SPI |
Sensor Support | Accel Gyro Mag Baro GPS |
Flight Modes | Altitude Hold Loiter Circle |
Voltage Input | 2S-6S LiPo (7.4V - 26.8V) |
Current Output | 5A max (motor output) |
PWM Outputs | 5x PWM outputs (1-10ms) |
Telemetry | Telemeter data via USB or Serial |
OSD Support | Built-in OSD Betaflight Config |
Weight | ~20g |
Dimensions | 50mm x 40mm x 10mm (2.0 x 1.6 x 0.4) |
Operating Temp | -25°C to 55°C |
