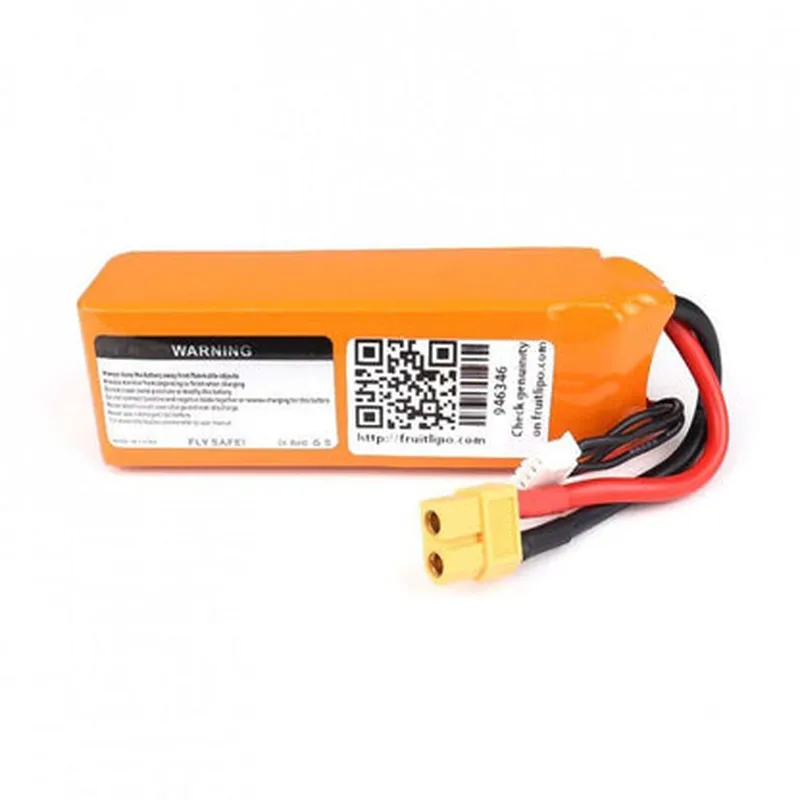

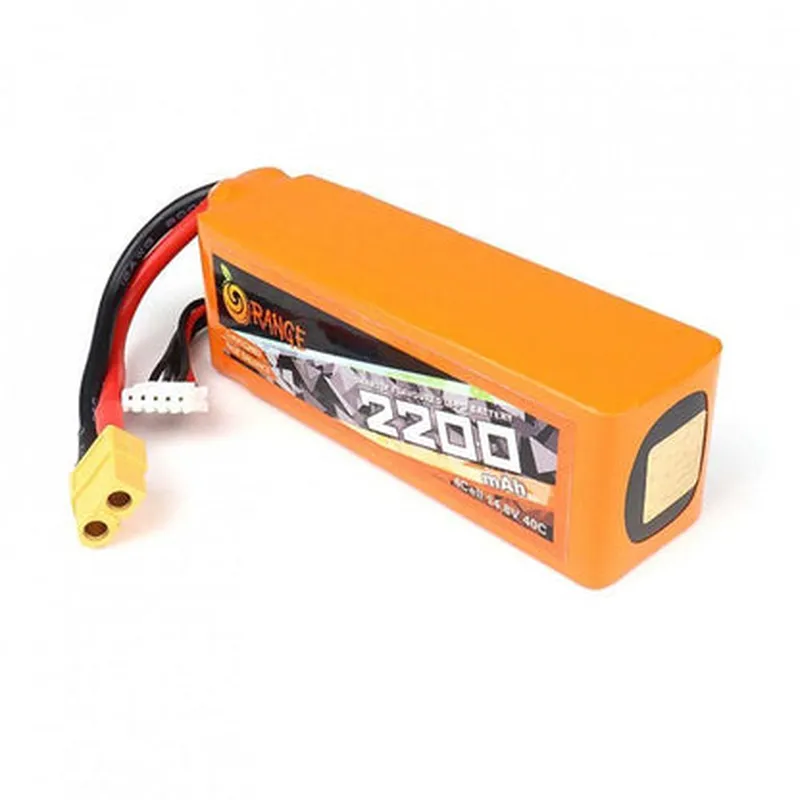

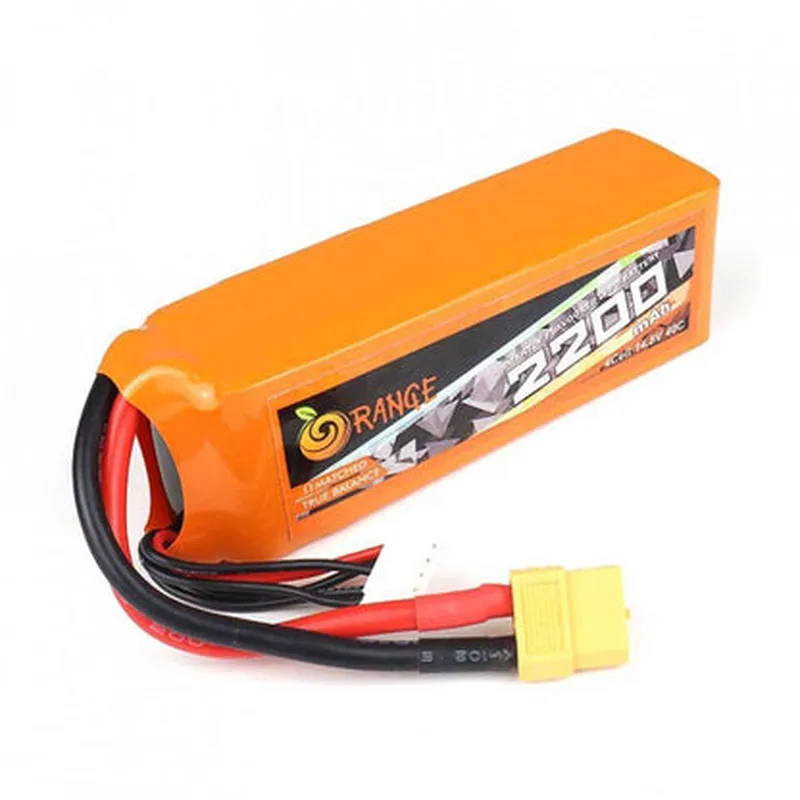

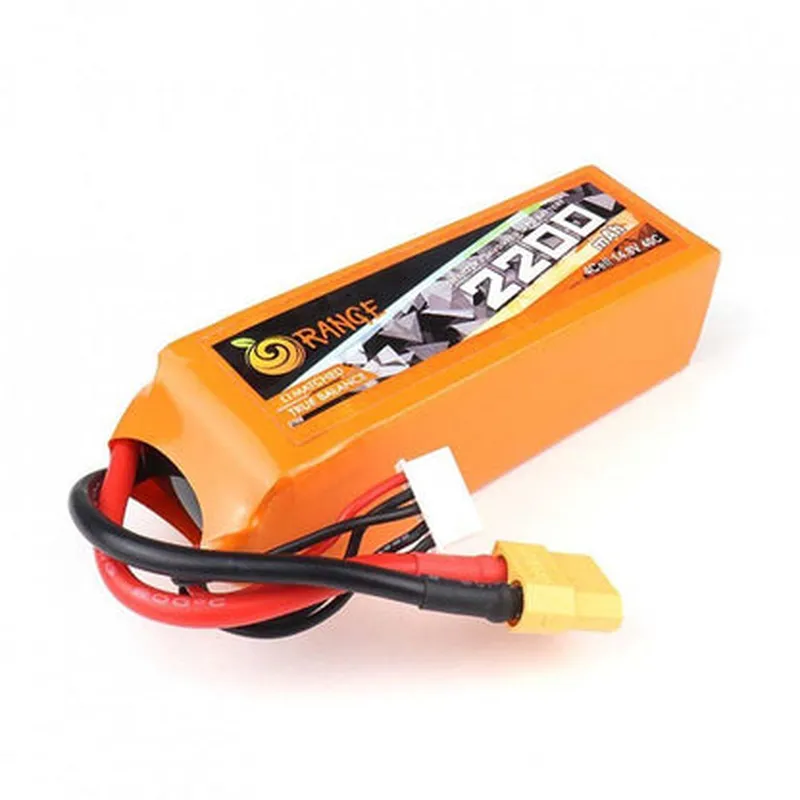

Description: 1. A high-performance 14.8V (nominal voltage), 2200mAh (capacity) Lithium Polymer (LiPo) battery designed for use in 4S (four series) configurations, supporting continuous discharge rates from 40C to 80C. 2. Construction: Features four individual 3.7V LiPo cells arranged in a 4S configuration to deliver the specified voltage and capacity. Each cell employs high-quality lithium cobalt oxide chemistry for optimal energy density, low self-discharge rate, and long cycle life. 3. High Discharge Rates: Capable of delivering a continuous discharge current of up to 80C (or 256A), making it suitable for high power applications such as drones, RC cars, or robots demanding quick energy release. 4. Protection Circuitry: Equipped with advanced Battery Management System (BMS) protection circuitry that safeguards the battery from overcharging, deep discharge, short circuits, and temperature extremes for enhanced safety and longevity. 5. Dimensions & Weight: Measuring at approximately 165mm x 72m
| Specification | Details |
|---|---|
| Nominal Voltage | 14.8V (4S) |
| Capacity | 2200mAh |
| Peak Discharge Rate | 40C (88A) |
| Continuous Discharge | 80C (176A) |
| Cycle Life | 400-500 cycles |
| Self-Discharge Rate | <10% per month |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +45°C |
| Dimensions | Length: 146mm Width: 66.5mm Height: 18mm |
| Weight | Approximately 250g |
| Chemistry | Lithium Polymer (LiPo) |
1. Capacity and Voltage: Witt...
1. Specifications: The Bonka ...

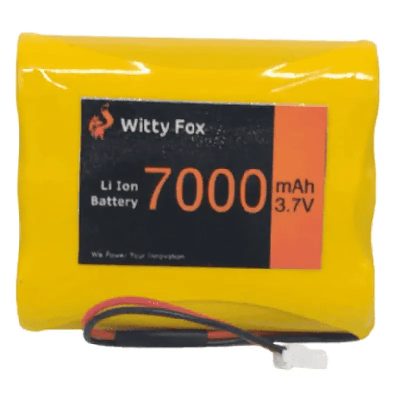

1. Capacity: The Witty Fox 3....
1. Features: This 11.1V, 2200...
1. Capacity: The Witty Fox 11...

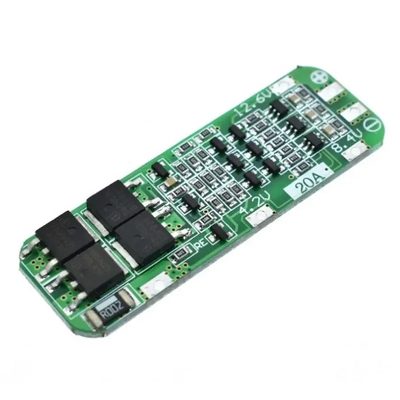

1. Protection Board Overview:...
