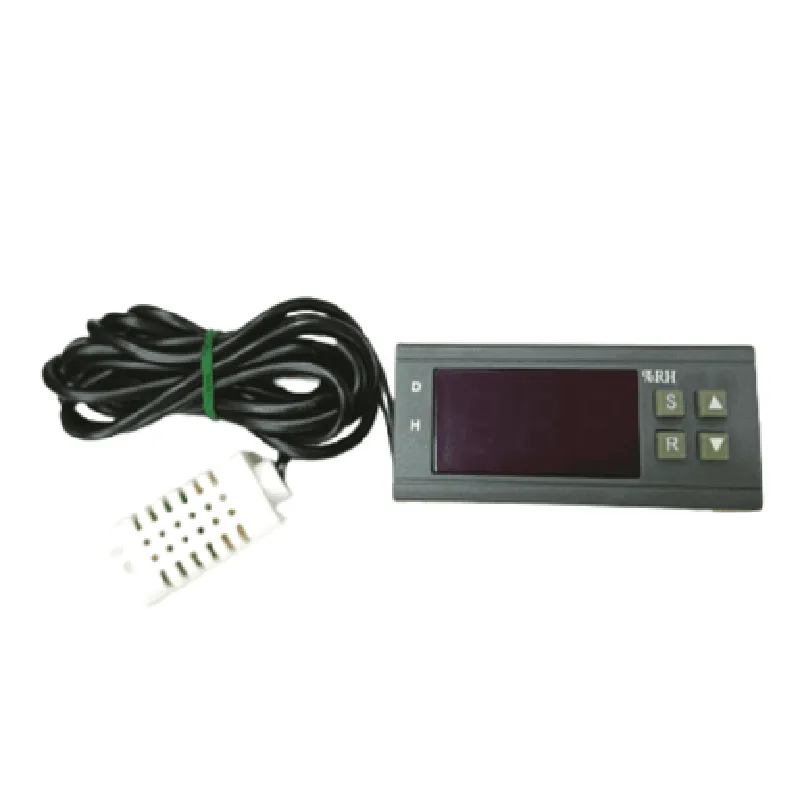

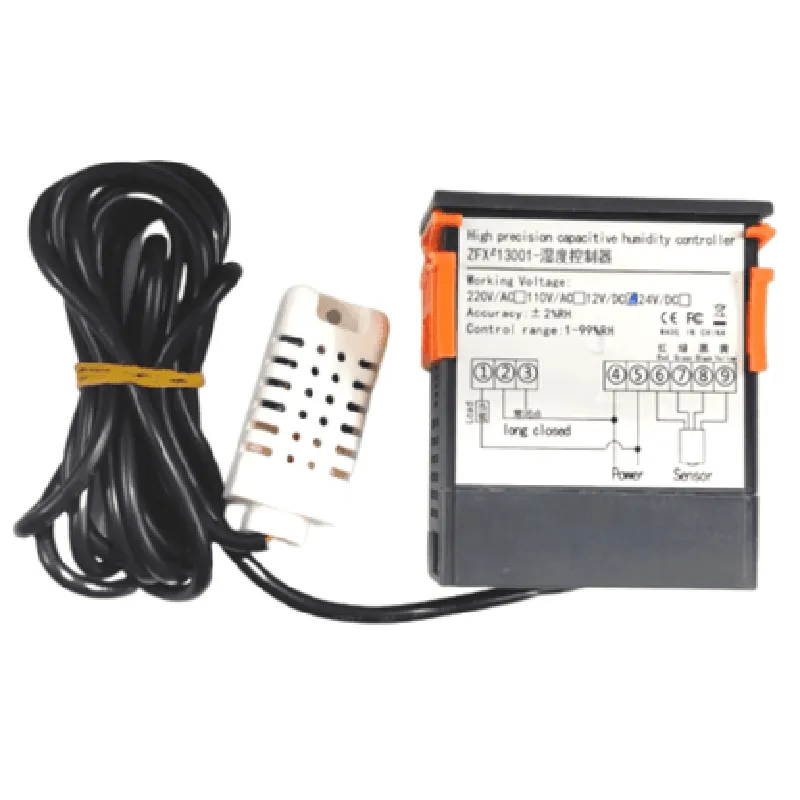

ZFX-13001 12V DC High Precision Capacitive Humidity Controller
ZFX-13001 12V DC High Precision Capacitive Humidity Controller
ZFX-13001 12V DC High Precision Capacitive Humidity Controller
ZFX-13001 12V DC High Precision Capacitive Humidity Controller

ZFX-13001 12V DC High Precision Capacitive Humidity Controller

This product is not available in your location yet

Description: 1. The ZFX-13001 is a high precision capacitive humidifier controller specifically designed for 12V DC applications in IoT systems. 2. It features a digital sensor that measures relative humidity levels with an accuracy of ±3% RH and a measurement range from 0% to 95%. 3. This controller includes a built-in heater element, allowing it to maintain the setpoint temperature while controlling the humidity level in confined spaces such as greenhouses or climate controlled environments. 4. It comes with adjustable hysteresis settings to ensure stable humidity levels and prevent oscillation between target values, improving energy efficiency. 5. The ZFX-13001 provides an output signal of 0-10V DC proportional to the current relative humidity level, which can be used to control other components like solenoid valves or fans in an HVAC system. 6. Users can set two separate temperature and relative humidity levels (low and high) for automatic operation, ensuring optimal conditions for specif

Specification Details
Power Supply 12V DC 1A (external power adapter required)
Humidity Range 0-100% RH ±2% accuracy
Temperature Range 10°C to 40°C (14°F to 104°F) -20°C to 60°C (-4°F to 140°F) for storage and transport
Relative Humidity Accuracy ±3% relative humidity at 25°C (77°F)
Humidity Sensing Method Capacitive sensor no contact or maintenance required
Output Signal Analog output: 0-5V linear response
Response Time <30 seconds for 63% of full scale
Calibration Options Factory-calibrated user-calibration available
Dimensions 90mm x 65mm x 25mm (3.54 in x 2.55 in x 0.98 in)
Weight approximately 120 grams (4.3 oz)
Operating Conditions Humidity: 20-80% RH Temperature: -10°C to 40°C (14°F to 104°F)
Storage Conditions Humidity: 0-100% RH Temperature: -20°C to 60°C (-4°F to 140°F)
Certifications CE RoHS compliance
