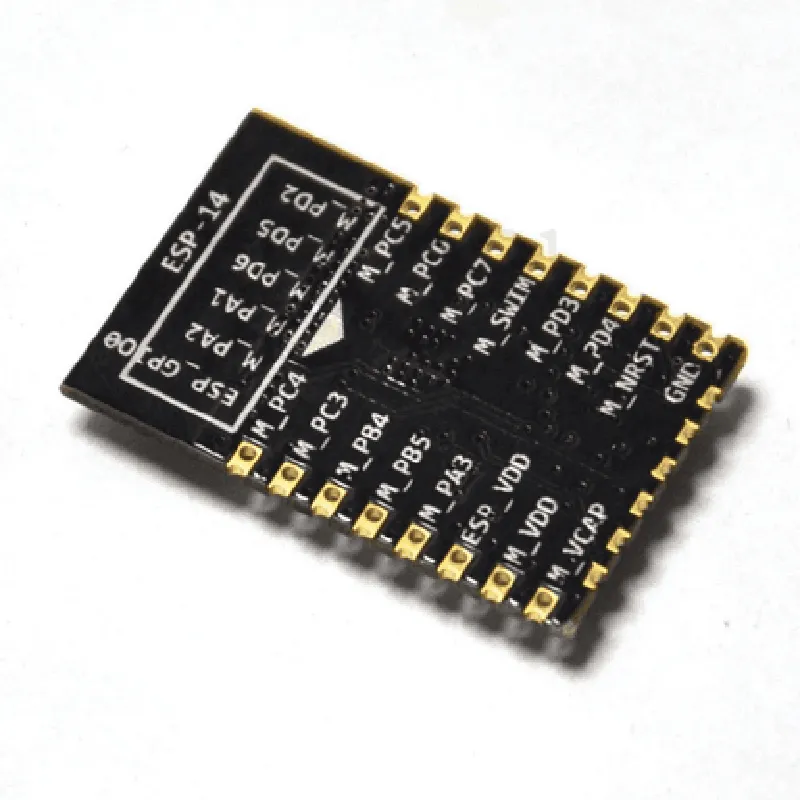

ESP14 ESP8266 Serial Wireless Transceiver WiFi Module AP+STA

Stufin

ESP14 ESP8266 Serial Wireless Transceiver WiFi Module AP+STA

This product is not available in your location yet

Description: 1. Microcontroller: The ESP14 module is based on the ESP8266 WiFi chip, a powerful microcontroller that supports both AP (Access Point) and STA (Station) modes for WiFi connectivity. 2. Serial Communication: This WiFi Module allows for serial communication through its U0RX/TX pins, enabling easy integration with other electronics projects requiring wireless data transmission. 3. Wi-Fi Connectivity: ESP14 offers robust Wi-Fi connectivity, allowing users to access the module using any smartphone, tablet, or computer with an internet connection. 4. Dual-Mode Operation: Operating in both AP and STA modes expands the module's functionality. As AP, it can create a local network; as STA, it can connect to external networks. 5. Programmable: The ESP8266 chip is programmable using Arduino IDE, MicroPython or NodeMCU, offering versatility and extensive customization options. 6. Efficient: Low power consumption makes the ESP14 ideal for battery-powered IoT projects. It supports sleep modes,

View Technical Documentation

Specification	Details
Chipset	ESP8266-14 32-bit RISC CPU
Operating Mode	Wi-Fi AP (Access Point) and STA (Station)
Frequency Band	2.4 GHz ISM band
Data Rate	Up to 150 Mbps
Memory	3.5 KB RAM 512 KB Flash
Serial Interface	UART max baud rate 115200
Power Consumption	Typical: 80 mA (tx) 50 mA (rx)
Operating Voltage	3.3V
Size	54 x 20 mm
Weight	2g
Certifications	FCC CE RoHS
