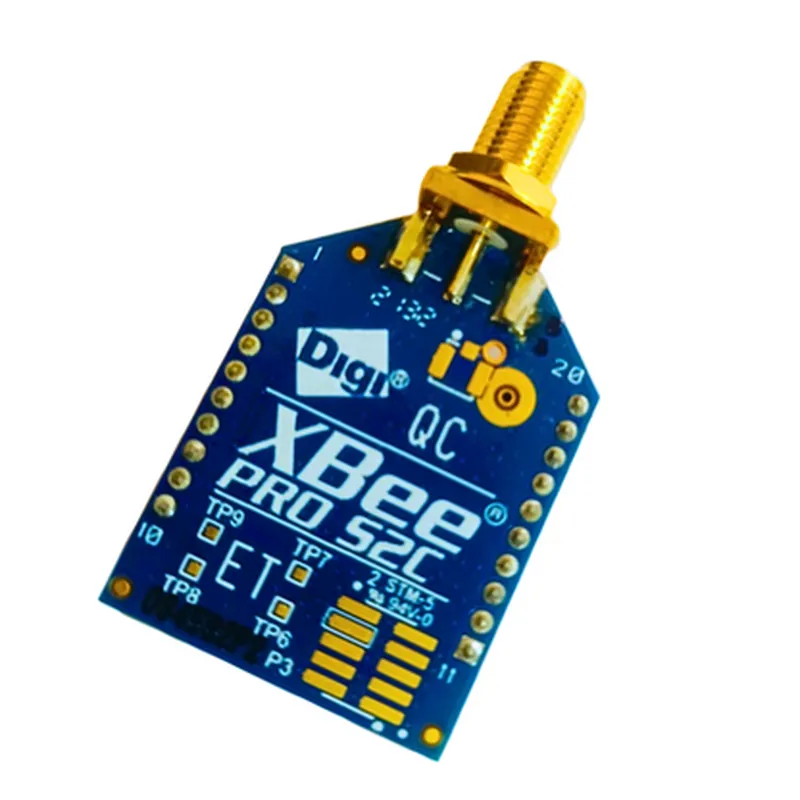

Zigbee XBee Pro S2C 802.15.4 Module 63mW 3Km+ 3.2dBi Antenna

Stufin

Zigbee XBee Pro S2C 802.15.4 Module 63mW 3Km+ 3.2dBi Antenna

This product is currently unavailable

Description: 1. Overview: The XBee Pro S2C Zigbee Module is a wireless communication device based on the Zigbee PRO protocol and IEEE 802.11.4 standard, suitable for building home automation systems, industrial control applications, and IoT projects. 2. Power Consumption: The module operates at a low power consumption of 63mW, allowing it to function efficiently in battery-powered devices while maintaining long battery life. 3. Range: Featuring an integrated 3.2dBi antenna and robust modulation techniques, the XBee Pro S2C achieves exceptional range of up to 3km+ in line-of-sight conditions, enabling extensive coverage for larger installations. 4. Zigbee PRO: This module adheres to Zigbee PRO, a highly efficient wireless communication protocol, ensuring reliable connectivity with reduced power consumption compared to traditional Zigbee modules. 5. Flexible Pin Configurations: With a total of 28 I/O pins, the XBee Pro S2C module offers flexible configurations and allows for seamless integration

View Technical Documentation

Specification	Details
Radio Type	802.15.4 (Zigbee)
Frequency Band	2.4 GHz
Range	Up to 3 km+
Power Output	63 mW
Antenna Gain	3.2 dBi
Data Rate	Up to 250 kbps
Modulation Type	OQPSK (On-Off Quadrature Phase Shift Keying)
Power Consumption	Typically 75mA at 5V
Operating Voltage	2.1 - 3.6 V
Temperature Range	-20°C to 70°C
Humidity Range	0-80% relative humidity
Certifications	FCC Part 15 ICES-003 CE
