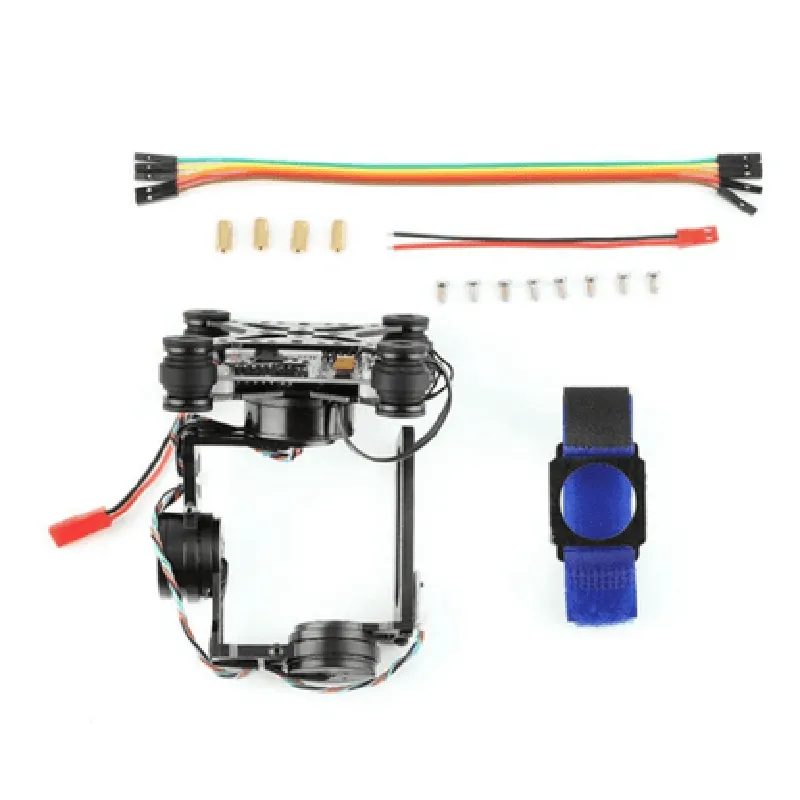

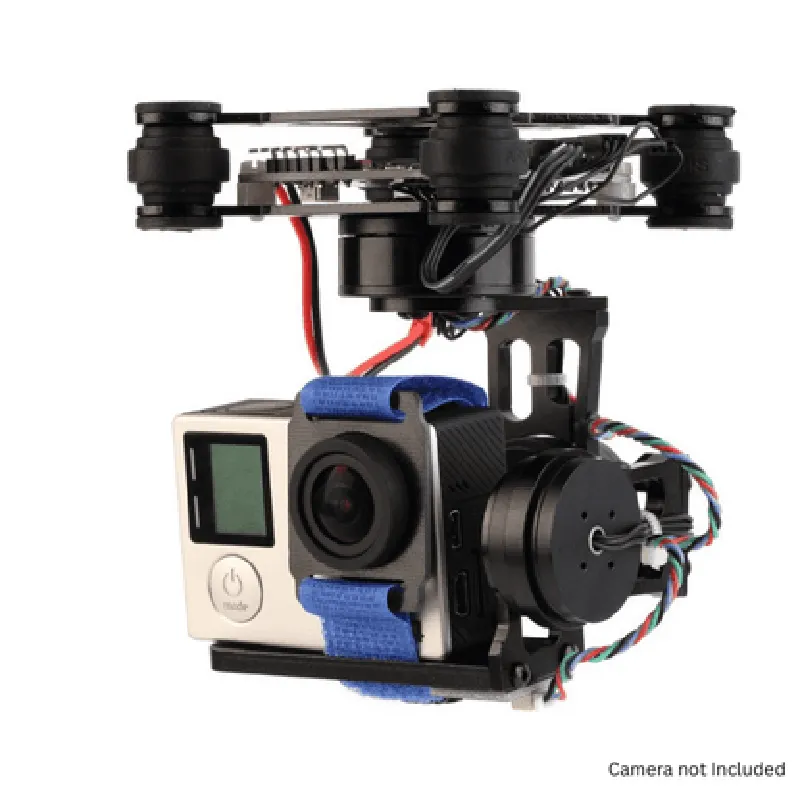

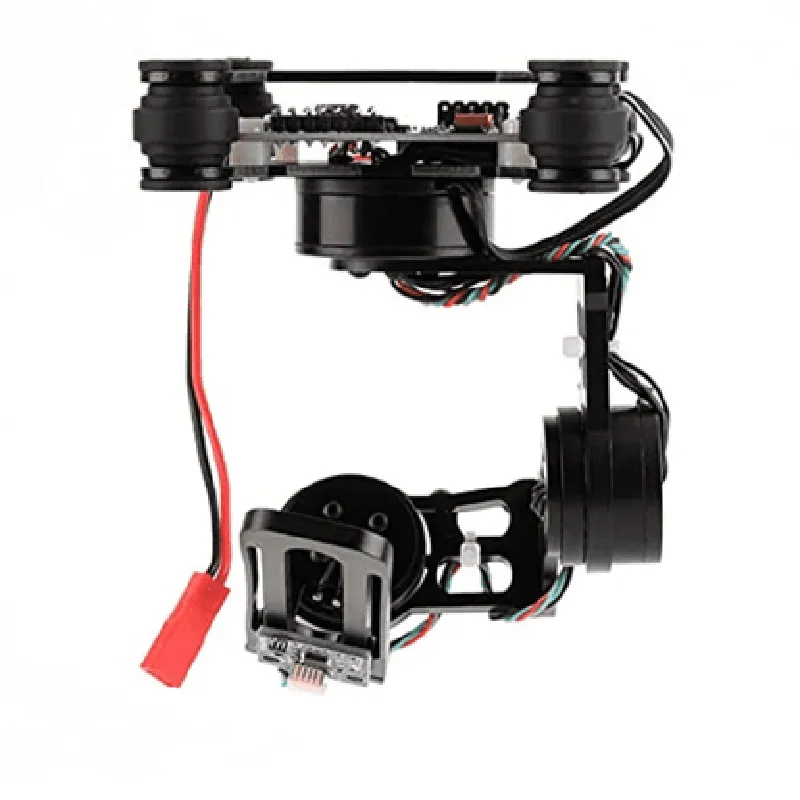

3 Axis FPV Camera Brushless Gimbal with Control Board

This product is not available in your location yet

Description: 1. A high-performance 3-axis FPV (First Person View) Camera Brushless Gimbal is an essential accessory for drone or RC model enthusiasts, providing stabilized footage for real-time video transmission. This gimbal includes a control board for seamless operation. 2. Features: Equipped with three independent axes for roll, pitch, and yaw adjustments, the gimbal ensures stable and smooth camera movements. Brushless motors provide improved torque, responsiveness, and long service life. 3. Control Board: The integrated control board facilitates communication between the gimbal, receiver (RC), and camera. It offers various modes like manual, GPS-assisted, and stabilization modes for optimal performance. 4. Compatibility: Suitable for GoPro cameras and other action cams weighing up to 150g. The gimbal is compatible with most RC models or drones that support 3-axis gimbals and standard servo interfaces. 5. Improved Stability: The gimbal's brushless motor system and stabilization algorithms

View Technical Documentation

Specification	Details
Gimbal Type	3-Axis (Pitch Roll Yaw)
Camera Mounting	Standard 1/4" or M12 thread
Control Algorithm	Advanced stabilization algorithm
Control Board	Built-in control board with

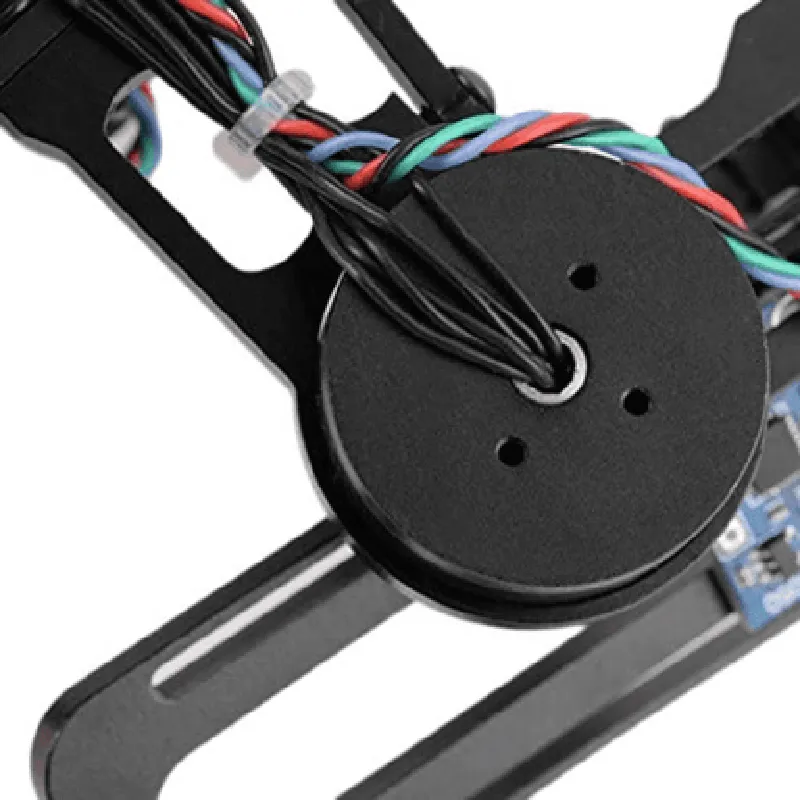

Gimbal Motors	Brushless DC motors (3 x)
Motor Driver	High-performance motor driver
Power Input	2S to 6S LiPo input
Current Draw	Max 5A @ 24V
Stabilization	±0.01° (3-axis)
Angular Velocity	±200°/s
Temperature Range	-10°C to +40°C
Dimensions	120mm x 80mm x 40mm
Weight	Approx. 250g
Material	Durable aluminum alloy
Mounting Options	Standard M4 screws and T-bolts
