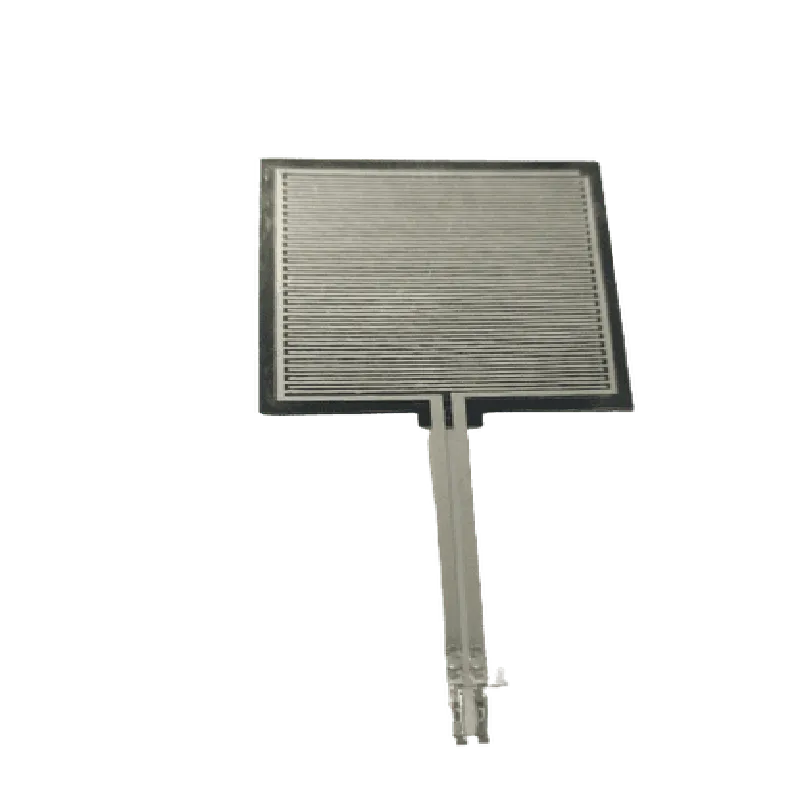

Description: 1. A square-shaped force sensor is an IoT component designed to measure the applied force or pressure in a square area with high precision. 2. Construction: It consists of four equally loaded force sensitive resistors arranged in a square pattern, connected to a microcontroller or an external reader for data acquisition and analysis. 3. Functionality: This sensor measures the change in resistance when a force is applied, which can be converted into accurate force measurements using calibration. 4. Precision & Accuracy: Square shaped force sensors offer high precision (typically up to 1% FS) and accuracy (±2% FS), making them suitable for various applications where precise force measurement is essential. 5. Size & Weight: Compact design allows these sensors to be integrated easily into various projects, even those with size or weight constraints, as they usually have a small footprint and lightweight construction. 6. Versatility: They can be used in a wide range of applications su
| Specification | Details |
|---|---|
| Sensor Type | Capacitive force sensor |
| Shape | Square 10mm x 10mm |
| Material | Stainless Steel (SS) or Aluminum alloy |
| Operating Range | 0-100 N ( adjustable via software calibration) |
| Accuracy | ±2% FS (Full Scale) |
| Resolution | 0.1 N |
| Sampling Rate | Up to 100 Hz (software dependent) |
| Power Consumption | < 10mA powered via I2C or SPI bus |
| Communication Protocol | I2C (default) SPI (optional) |
| Operating Temperature | -20°C to +60°C (industrial temperature range) |
| Storage Temperature | -40°C to +80°C |
| Certifications | CE RoHS compliant |
| Dimensions | 10mm x 10mm x 5mm |
| Weight | approximately 20g |
