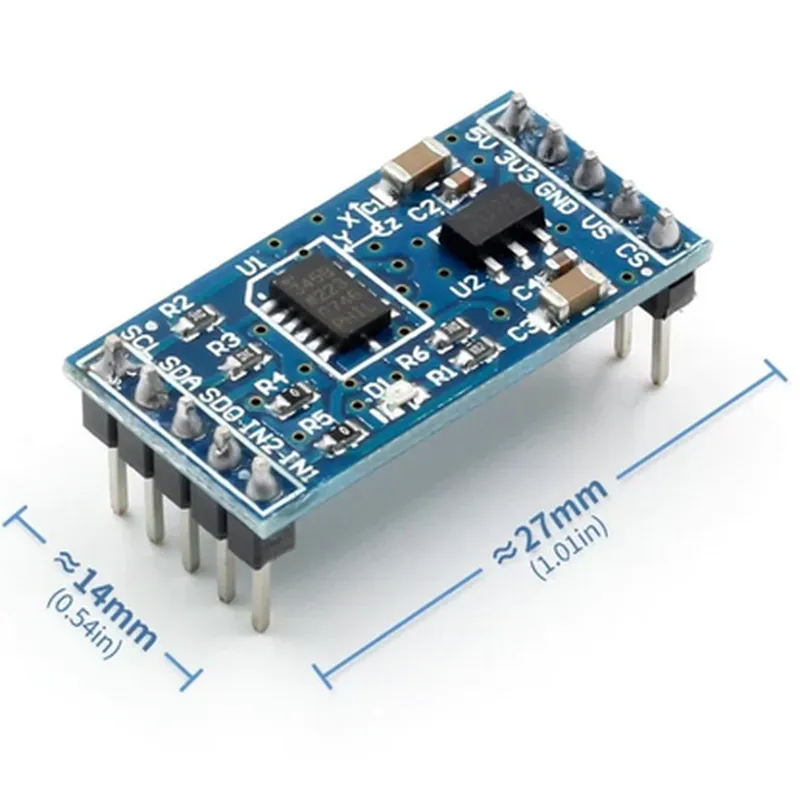

ADXL345 Digital Angle Acceleration Sensor Module

Stufin

ADXL345 Digital Angle Acceleration Sensor Module

This product is not available in your location yet

Description: 1. ADXL345 is a digital angle sensor module based on Analog Devices ADXL345 microelectromechanical system (MEMS) accelerometer. It measures tilt, shock, vibration, and motion in 3 axes (x, y, z). 2. Features: Low power consumption, configurable data rate up to 800 Hz, 12-bit resolution, programmable full-scale range (±2 g, ±4 g, ±6 g, ±8 g, and ±16 g), and built-in temperature sensor. 3. Applications: Widely used in various projects such as robotics, quadcopters, drones, health monitoring systems, tilt sensors, and motion detection devices. 4. Communication Interface: Comes with an I²C interface for easy communication between the sensor module and microcontroller or host controller. 5. Calibration and Self-test: Includes a built-in self-test feature that allows verifying the sensor's output values and calibrating it as needed for accurate readings. 6. Low Noise: Provides low noise floor, which results in high sensitivity to even small motions or changes in orientation. 7. Adjust

View Technical Documentation

Specification	Details
Operating Range	±16g (±160m/s²) ±8g (±80m/s²)
Sampling Rate	Up to 3200 samples/second
Resolution	13-bit up to ±4g
Data Format	2's complement signed data
Interface	SPI (3- or 4-wire) I²C
Power Consumption	0.45mA (active)
Supply Voltage	1.8 to 3.6V
Temperature Range	-40°C to +85°C
Weight	approximately 3 grams
Dimensions	14mm x 12mm x 2mm (L x W x H)
