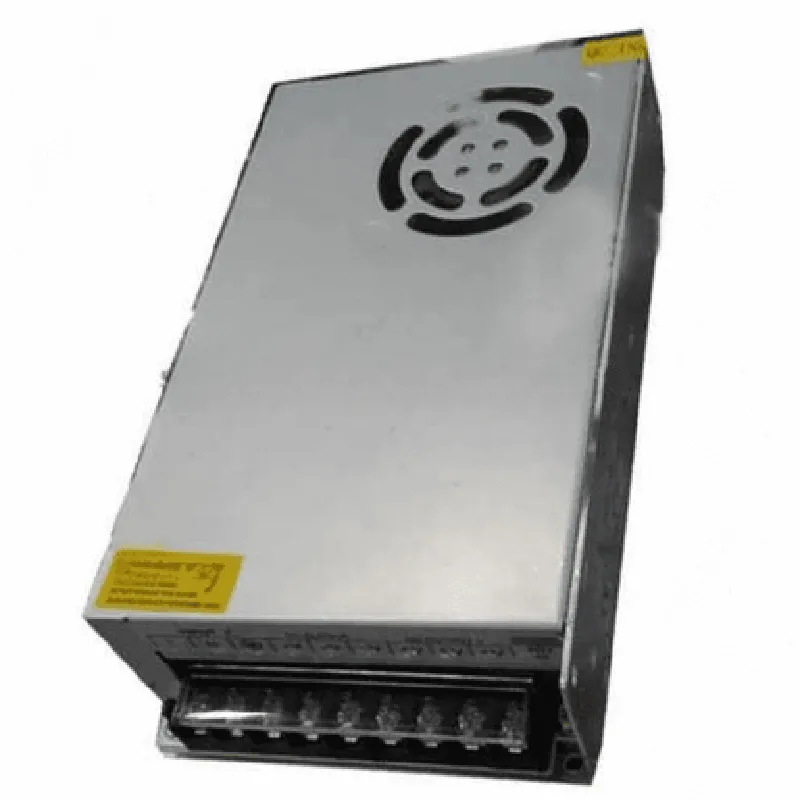

Description: 1. This is a 12V, 15A Switching Mode Power Supply (SMPS) designed to deliver steady power to various IoT components or projects. 2. Voltage & Current Output: It provides a regulated output voltage of 12V with a maximum current capacity of 15 Amperes. 3. High Efficiency: The SMPS boasts an impressive efficiency rating, converting up to 85% of the input power into usable output power. 4. Overload Protection: Integrated circuit protection ensures the power supply can handle short-term overloads without damage. 5. Wide Input Voltage Range: It accepts a wide input voltage range (90V - 265V AC) to accommodate various power sources. 6. Compact Design: With dimensions of approximately 14 x 8 x 3 cm, this power supply is compact enough for most IoT projects and applications. 7. Safety Features: The SMPS comes equipped with short-circuit protection, overvoltage protection, and thermal protection for safe usage. 8. Universal Application: Suitable for various IoT components such as sensors
| Specification | Details |
|---|---|
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 12V ±5% (11.56V - 12.44V) |
| Output Current | 15A ±10% (13.5A - 16.5A) |
| Power Rating | 180W |
| Efficiency | ≥80% |
| Size (LxWxH) | 110mm x 50mm x 25mm |
| Weight | 0.4kg |
| Connectors | DC Output: 2.1mm x 5.5mm (center-positive) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Certifications | UL CE FCC RoHS compliant |
