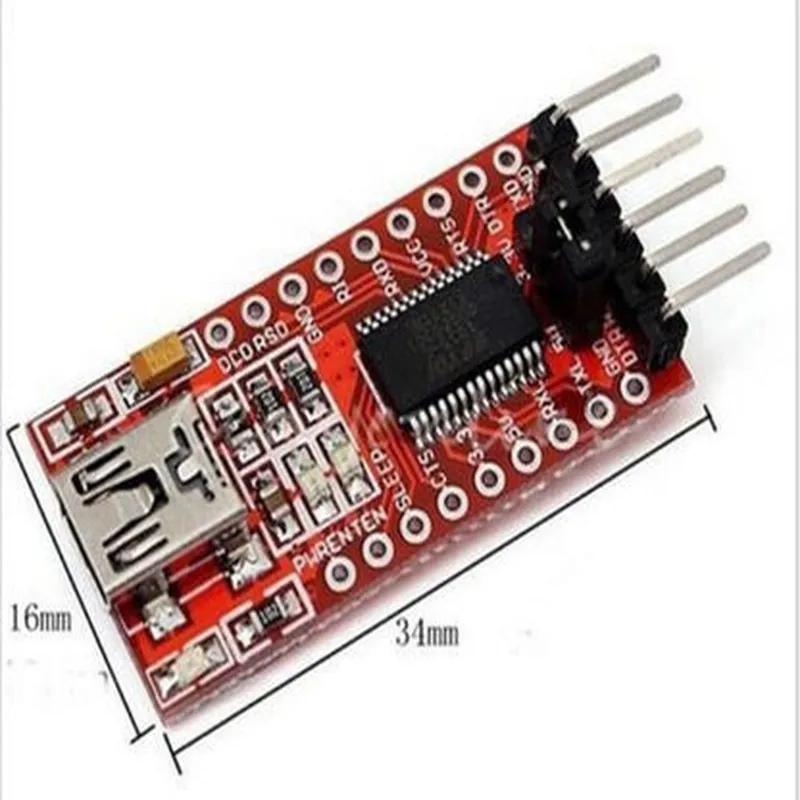

Description: 1. The FTDI (Future Technology Devices International) 232 Mini is a compact USB to TTL (Through-The-Line) converter, allowing easy serial communication between microcontrollers, computers, and various electronic devices. 2. It features an integrated USB interface, eliminating the need for external power supplies or drivers, making it ideal for portable projects and breadboard experiments. 3. The 232 Mini supports both 3.3V and 5V logic levels, allowing users to connect devices with different voltage requirements. 4. It offers bidirectional communication, enabling data transfer between your device (PC or microcontroller) and the connected electronics. 5. This converter boasts a high baud rate of up to 31250 bps, ensuring fast and efficient data transmission in various applications. 6. The 232 Mini is compatible with popular software packages such as Windows, Linux, and MacOS, making it versatile for various operating systems. 7. Its compact size (approximately 1 inch by 0.5 inche
| Specification | Details |
|---|---|
| Interface Type | USB TTL (3V3 5V GND) |
| Chipset | FT230X FT231X or FT232R |
| Speed | Up to 12 Mbps (USB) up to 1 Mbps (TTL) |
| Voltage | TTL: 3.0V - 5.25V USB: 5V |
| Current | TTL: 10mA USB: 100mA |
| Communication Protocols | UART SPI I2C (varies by chipset) |
| LED Indicators | Power TX RX (varies by model) |
| Dimensions | Approximately 19 x 11 x 5 mm |
| Weight | Approximately 6 grams |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +105°C |
| Certifications | CE FCC RoHS compliant |
