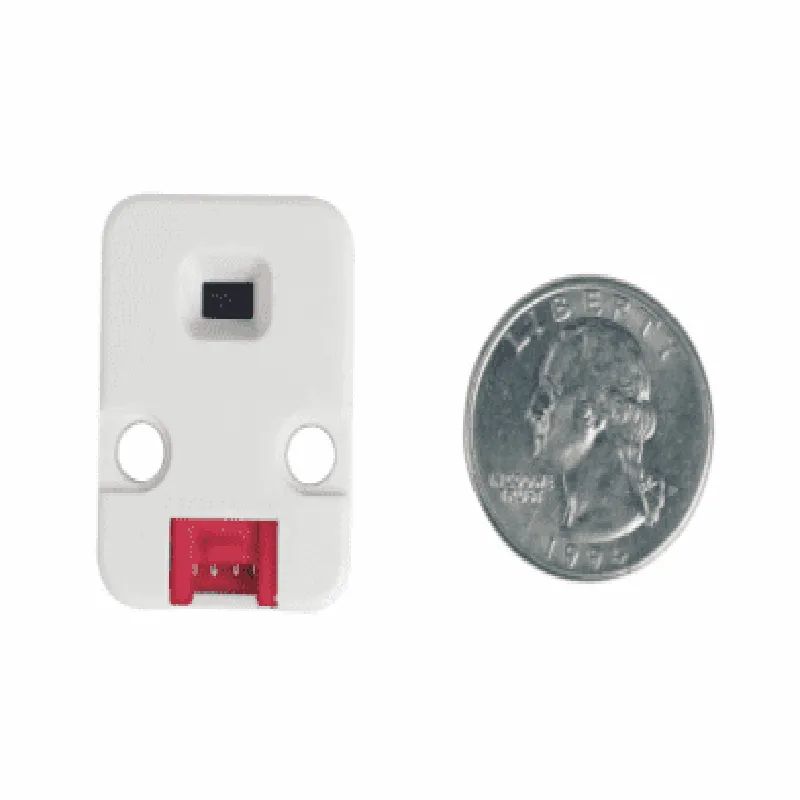

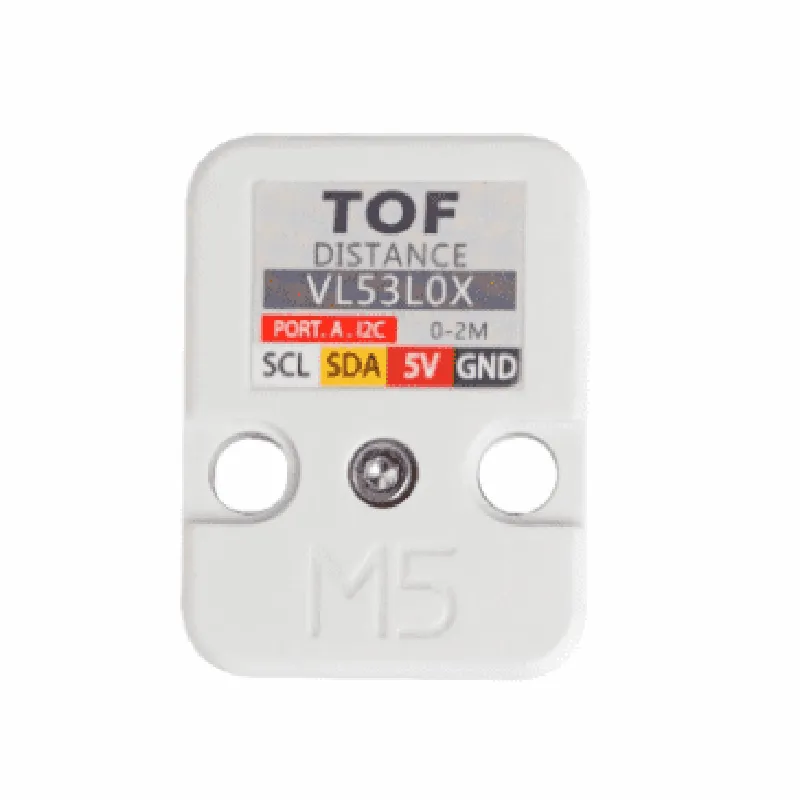

M5Stack Time-of-Flight Ranging Unit (VL53L0X)

Stufin

M5Stack Time-of-Flight Ranging Unit (VL53L0X)

This product is not available in your location yet

Description: 1. Sensor Overview: M5Stack Time-of-Flight Ranging Unit is based on the VL53L0X ToF sensor from STMicroelectronics, delivering accurate distance measurements in the range of 2cm to 4m with a resolution of approximately 1mm. 2. Features: It includes an integrated I2C interface for easy communication, adjustable measurement rate (up to 50Hz), and a built-in digital filter. The sensor operates on a 3.3V power supply and is compatible with both Arduino and MicroPython programming interfaces offered by M5Stack. 3. Versatile Applications: The Time-of-Flight Ranging Unit finds use in various projects, including object detection and tracking, distance measurement for automation systems, and proximity sensing for smart home applications. 4. Easy Integration: The compact size (19mm x 25mm) of the unit makes it ideal for IoT projects where space is a constraint. With M5Stack's intuitive UIFlow platform, users can easily create and customize their projects using a drag-and-drop interface. 5.

View Technical Documentation

Specification	Details
Communication Interface	I2C (SCL/SDA)
Operating Voltage	3V to 3.6V
Supply Current	4mA (active) 0.5μA (standby)
Time-of-Flight Range	Up to 2 meters (6 feet)
Range Accuracy	±1 cm (±0.4 inches) at 1 meter (3.3 feet)
Ambient Light Sensing	Integrated ambient light sensor
Operating Temperature	-20°C to +30°C (with some restrictions)
Package Type	LGA-6 (Leadless GaAs)
Dimensions	3.7mm x 2.1mm x 0.9mm
Weight	0.15g
