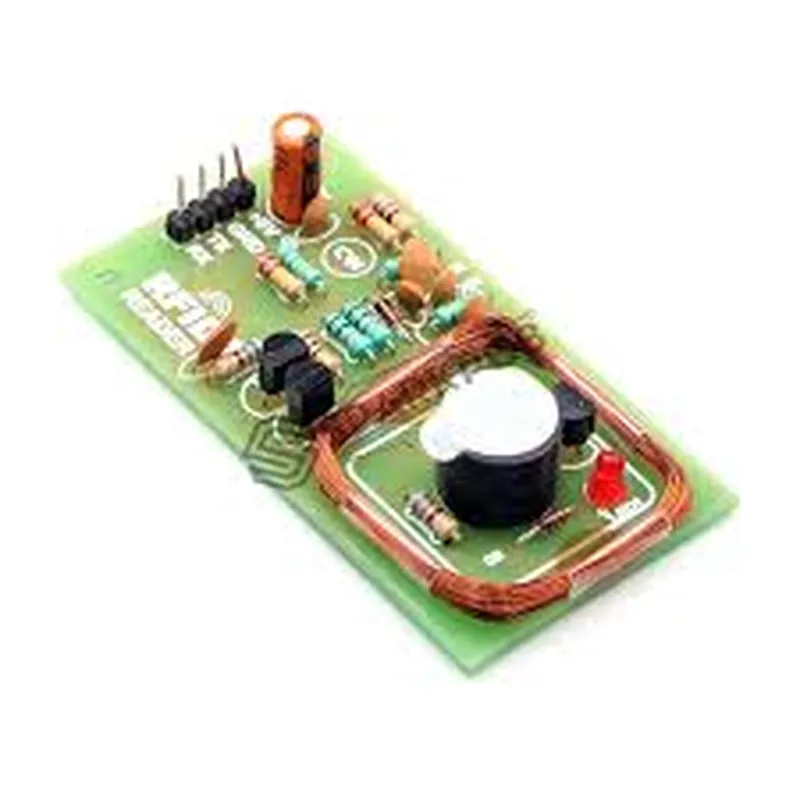

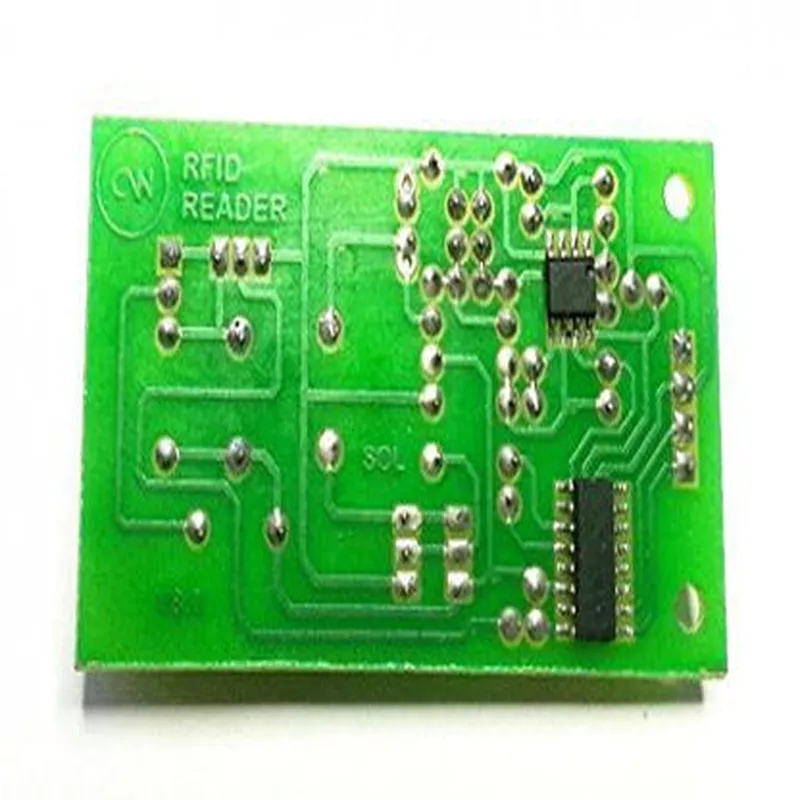

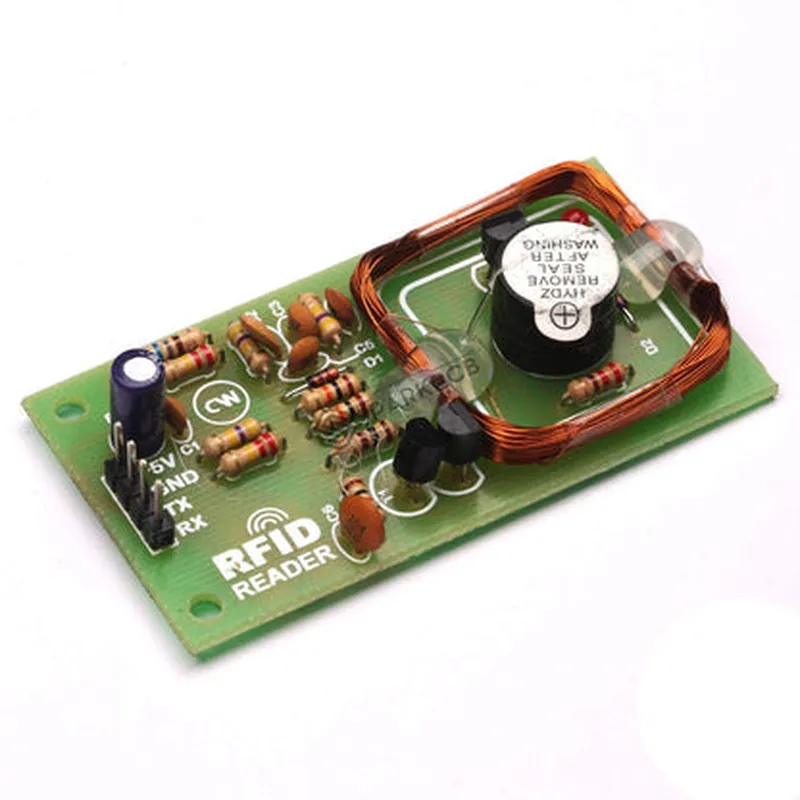

125Khz RFID Reader TTL Module
125Khz RFID Reader TTL Module
125Khz RFID Reader TTL Module

125Khz RFID Reader TTL Module

This product is not available in your location yet

Description: 1. Frequency: Operates at 125 kHz RF frequency, enabling it to read data from RFID tags within its range of up to 10 cm (for standard cards) or up to 3 cm (for HF proximity cards). 2. Interface: Compatible with TTL (Transistor-Transistor Logic) interface, making it easy to connect and interface with microcontrollers, computers, and other digital devices using simple wiring. 3. Compatibility: Supports a wide range of standard RFID tags and cards, including 1KB, 4KB, and 16KB Mifare and DesFire cards, as well as various types of HF (High Frequency) tags like EM4xxxx, INLA2xxx, IS1344, and S50/S70 series. 4. Modular Design: Features a compact design with a PCB size of approximately 38 x 26 mm that can be easily integrated into various applications, such as access control systems, inventory management, or automatic identification in industrial settings. 5. Versatile Communication: Supports multiple communication protocols like ISO14443A/B, MIFARE Classic/Plus, and FeliCa, ensuring com

Specification Details
Specification Detail
Frequency 125 KHz (LF Band)
Interface TTL (3.3V or 5V compatible)
Communication Protocol UART (Default: 9600bps 8N1)
Operating Voltage 3.3V to 5V (regulated voltage required)
Operating Current ≤20mA (Typical)
Power Consumption Approximately 12mA @ 3.3V
Read Range Up to 10cm (depending on tag and reader)
Sensitivity Adjustable (typical sensitivity: -15dBm)
Antenna Type Built-in internal PCB antenna
Package Size Compact approximately 44mm x 22mm
Operating Temperature -20°C to +70°C (Storage: -40°C to +85°C)
Dimension Approximately 44mm x 22mm x 14mm
Weight Approximately 15g
