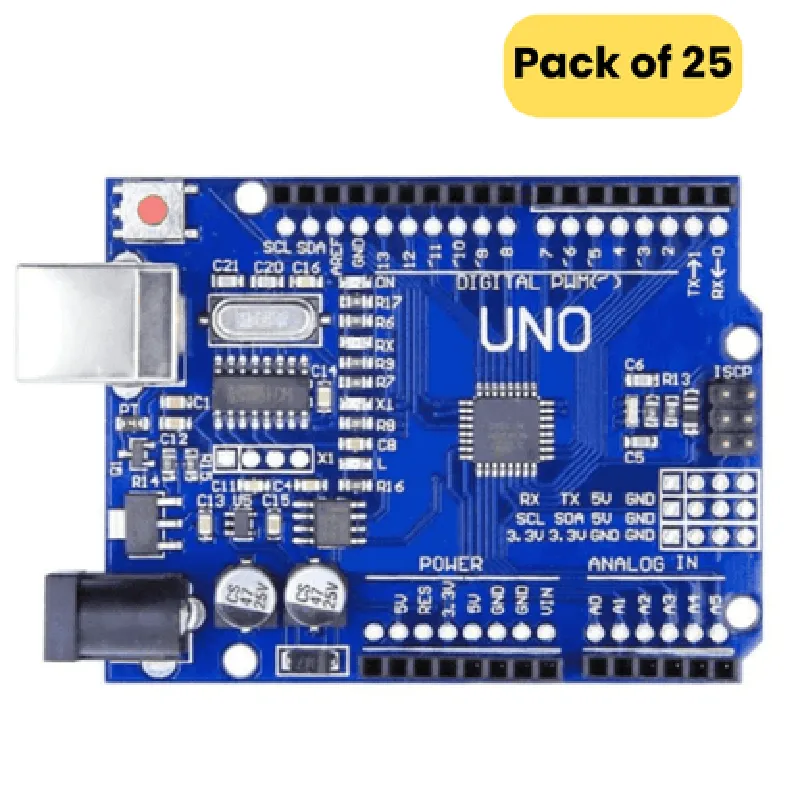

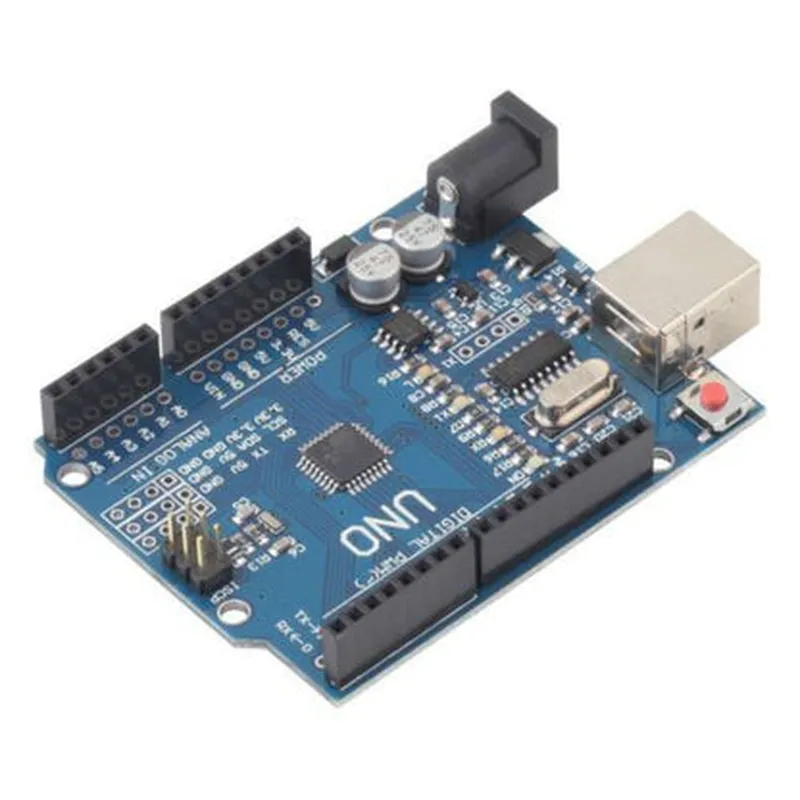

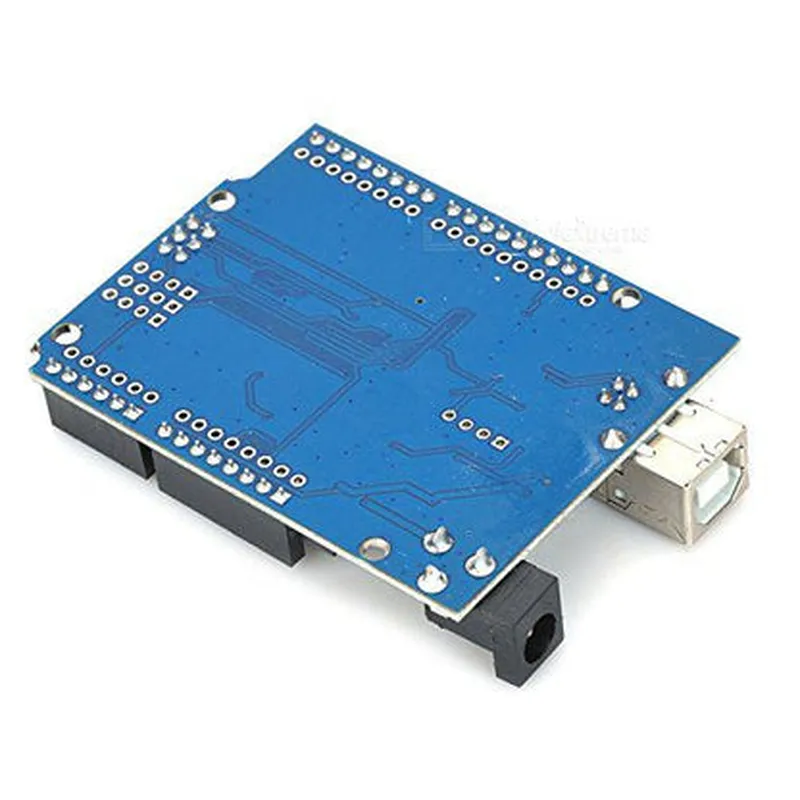

Arduino UNO SMD compatible Board(Pack of 25)

Stufin

Arduino UNO SMD compatible Board(Pack of 25)

This product is not available in your location yet

Description: 1. The Arduino UNO SMD (Surface Mount Device) Compatible Board is a microcontroller kit based on the ATmega328P chip, available in a pack of 25 boards. 2. It is an upgraded version of the traditional through-hole Arduino UNO, featuring SMD components for smaller size and improved manufacturing process. 3. Key features include: 14 digital input/output pins (6 PWM), 6 analog inputs, a 16 MHz quartz crystal, USB connection, ICSP header, and a reset button. 4. It is compatible with the vast Arduino library ecosystem and can be used to build various IoT projects such as home automation systems, weather stations, and sensor networks. 5. The compact size of SMD components simplifies PCB design and assembly in large-scale production environments or when creating smaller form factor projects. 6. Each board comes pre-programmed with the Arduino bootloader, allowing for easy flashing of sketches using the Arduino IDE software. 7. This SMD Arduino UNO board has a power rating of 200mW per u

View Technical Documentation

Specification	Details
Microcontroller	ATmega328P
Clock Speed	16 MHz
Memory	32 KB (ATMega328P Flash)
Input/Output Pins	14 Digital 6 Analog
Analog to Digital	10-bit ADC (6 channels)
Communication	USB (CDC and Serial)
Power	5V DC via USB or external power source
Operating System	Arduino IDE supported
Dimensions	68 x 45 mm
Weight	approximately 25 grams
Packaging	Pack of 25 Boards
