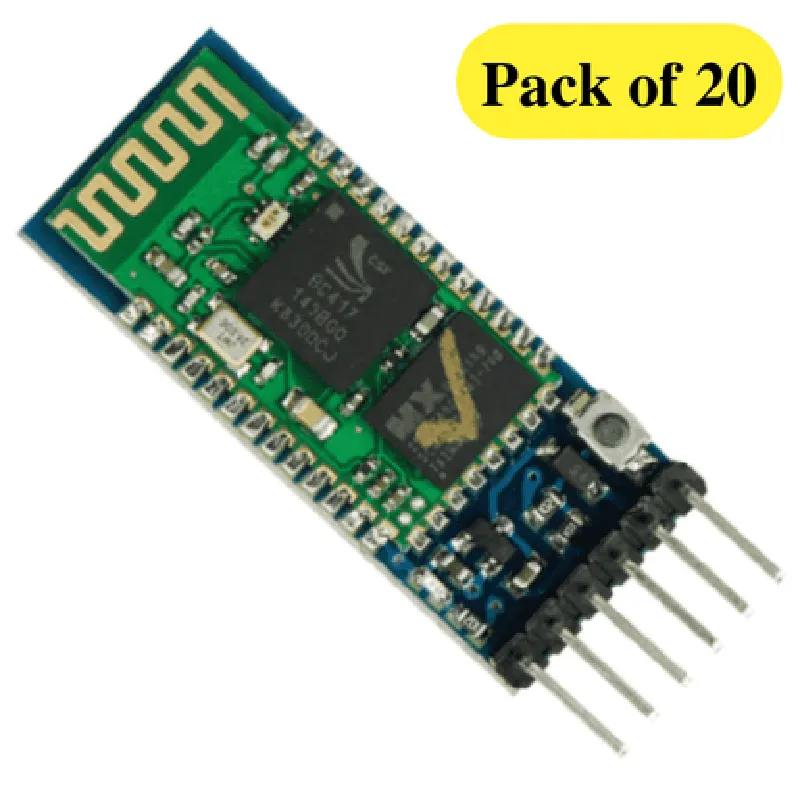

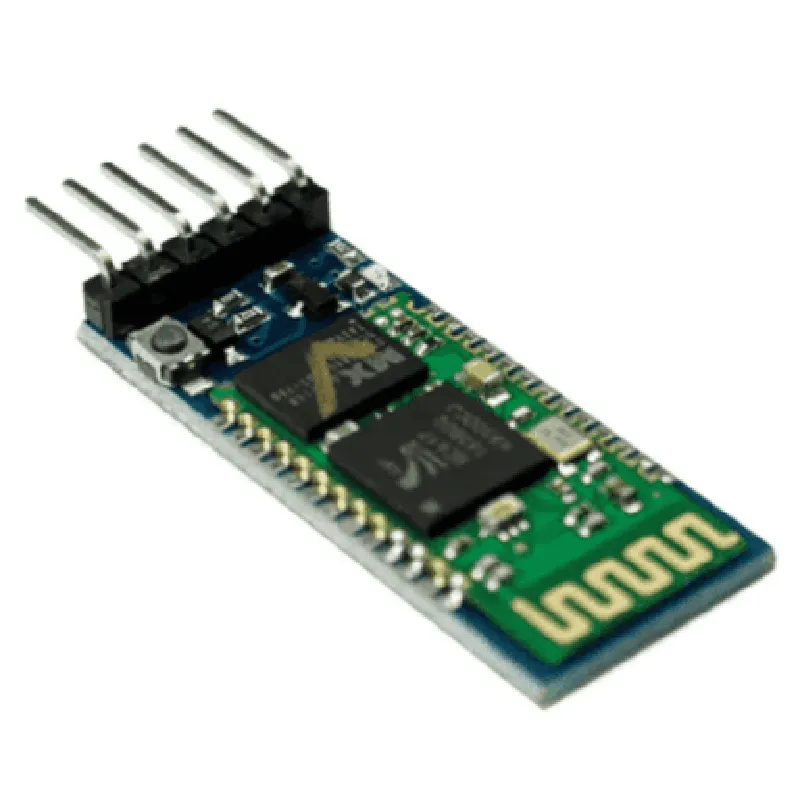

HC-05 Bluetooth Module with with TTL Output (Pack of 20)

Stufin

HC-05 Bluetooth Module with with TTL Output (Pack of 20)

This product is not available in your location yet

Description: HC-05 Bluetooth Module with TTL Output (Pack of 20): 1. Bluetooth Version and Range: These modules support Bluetooth version 4.0 and have a working range of approximately 10 meters or 33 feet, making them ideal for short-range wireless applications. 2. Compatibility: The HC-05 is compatible with Android, iOS devices, and computers running Windows, Mac OS, and Linux operating systems. It can be used with various applications like Arduino, Raspberry Pi, etc. 3. Flexible Operation Modes: This Bluetooth module operates in both slave (Follower) and master (Controller) modes, allowing users to choose the best configuration for their specific IoT projects. 4. Customizable Baud Rates: Users can set custom baud rates from 1200bps to 57600bps using AT commands through a serial connection or the UART interface. 5. Power Supply and Consumption: The HC-05 modules have a voltage input range of 3V~5.5V DC. They consume approximately 19mA when in transmitting mode and 8mA during receiving, makin

View Technical Documentation

Specification	Details
Specification	Detail
Module Type	Bluetooth 2.0+EDR (Economic Data Rate)
Interface	TTL (3-pin) UART and 6-pin serial port
Operating Frequency	2.4 GHz
Transmission Power	Up to +20 dBm
Communication Range	Up to 30 feet (10 meters)
Data Transfer Rate	Up to 3 Mbps
Device Support	Master and Slave modes
Configuration	AT commands for configuration
Voltage Requirements	4.7-6V DC with a voltage regulator
Current Consumption	Typically around 30 mA
Dimensions	Small form factor easy to integrate
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
