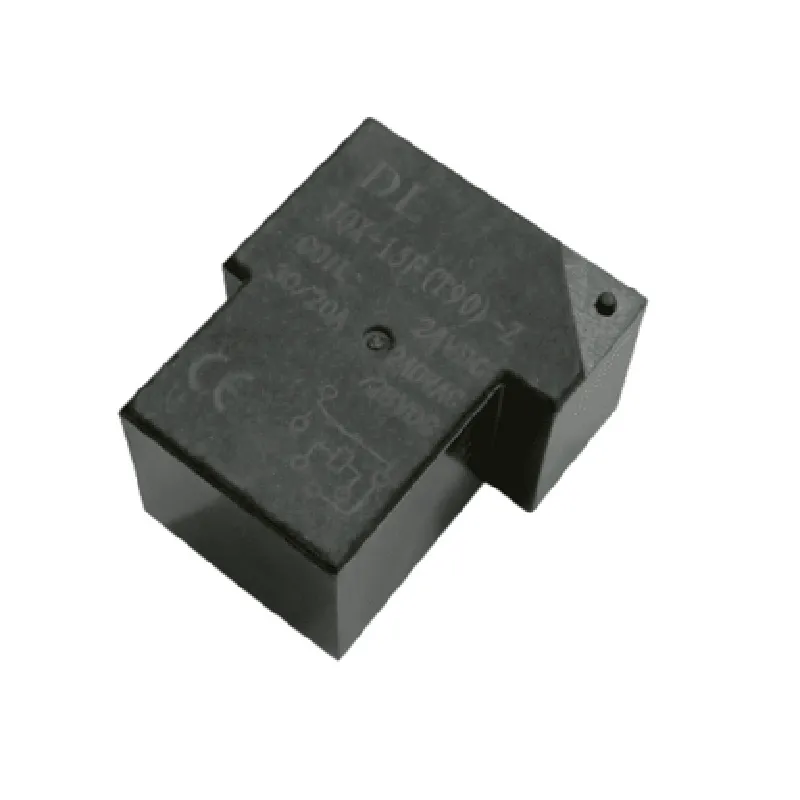

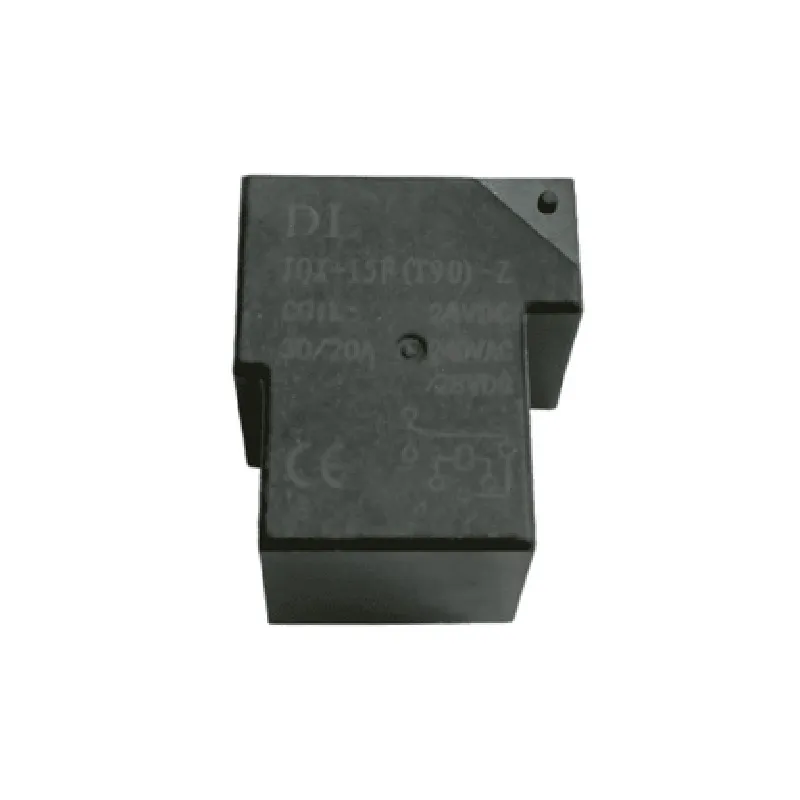

Description: 1. The JQX-15F(T90) is a DC 24V 6 Pin Power Relay with a coil voltage of 15V AC or DC, suitable for various Internet of Things (IoT) projects. 2. It comes with six pins: NO (Normally Open), NC (Normally Closed), COM (Common), VCC (Power), GND (Ground), and C (Coil). 3. The relay has a maximum current rating of 10A and a contact resistance below 5 mΩ, ensuring reliable switching for most applications. 4. With a compact size (38mm x 26.9mm x 12.6mm) and low power consumption, it's perfect for space-constrained projects or those with minimal power requirements. 5. The relay's silent operation makes it suitable for applications where noise is undesirable, such as home automation systems or industrial control panels. 6. Its high reliability and long life span are achieved through the use of high-quality materials and robust construction, ensuring smooth operation even under heavy usage. 7. The JQX-15F(T90) is compatible with various microcontroller boards (e.g., Arduino, Raspberry Pi
| Specification | Details |
|---|---|
| Part Number | JQX-15F(T90) |
| Type | Power Relay |
| Voltage Rating | DC 24V |
| Coil Current | 110mA @ 24V (Typ.) |
| Contact Configuration | 6 Pin (2 NO + 2 NC + Common) |
| Switching Capacity | 10A/250VAC Resistive and Inductive Loads |
| Operating Temperature | -40°C ~ +85°C (Ambient) |
| Insulation Voltage | 600Vrms AC |
| Standby Current | ≤50µA @ 24V (Typ.) |
| Release Time | ≤15ms (Typ.) |
