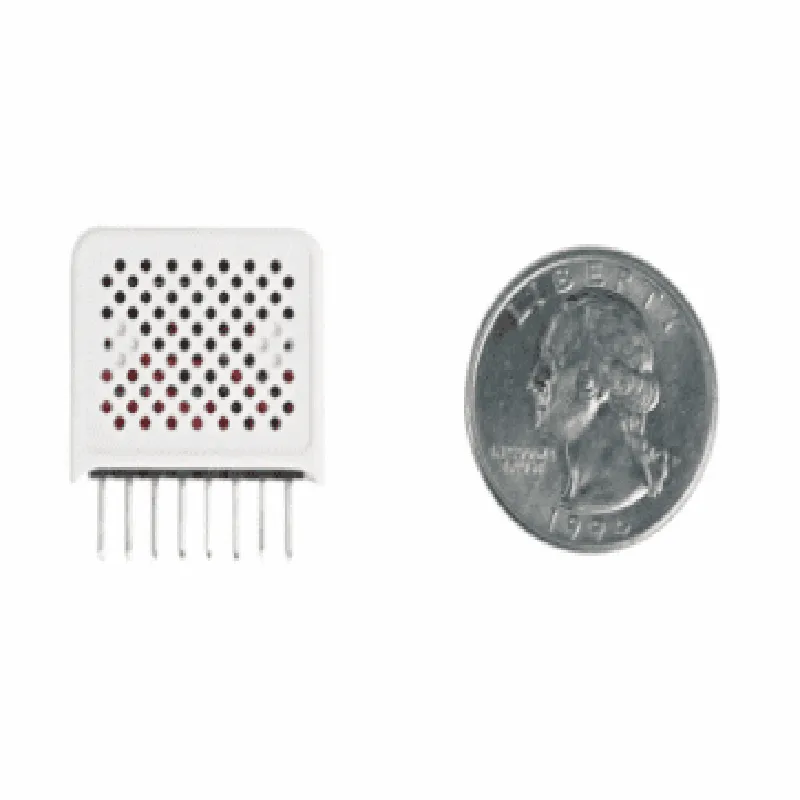

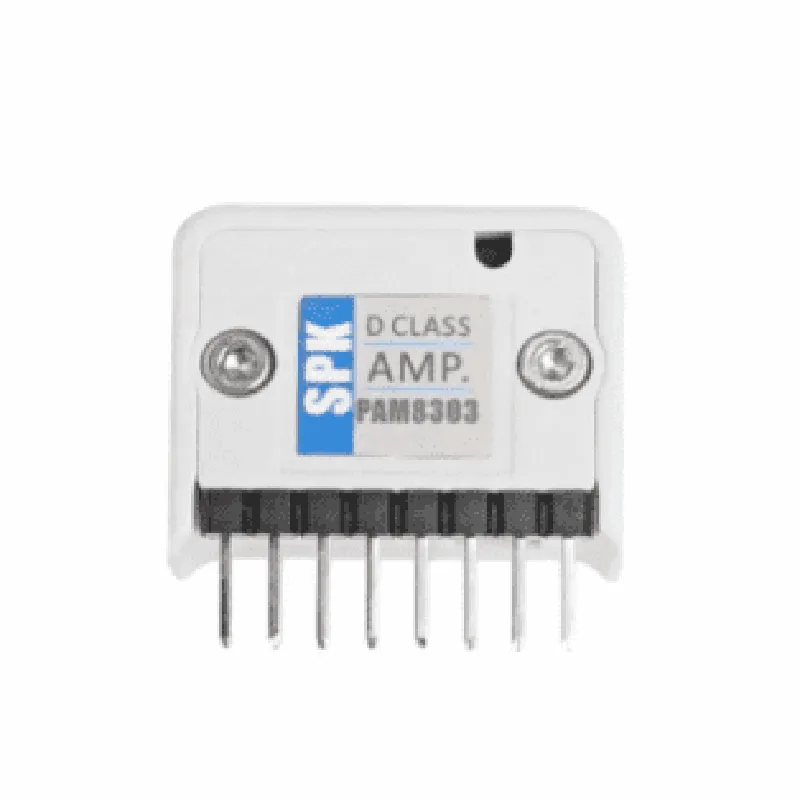

M5 StickC Speaker Hat (PAM8303)

This product is not available in your location yet

Description: 1. M5 StickC Speaker Hat is an IoT add-on board designed for the M5Stack platform, featuring a built-in PAM8303 class D stereo audio amplifier chip and two 8Ω speakers. 2. Key Features: It supports both MicPython and Arduino programming platforms, providing versatile options for users. The speaker hat can deliver high-quality sound with low distortion and minimal power consumption. 3. Versatility: This add-on board is ideal for various applications such as multimedia projects, home automation systems, voice assistant devices, and educational purposes. 4. Easy to Use: Users simply need to stack it on the M5Stack BaseBoard or CoreInk, making installation straightforward and quick. The Hat also comes with a convenient screw terminal for external connections. 5. Programmable Control: Users can control volume levels and audio output through software using the M5Stack platform's APIs. Additionally, it supports various communication interfaces such as I2S, SPI, UART, and I2C. 6. Unique

View Technical Documentation

Specification	Details
Product Name	M5 StickC Speaker Hat
Speaker Driver	Class-D Amplifier
Frequency Response	20Hz - 20kHz
Sound Pressure Level	Up to 85 dBA
Power Consumption	0.25W (typical)
Input Voltage	3V to 6V
Output Power	2.5W (max) 1.5W (rated)
Speaker Impedance	4 Ohm 8 Ohm or 16 Ohm
Dimension	40mm x 20mm x 6mm (LxWxH)
Weight	Approximately 5g
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
