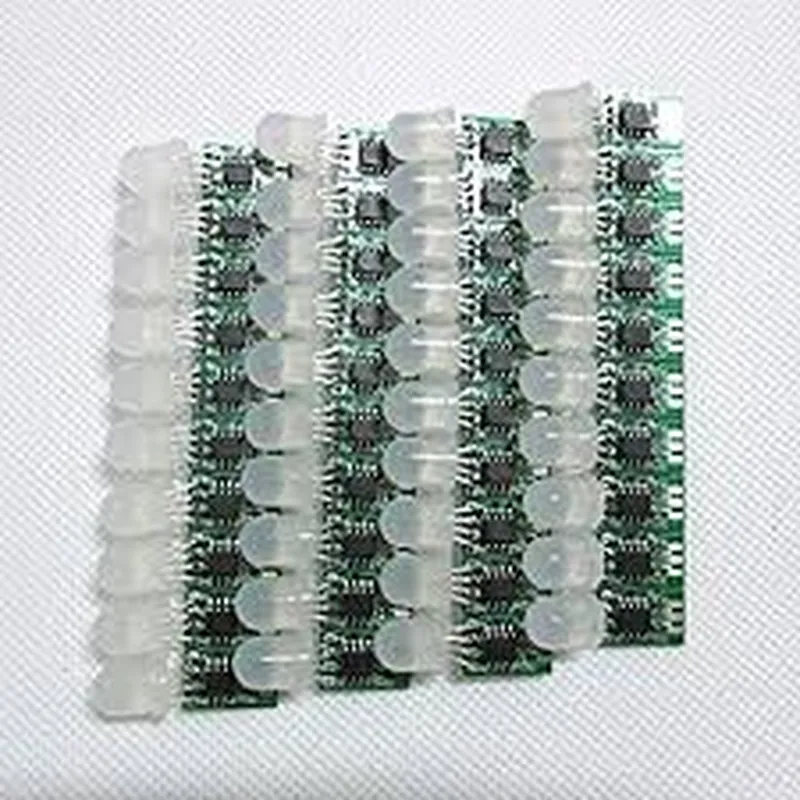

Description: 1. The 5V RGB LED Node Module is a versatile and easy-to-use component designed for creating customizable multicolor lighting effects in Internet of Things (IoT) projects. 2. Components: It consists of an RGB LED, a 330 Ohm resistor, and an integrated circuit (IC) driver on a single PCB board with a screw terminal connection interface. 3. Power Requirements: The module operates on a 5V DC power supply and can be powered directly from Arduino or other microcontrollers via the terminal connections. 4. Versatile Control: The RGB LED Node Module supports various color control methods like Analog Pin control, PWM (Pulse Width Modulation) control through 3 separate pins for Red, Green, and Blue channels, and digital pin control using a library such as FastLED or NeoPixel. 5. Connection: Users can easily connect the module to their microcontroller using jumper wires and the screw terminal connections. The RGB LED's anode is connected to the power source, while the cathodes are connected
| Specification | Details |
|---|---|
| Power Requirements | 5V DC 30mA (typical) |
| RGB LED Type | Common Anode (Red Green Blue) |
| Color Mode | Static/Analog |
| Dimming Range | 0-100% (PWM controlled) |
| LED Current Limiting | Integrated 330Ω resistors per color |
| Microcontroller | ESP32-based (optionally available) |
| Communication Ports | I2C UART SPI (depending on module variant) |
| Operating Temperature | -20°C to 85°C (industrial range) |
| Storage Temperature | -40°C to 125°C |
| Humidity Range | 0-90% RH (non-condensing) |
| Certifications | CE FCC RoHS compliant |
| Package Dimensions | approximately 4.5 cm x 3.5 cm x 1.8 cm |
