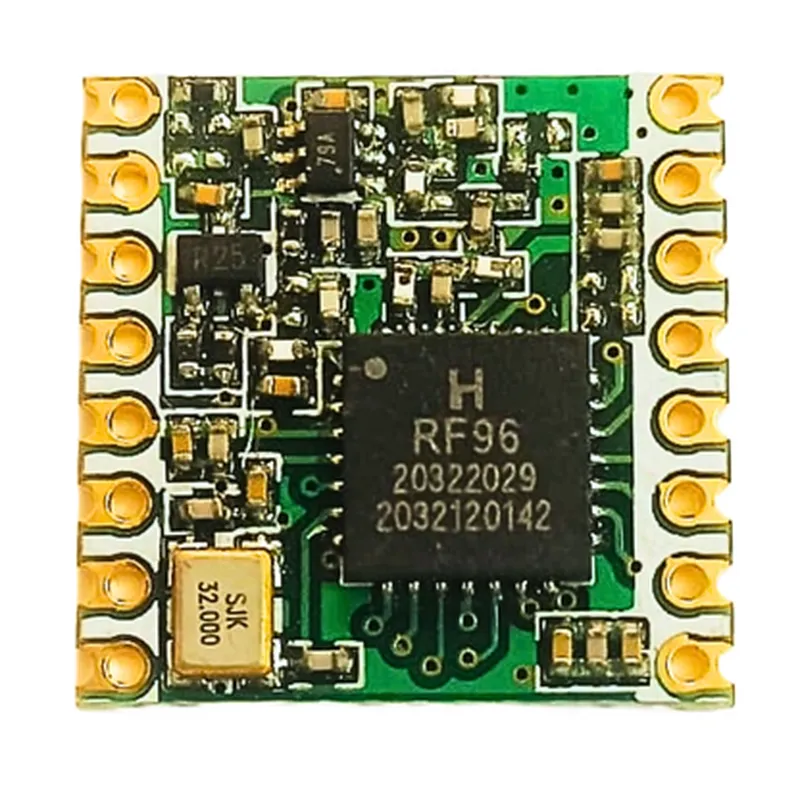

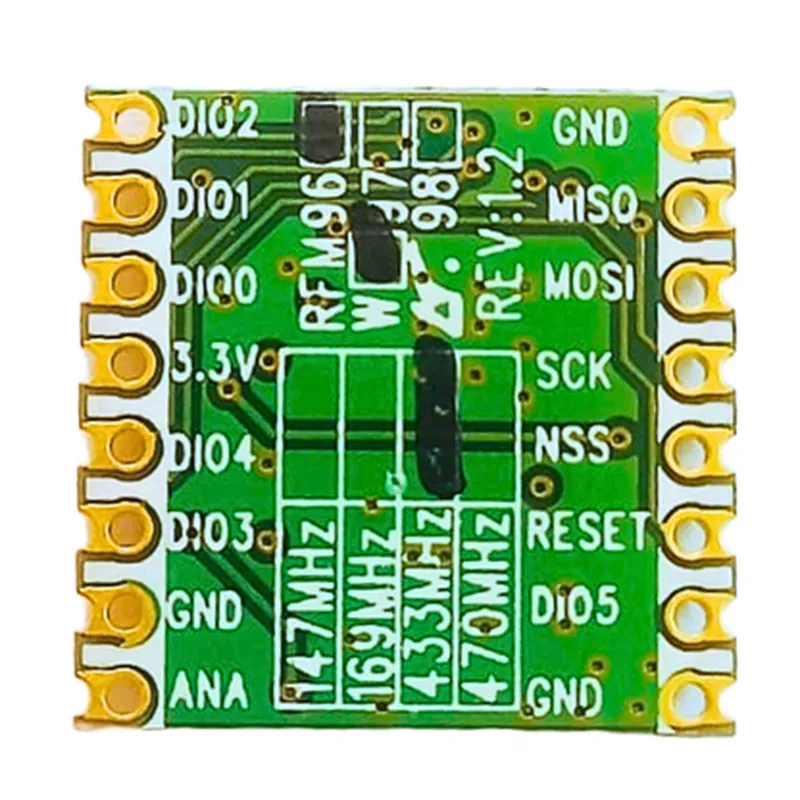

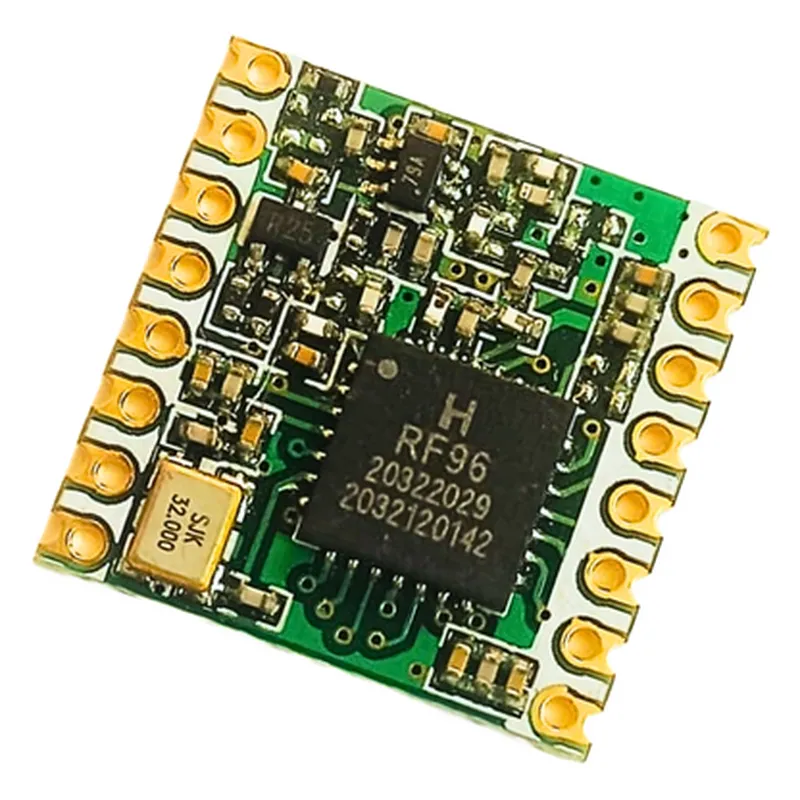

Description: 1. RFM96W is a long-range, low-power wireless radio transceiver based on the LoRa (Long Range) modulation technology. 2. It operates in the ISM (Industry, Science, and Medical) band of frequencies, specifically at 868 MHz for European applications or 915 MHz for North American use. 3. The RFM96W features a compact form factor, making it suitable for various IoT projects, including weather stations, smart home devices, and remote sensor networks. 4. LoRa communication technology provides long-range wireless connectivity with minimal power consumption, making it ideal for applications where battery life is crucial. 5. The transceiver supports both LoRa and FSK (Frequency Shift Keying) modulation schemes, giving users more flexibility in their IoT projects. 6. RFM96W features an on-chip crystal oscillator that can be used to generate the required frequency for transmitting data wirelessly. 7. It offers adjustable power levels (up to +24dBm), enabling better control over transmissio
| Specification | Details |
|---|---|
| Frequency | 433 MHz |
| Modulation | LoRa (Long Range) |
| Data Rate | Up to 300 kbps |
| Range | Up to 10 km (line of sight) |
| Power Consumption | Low power consumption: 6.5 mA (TX) 4.8 mA (RX) |
| Antenna Interface | Antenna Pad (RF connector) |
| Interface | SPI/I2C/SMBUS |
| Dimensions | 25 mm x 18 mm x 3 mm |
| Weight | Approximately 6 grams |
| Operating Voltage | 1.8 V to 3.6 V |
