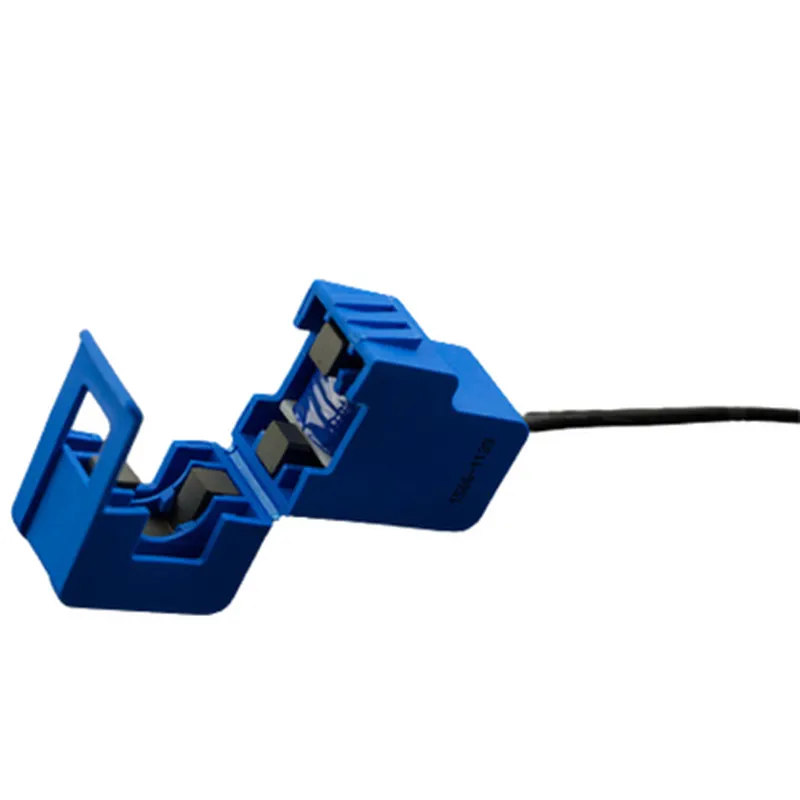

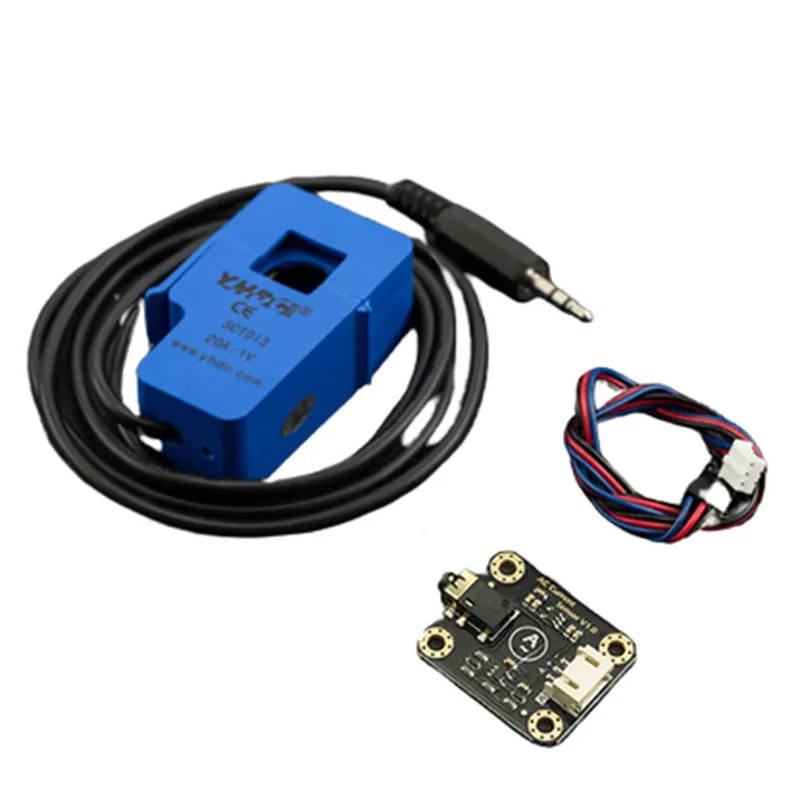

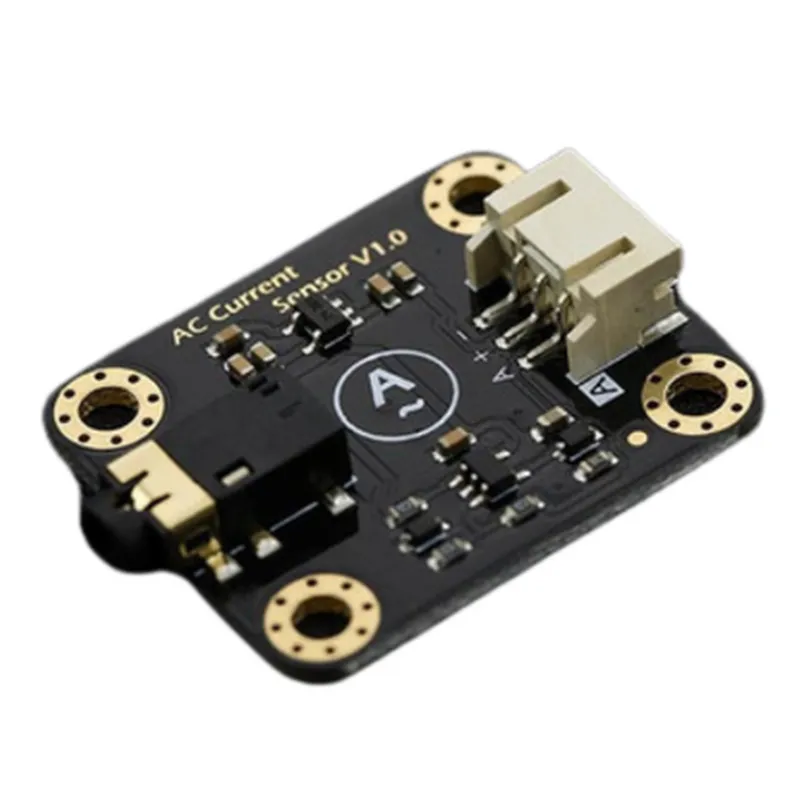

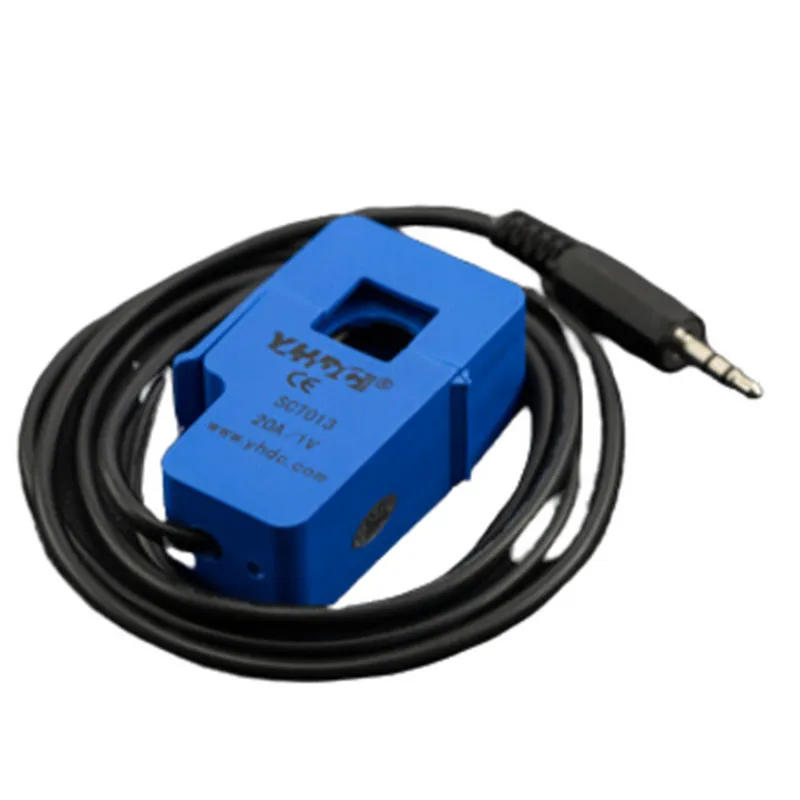

Description: 1. Overview: Gravity is an analog AC current sensor designed to measure up to 20 Amperes of alternating current. It provides accurate and reliable current measurements in various industrial, automotive, and monitoring applications. 2. Design: The compact sensor features a rugged design with a protective epoxy coating for use in harsh environments. It has a standard JST XH connector for easy installation and wiring. 3. Measuring Principle: Utilizing the Hall Effect, Gravity's sensor measures the magnetic field generated by current flowing through a conductive core or wire wrapped around it. This results in a linear voltage output proportional to the current being measured. 4. Output: The sensor offers an adjustable gain configuration with a default value of 1V/A for easy calibration and integration into various data acquisition systems. Its analog voltage output can be read by ADCs or other devices capable of measuring millivolts. 5. Accuracy and Linearity: With a high accuracy (±2
| Specification | Details |
|---|---|
| Operating Voltage | 3.3V to 5V |
| Measurement Range | ±20A AC current measurement range |
| Accuracy | ±1% accuracy for DC ±2% for AC |
| Resolution | 100mV/LSB (0.1A) |
| Operating Temperature | -40°C to +85°C |
| Sensitivity | Adjustable via external resistor |
| Interface | Analog output (0-5V linear output) |
| Dimensions | 30mm x 15mm x 10mm |
| Weight | Approximately 7g |

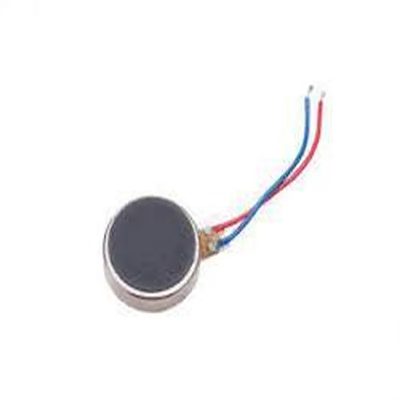

1. Coin Type Micro Vibration ...

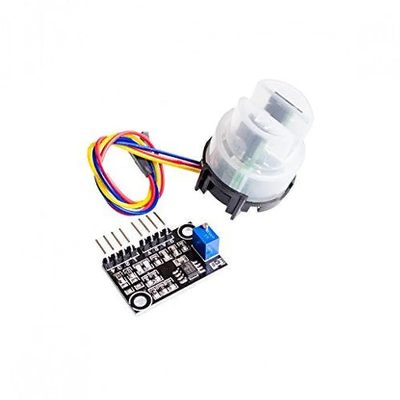

1. A Turbidity Sensor is an I...

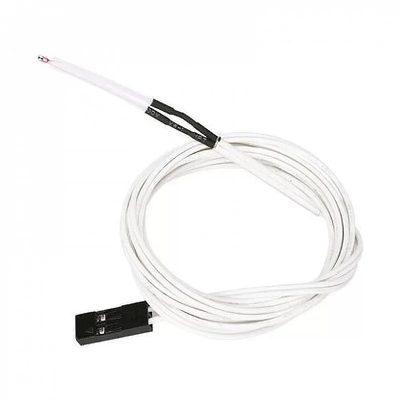

1. The 100K Ohm NTC 3950 Ther...
1. Hall Effect Sensors (HES):...

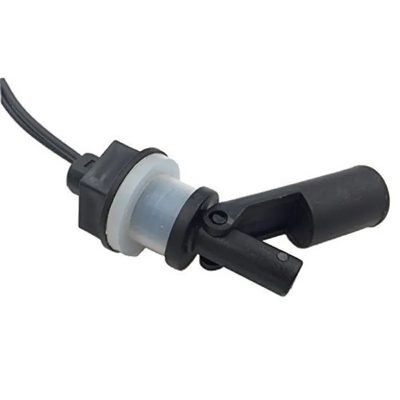

1. The Magnetic Float Sensor ...

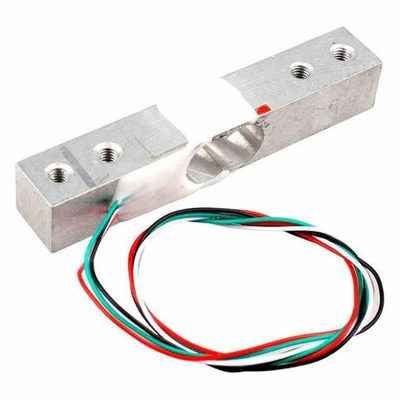

1. A 10kg Load Cell is an ele...

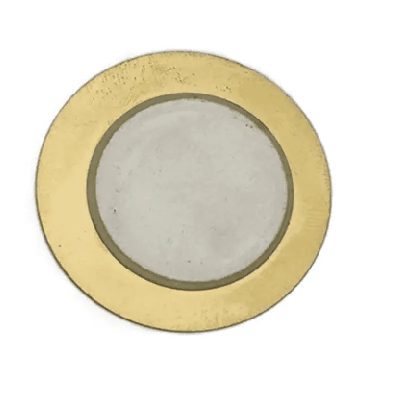

1. This is a 35mm diameter pi...
