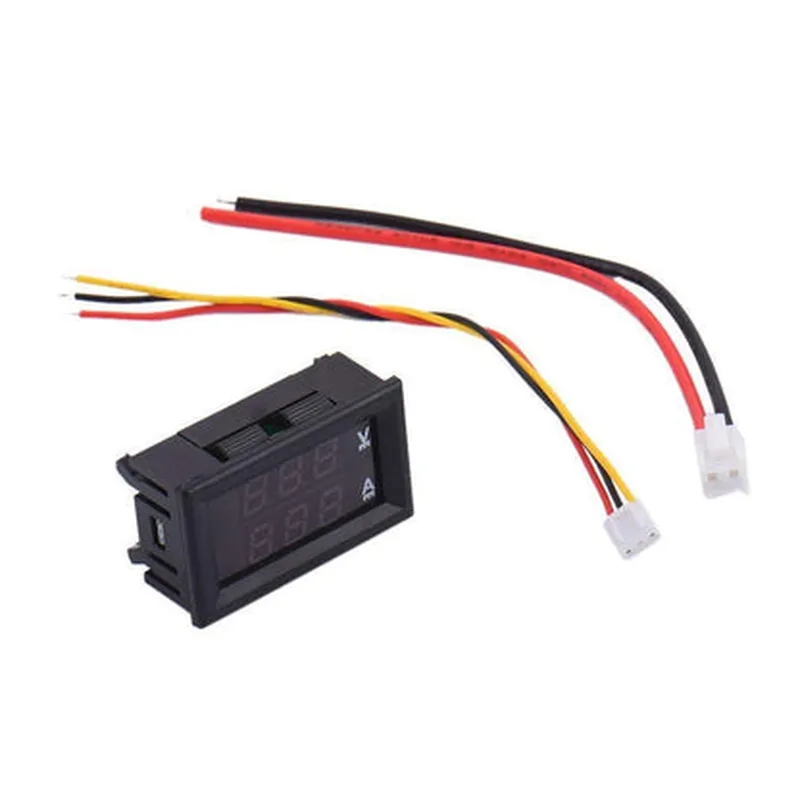

Description: 1. Overview: The Digital Voltmeter (0-100V) and Ammeter (10A) Dual LED Voltage Current Measurement Module is a versatile and compact device designed for measuring both voltage and current in various IoT applications. 2. Specifications: It can measure voltage up to 100V and current up to 10A with an accuracy of ±3%. The module has a wide operating temperature range (-20°C to +70°C) and is suitable for use in industrial, automotive, and laboratory environments. 3. Display: Two separate LED displays indicate the measured voltage and current values, providing easy and instant visual access to the data. Each display shows the value in digits, as well as a corresponding bar graph for an intuitive understanding of the measurements. 4. Measurement Modes: The module supports multiple measurement modes including DC voltage, AC voltage (RMS), DC current, and AC current (RMS). This flexibility makes it ideal for diverse applications across various industries. 5. Protection: Integrated over-vo
| Specification | Details |
|---|---|
| Measurement Range | 0-100V 0-10A |
| Display Resolution | 3-digit LCD display |
| Voltage Measurement Accuracy | ±1% of reading + 2 digits |
| Current Measurement Accuracy | ±2% of reading |
| Sampling Rate | 20 samples/second |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Power Supply | 9-32V DC 500mA max |
| Connectors | Screw terminals for voltage and current measurement |
| Dimensions | approximately 6x4.5x1.2 inches (15x11.5x3 cm) |
| Weight | approximately 250 grams (8.8 oz) |
