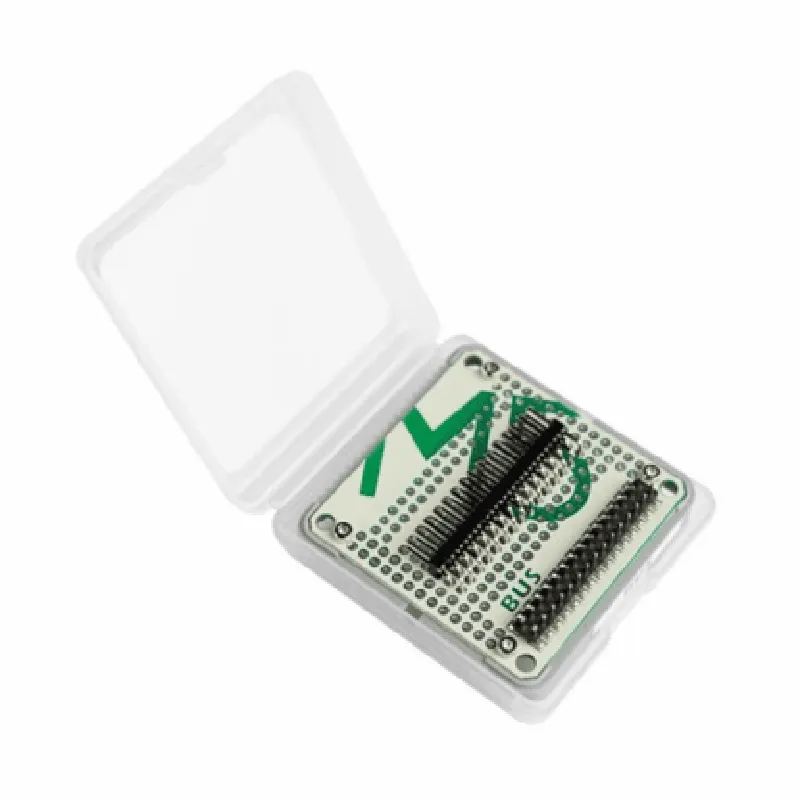

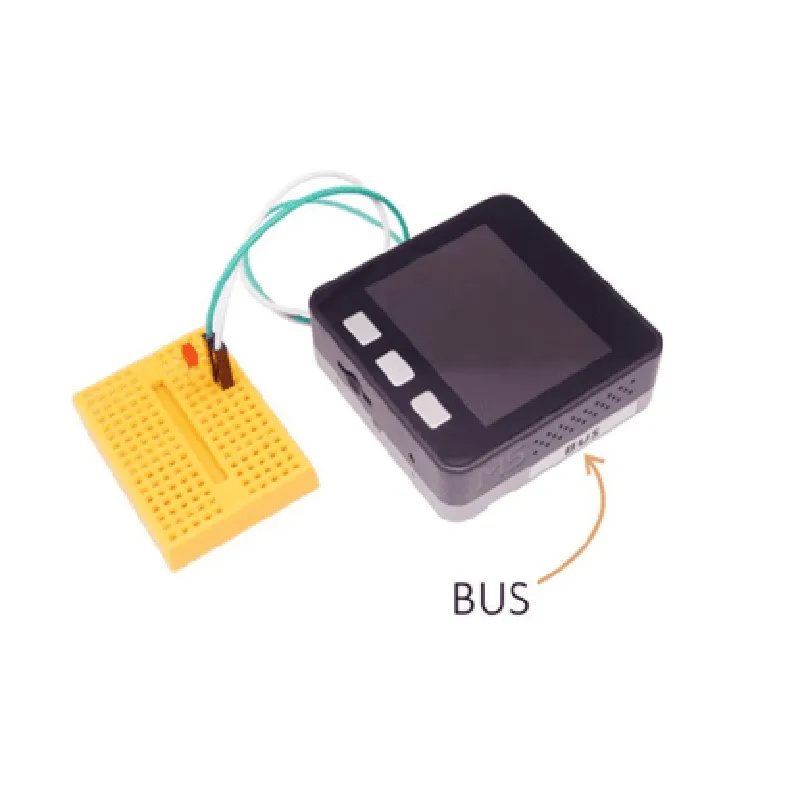

M5 Stack BUS Module

This product is not available in your location yet

Description: 1. The M5Stack Bus Module is an expansion module designed for the M5Stack open-source IoT development platform. It provides additional connectivity options and functionality. 2. This module features a standard I²C bus interface, enabling easy integration with various sensors, actuators, or other modules via a simple two-wire connection. 3. One unique benefit is the presence of an SD card reader, allowing users to store and access large datasets directly from the module without requiring additional hardware. 4. Additionally, the module offers an RTC (Real Time Clock) with battery backup, ensuring accurate timekeeping even during power loss or system reboots. 5. Users can take advantage of two digital input pins and two digital output pins for customizable I/O control. 6. The M5Stack Bus Module features a powerful onboard microcontroller that supports various programming languages, making it suitable for both beginners and advanced users. 7. Its compact size and compatibility with

View Technical Documentation

Specification	Details
Interface	I2C (SCL and SDA)
Module Type	Bus Expansion Module
MCU	ESP32
Operating Voltage	3.3V
Power Consumption	20mA (Typical) 50mA (Max)
Dimensions	30mm x 23mm x 2.5mm
Weight	6g
Operating Temperature	-40°C to 85°C
Storage Temperature	-40°C to 125°C
Relative Humidity	20% to 80% (Non-condensing)
