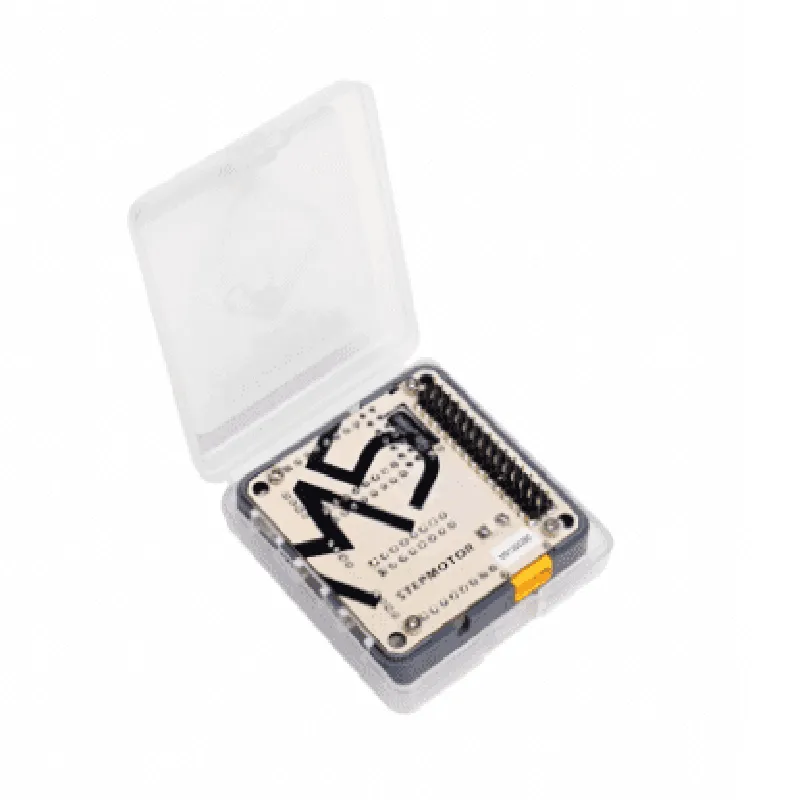

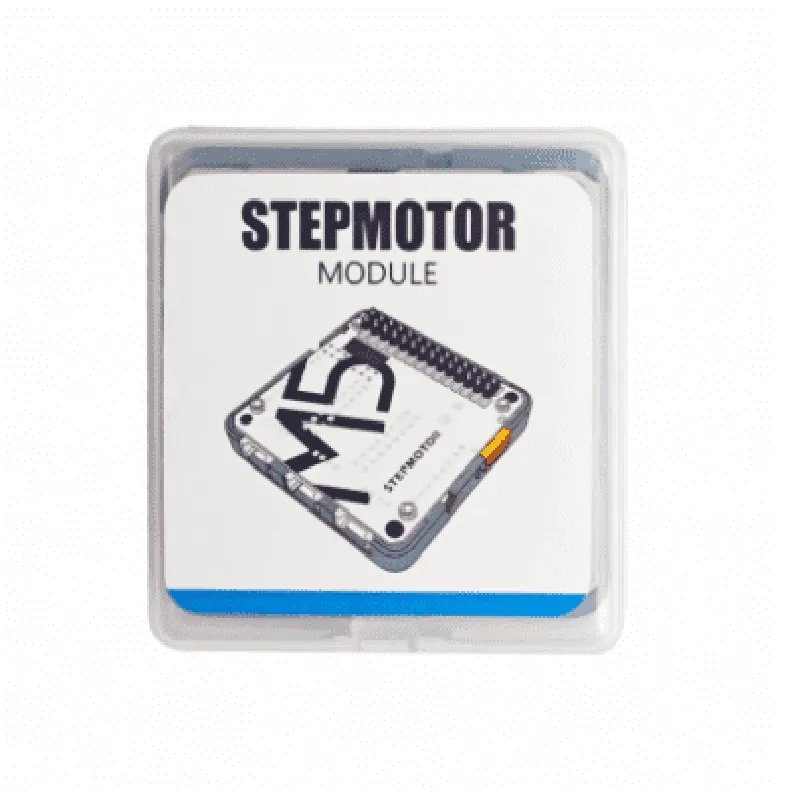

M5Stack Stepmotor Module with MEGA328P (DRV8825)

This product is not available in your location yet

Description: 1. The M5Stack Step Motor Module with MEGA328P (DRV8825) is an expandable IoT development kit designed for step motor control applications using the popular Arduino programming language. 2. It comprises a DRV8825 step motor driver IC, an MEGA328P microcontroller, and a step motor with UART/Serial communication interface, enabling easy control and configuration through the M5Stack Core2 or other compatible devices. 3. This module supports full-step, half-step, and microstep motor configurations to provide high precision positioning and speed control options. 4. Users can utilize various libraries such as AccelStepper and Adafruit Motor Shield library with the Arduino IDE for easy integration of motor control functionality into their projects. 5. The MEGA328P microcontroller provides ample memory (32 KB flash, 16 KB SRAM) and processing power for complex motor control sequences and data processing tasks. 6. It also comes with multiple input/output pins for connecting additional sen

View Technical Documentation

Specification	Details
Microcontroller	ATmega328P
Step Motor Driver	DRV8825
Interface	UART USB I2C SPI (with adapter)
Operating Voltage	4.8V - 40V
Current Rating	Up to 1.2A per phase
Step Angle	0.9°
Resolution	256 microsteps
Max Speed	Up to 10000 steps/second
Torque	High torque output
Heat Sink	Built-in heat sink for improved cooling
Dimensions	35mm x 25mm x 13mm (module only)
Weight	Approximately 10g
