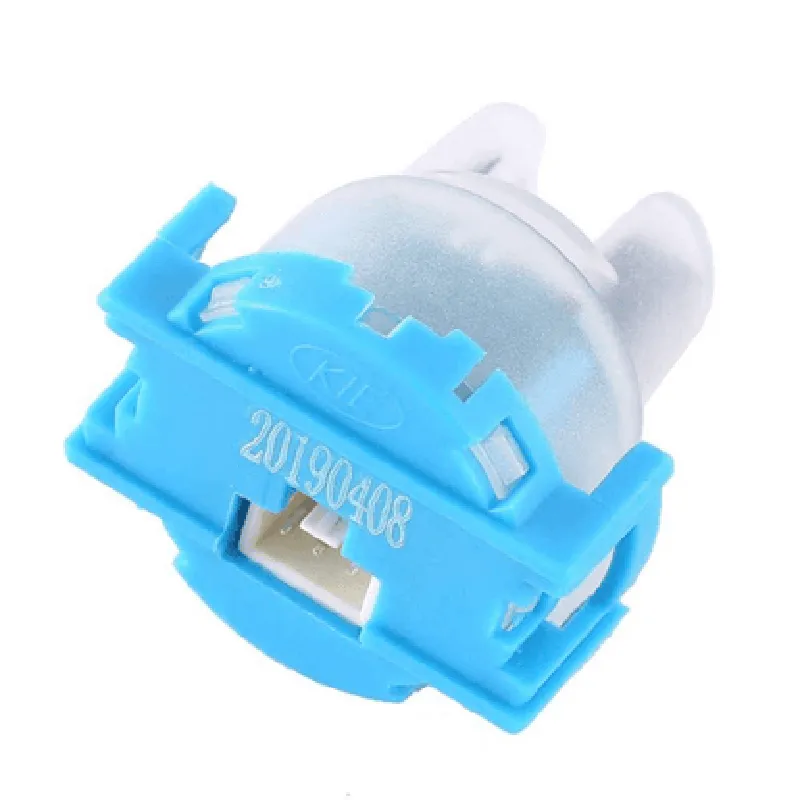

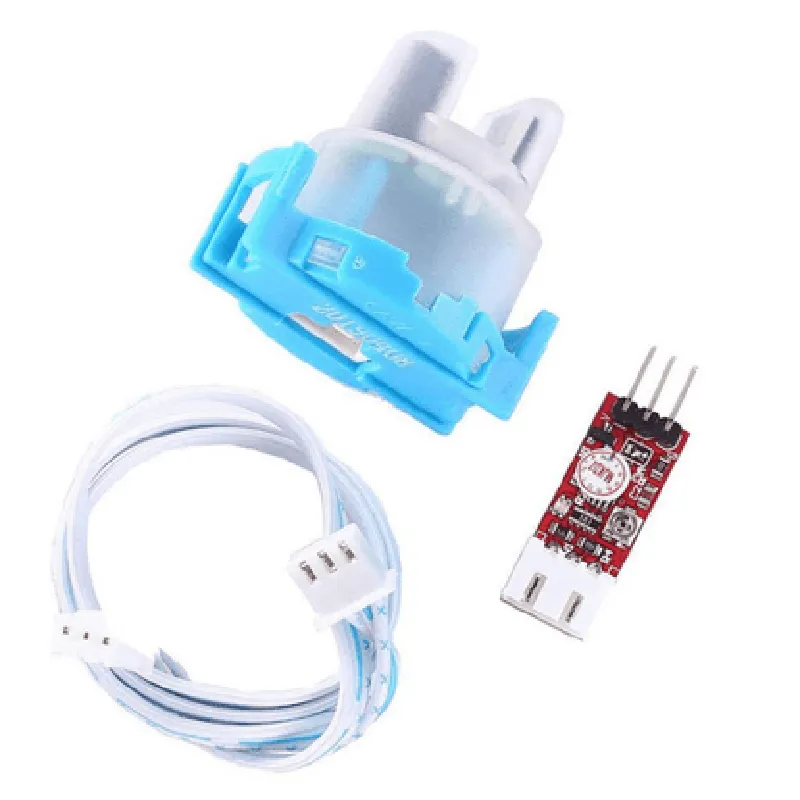

Description: 1. Overview: Turbidity Sensor is an IoT component designed to measure the clarity or cleanliness of water by determining the amount of suspended particles. It comes with an Arduino Nano R3 development board for easy integration into Arduino projects. 2. Compatibility: This sensor is compatible with the Arduino platform and can be used with various Arduino boards, including the Nano R3. It requires minimal external components, making it a convenient choice for DIY projects. 3. Working Principle: The turbidity sensor uses light scattering technology to measure the degree of cloudiness or turbidity in water samples. By analyzing the amount of light scattered by particles present in the water, the sensor determines the turbidity level. 4. Sensor Module: The sensor module consists of a photodiode and an infrared LED. When water passes through the sensor, the infrared light is scattered by suspended particles, which changes the amount of light detected by the photodiode. 5. Measuring Ra
| Specification | Details |
|---|---|
| Sensor Type | Turbidity sensor |
| Measurement Range | 0-1000 NTU (Nephelometric Turbidity Units) |
| Resolution | 0.1 NTU |
| Accuracy | ±2% |
| Supply Voltage | 5V (via Arduino Nano R3) |
| Current Consumption | <10mA |
| Sensor Interface | Analog output (0-5V) |
| Arduino Compatibility | Compatible with Arduino Nano R3 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Humidity Range | 10-90% |
| Dimension (LxWxH) | 35mm x 25mm x 15mm |
